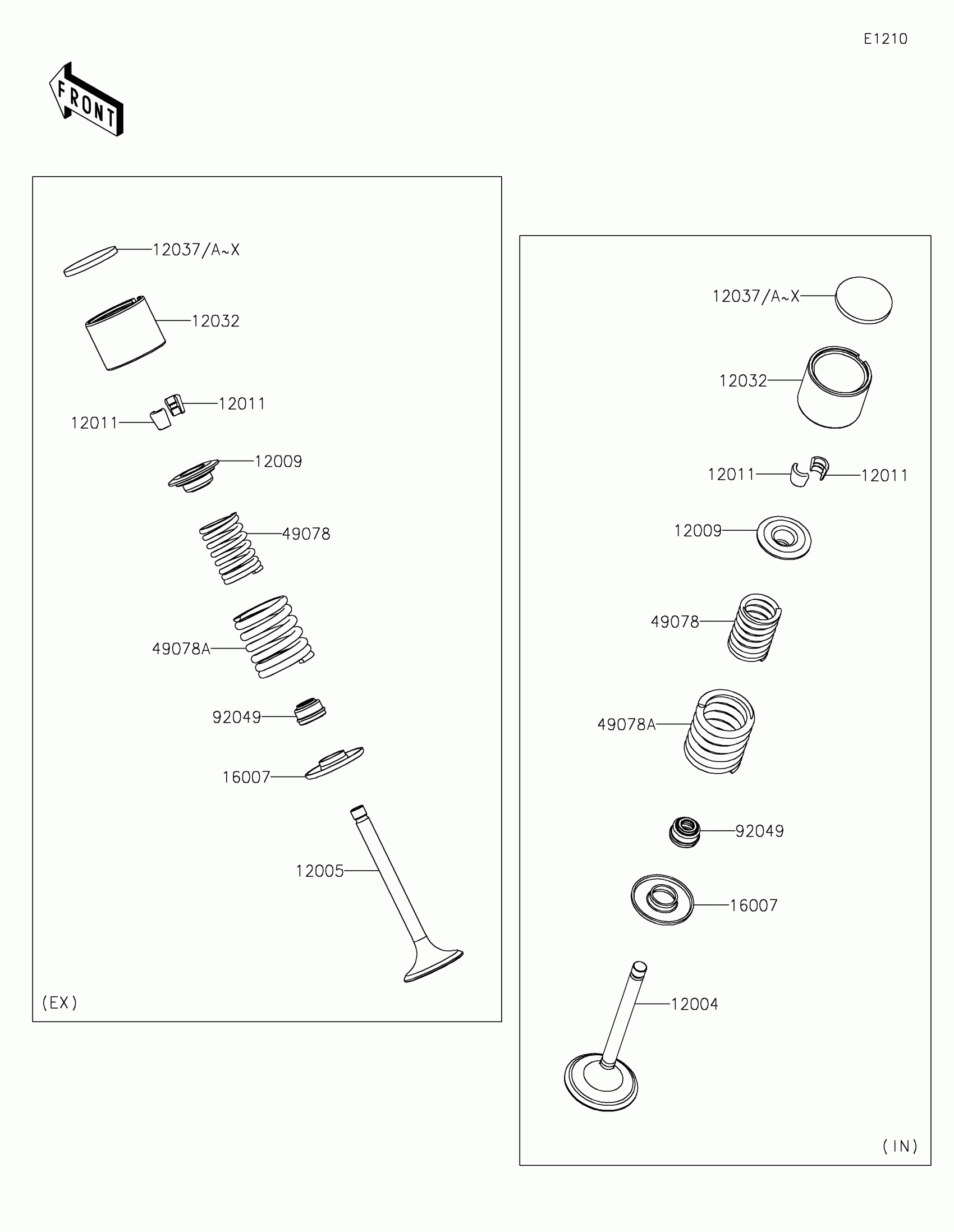

Find the part on the Valve diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0727

1
Out of stock

12005

VALVE-EXHAUST

12005-0740

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-005

1
Out of stock

12011

COLLET,RETAINER

12011-004

1
Out of stock

12032

TAPPET

12032-1002

1
Out of stock

12037

SHIM,T=2.00

12037-001

—
Out of stock

12037A

SHIM,T=2.05

12037-002

—
Out of stock

12037B

SHIM,T=2.10

12037-003

—
Out of stock

12037C

SHIM,T=2.15

12037-004

—
Out of stock

12037D

SHIM,T=2.20

12037-005

—
Out of stock

12037E

SHIM,T=2.25

12037-006

—
Out of stock

12037F

SHIM,T=2.30

12037-007

—
Out of stock

12037G

SHIM,T=2.35

12037-008

—
Out of stock

12037H

SHIM,T=2.40

12037-009

—
Out of stock

12037I

SHIM,T=2.45

12037-010

—
Out of stock

12037J

SHIM,T=2.50

12037-011

—
Out of stock

12037K

SHIM,T=2.55

12037-012

—
Out of stock

12037L

SHIM,T=2.60

12037-013

—
Out of stock

12037M

SHIM,T=2.65

12037-014

—
Out of stock

12037N

SHIM,T=2.70

12037-015

—
Out of stock

12037O

SHIM,T=2.75

12037-016

—
Out of stock

12037P

SHIM,T=2.80

12037-017

—
Out of stock

12037Q

SHIM,T=2.85

12037-018

—
Out of stock

12037R

SHIM,T=2.90

12037-019

—
Out of stock

12037S

SHIM,T=2.95

12037-020

—
Out of stock

12037T

SHIM,T=3.00

12037-021

—
Out of stock

12037U

SHIM,T=3.05

12037-022

—
Out of stock

12037V

SHIM,T=3.10

12037-023

—
Out of stock

12037W

SHIM,T=3.15

12037-024

—
Out of stock

12037X

SHIM,T=3.20

12037-025

—
Out of stock

16007

SEAT-SPRING,VALVE

16007-1024

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1065

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1066

1
Out of stock

92049

SEAL-OIL,RV37129.5

92049-016

1
Out of stock
