2025 Kawasaki KLR650 Adventure ABS Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

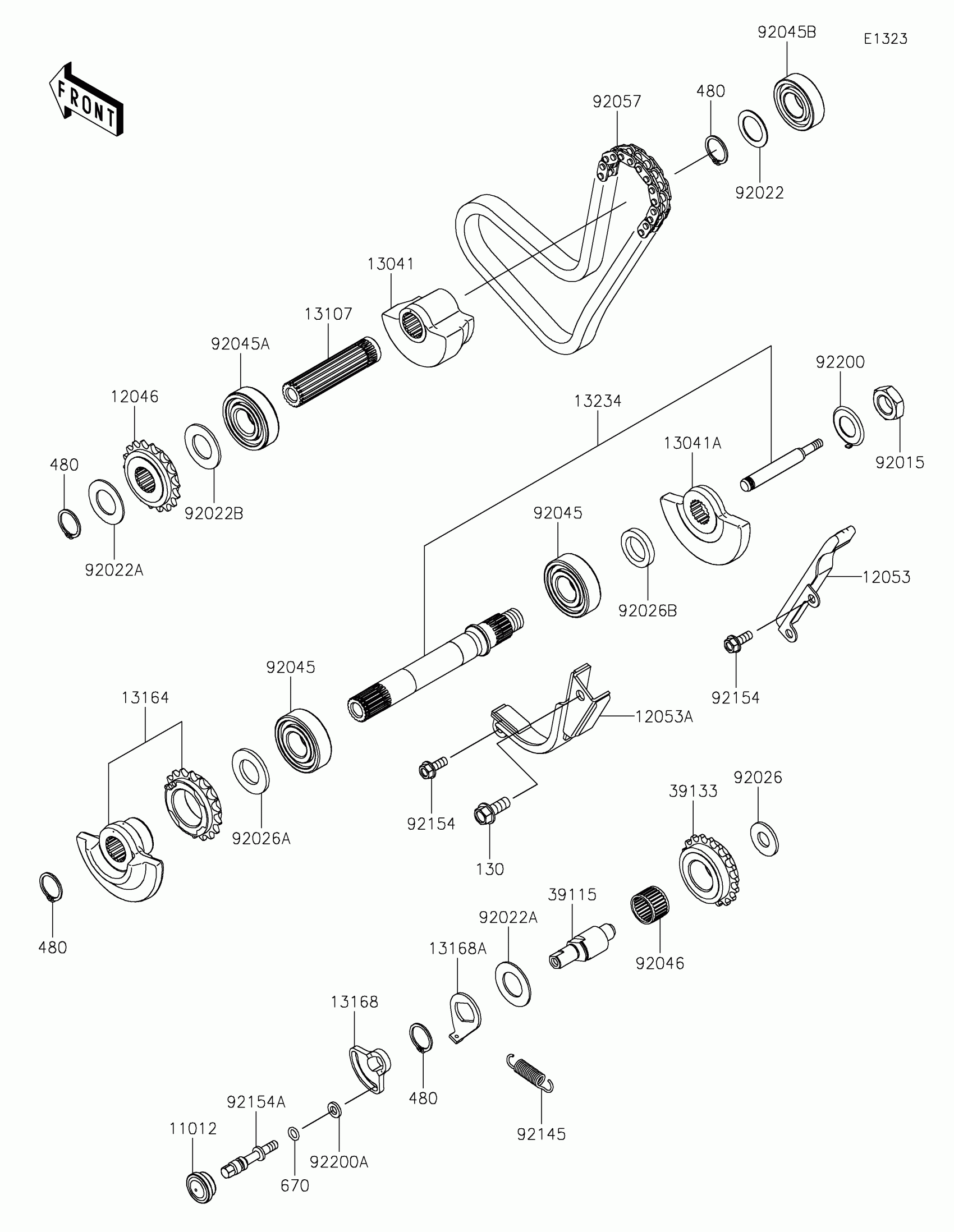

2025 Kawasaki KLR650 Adventure ABS Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1369

1
Out of stock

12046

SPROCKET,BALANCER,18T

12046-1165

1
Out of stock

12053

GUIDE-CHAIN,RR

12053-1111

1
Out of stock

12053A

GUIDE-CHAIN,FR

12053-1175

1
Out of stock

13041

BALANCER,RR

13041-0032

1
Out of stock

13041A

BALANCER,FR,RH

13041-0034

1
Out of stock

13107

SHAFT,BALANCER,RR

13107-1104

1
Out of stock

13164

BALANCER-COMP,FR,LH

13164-0002

1
Out of stock

13168

LEVER,IDLER SHAFT

13168-0184

1
Out of stock

13168A

LEVER

13168-0911

1
Out of stock

13234

SHAFT-COMP,BALANCER,FR

13234-0035

1
Out of stock

39115

SHAFT-IDLER

39115-0022

1

$66.05

In stock

39133

1

$97.00

In stock

92015

NUT,16MM

92015-1477

1
Out of stock

92022

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

92022A

WASHER,20.3X36X1.5

92022-1489

1
Out of stock

92022B

WASHER,20.2X36X2

92022-1880

1
Out of stock

92026

SPACER,12.2X27X2.3

92026-0151

1
Out of stock

92026A

SPACER,20.2X36X3

92026-0155

1
Out of stock

92026B

SPACER,20.2X30X5

92026-1245

1
Out of stock

92045

BEARING-BALL,20X47X14

92045-0070

1
Out of stock

92045A

BEARING-BALL

92045-0071

1
Out of stock

92045B

BEARING-BALL,20X42X12

92045-0072

1
Out of stock

92046

BEARING-NEEDLE

92046-0640

1
Out of stock

92057

CHAIN,BALANCER,BF06HX70L

92057-0888

1
Out of stock

92145

SPRING

92145-0529

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-1428

1
Out of stock

92154A

BOLT,IDLER LEVER

92154-4358

1
Out of stock

92200

WASHER

92200-0558

1
Out of stock

92200A

WASHER,6.5X12X2.0

92200-1263

1
Out of stock

130

BOLT-FLANGED,8X20

130CA0820

1

$1.47

In stock

480

CIRCLIP-TYPE-C,20MM

480J2000

1
Out of stock

670

O RING,7MM

670B1507

1
Out of stock
