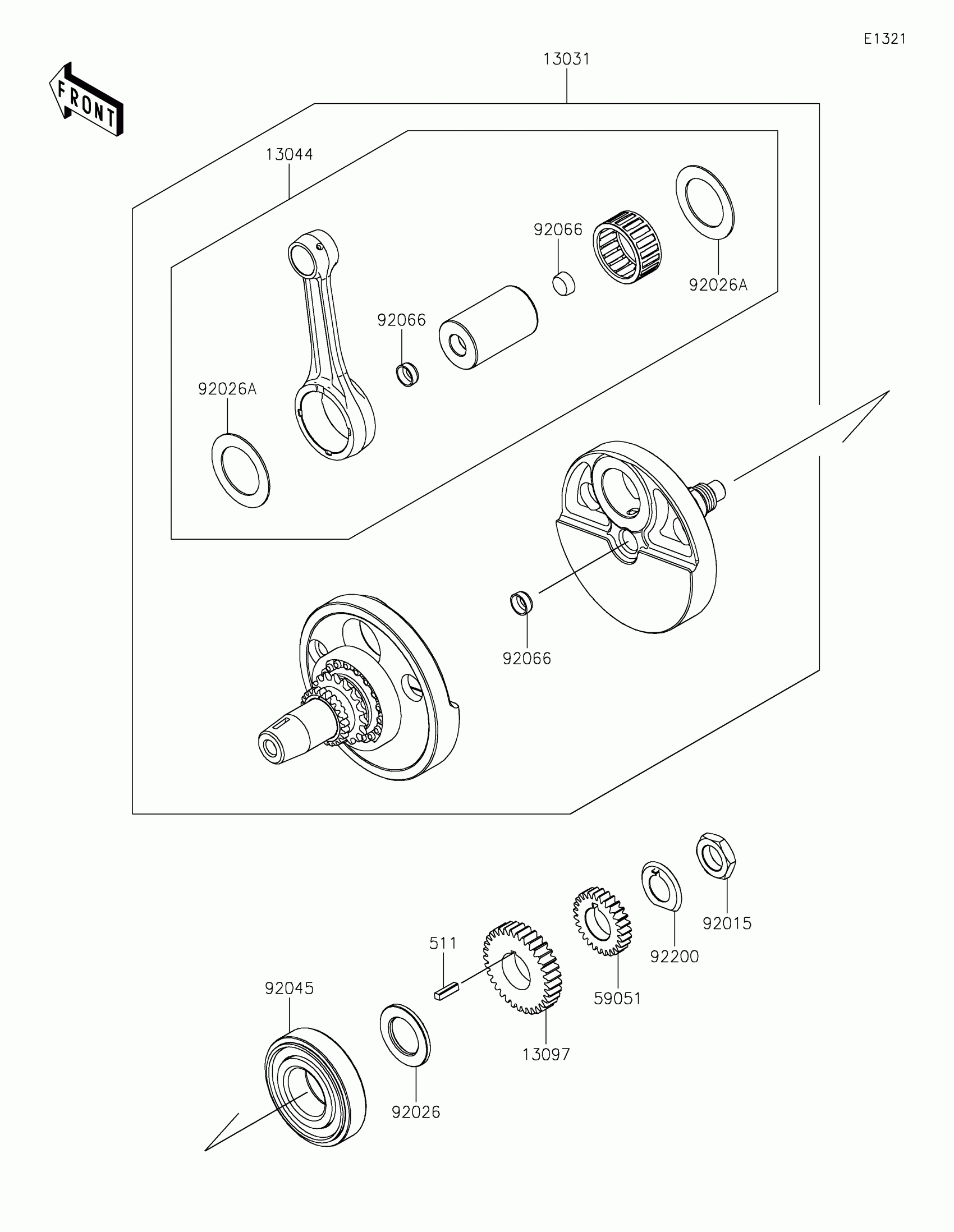

Find the part on the Crankshaft diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0977

1

$1,032.11

In stock

13044

SET-CONNECTING ROD

13044-5089

1

$323.39

In stock

13097

1

$72.18

In stock

59051

GEAR-SPUR,27T

59051-1145

1

$57.45

In stock

92015

NUT,22MM

92015-1890

1

$13.51

In stock

92026

SPACER

92026-0150

1
Out of stock

92026A

SPACER,40X60X1.5

92026-0152

1
Out of stock

92045

1

$112.58

In stock

92066

PLUG

92066-1154

1

$3.69

In stock

92200

WASHER

92200-0557

1
Out of stock

511

KEY-SUNK

511A0520

1

$2.17

In stock
