2025 Kawasaki KLR650 Adventure ABS Engine Cover Diagram

← All diagrams

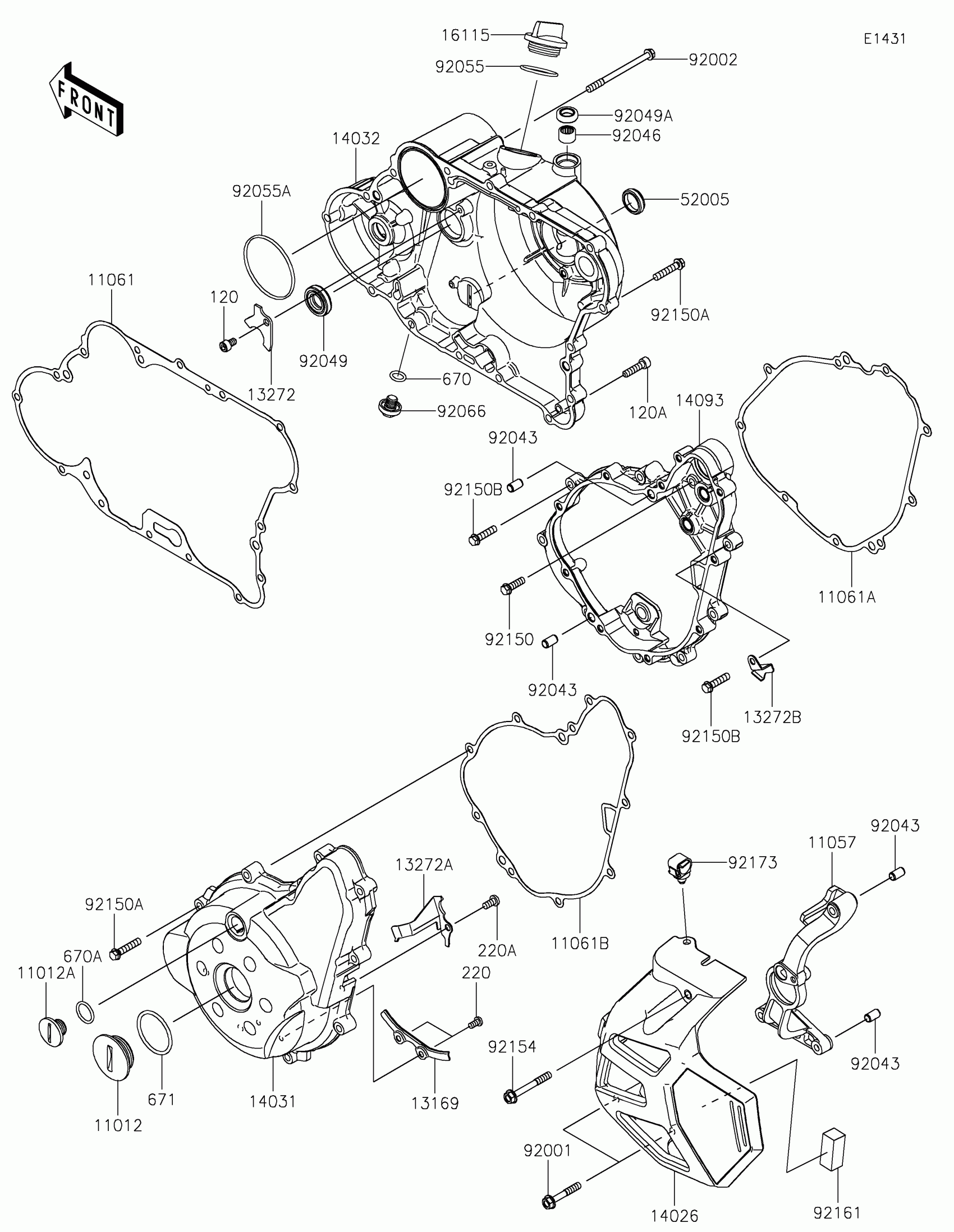

Find the part on the Engine Cover diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1362

1
Out of stock

11012A

CAP,TOP MARK

11012-1363

1
Out of stock

11057

BRACKET,SPEED SENSOR

11057-4312

1
Out of stock

11061

GASKET,CLUTCH COVER

11061-0429

1
Out of stock

11061A

GASKET,GENERATOR CASE COVER

11061-1486

1
Out of stock

11061B

GASKET,GENERATOR COVER

11061-1487

1
Out of stock

13169

PLATE,PULSING COIL LEAD

13169-1882

1
Out of stock

13272

PLATE,OIL SEAL

13272-0863

1

$7.81

In stock

13272A

PLATE,GENERATOR

13272-0869

1

$10.22

In stock

13272B

PLATE,GENERATOR

13272-3871

1
Out of stock

14026

COVER-CHAIN

14026-0153

1
Out of stock

14031

COVER-GENERATOR

14031-0126

1

$330.94

In stock

14032

COVER-CLUTCH

14032-0674

1
Out of stock

14093

COVER,GENERATOR CASE

14093-1080

1
Out of stock

16115

CAP-OIL FILLER

16115-1068

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92001

BOLT,6X38

92001-1899

1
Out of stock

92002

BOLT,FLANGED,6X80

92002-1568

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92049

SEAL-OIL,SCY 15X30X7

92049-1158

1
Out of stock

92049A

SEAL-OIL

92049-1560

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92055A

RING-O,62.6X66X3.1

92055-1221

1
Out of stock

92066

PLUG,DRAIN

92066-1156

1
Out of stock

92150

BOLT,6X20

92150-1010

1
Out of stock

92150A

BOLT,6X30

92150-1021

1
Out of stock

92150B

BOLT,FLANGED-SMALL,6X25

92150-1779

1
Out of stock

92154

BOLT,FLANGED,6X50

92154-4222

1
Out of stock

92161

DAMPER,15X35X15

92161-2359

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

120

BOLT-SOCKET,6X10

120CA0610

1
Out of stock

120A

BOLT-SOCKET,6X25

120CB0625

1
Out of stock

220

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock

220A

SCREW-PAN-CROS,6X12

220AA0612

1
Out of stock

670

O RING,11MM

670B2011

1
Out of stock

670A

O RING,18MM

670B2018

1
Out of stock

671

O RING,40MM

671B2540

1
Out of stock
