2025 Kawasaki KLR650 Adventure ABS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

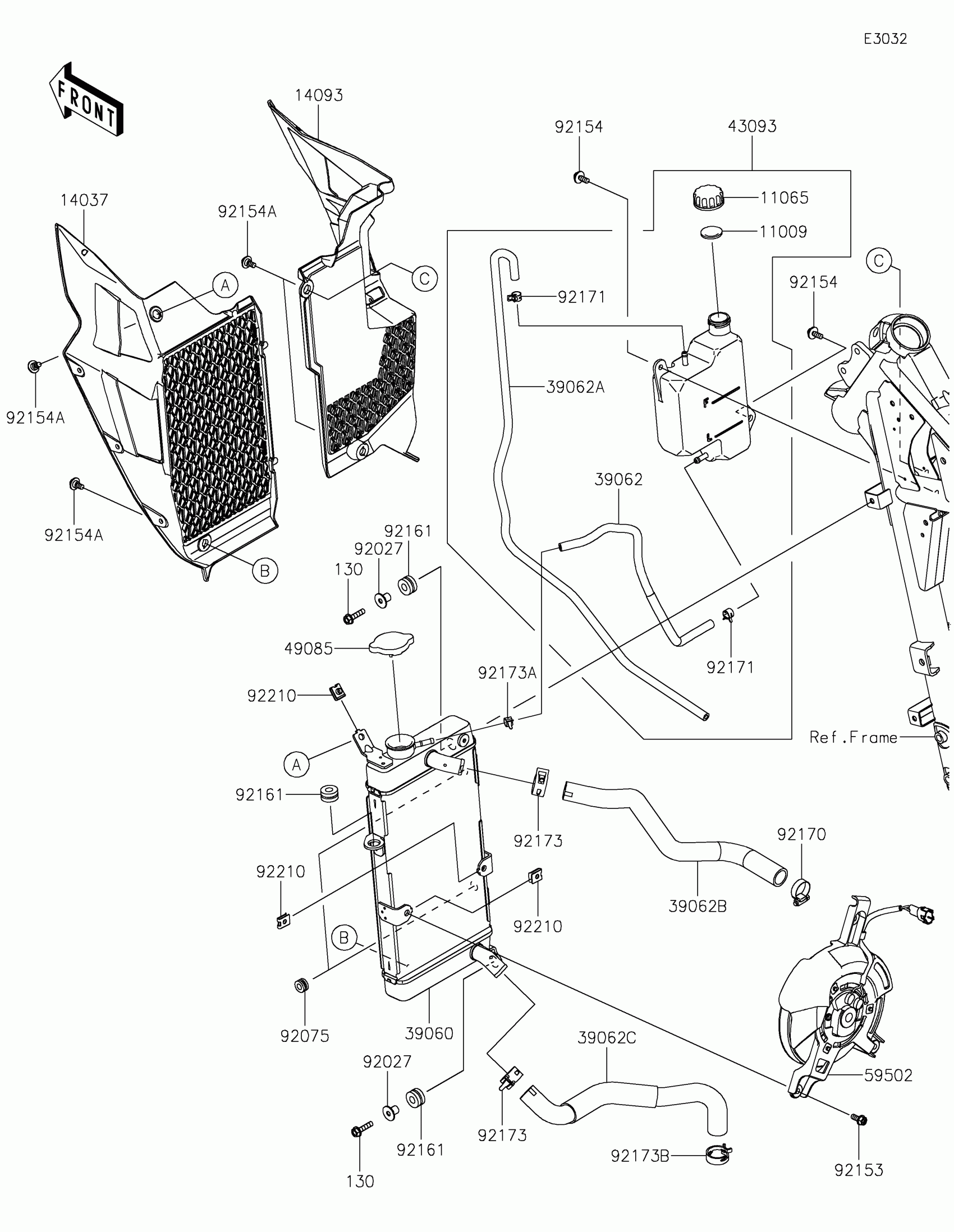

2025 Kawasaki KLR650 Adventure ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11065

CAP

11065-0969

1
Out of stock

14037

SCREEN,RADIATOR

14037-0821

1
Out of stock

14093

COVER,RH

14093-1070

1
Out of stock

39060

RADIATOR

39060-0744

1
Out of stock

39062

HOSE-COOLING,RAD-RESERVOIR

39062-0922

1
Out of stock

39062A

HOSE-COOLING,OVERFLOW

39062-0923

1
Out of stock

39062B

HOSE-COOLING,HEAD-RADIATOR

39062-0924

1
Out of stock

39062C

HOSE-COOLING,W/PUMP-RADIATOR

39062-0925

1
Out of stock

43093

RESERVOIR-ASSY-TANK

43093-0010

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-0006

1
Out of stock

59502

FAN-ASSY

59502-0632

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92153

BOLT

92153-0531

1
Out of stock

92154

BOLT,6X16

92154-0391

1
Out of stock

92154A

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92161

DAMPER

92161-1755

1

$4.17

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

92171

CLAMP,10.5X8X0.7

92171-1992

1
Out of stock

92173

CLAMP

92173-1567

1
Out of stock

92173A

CLAMP

92173-2425

1
Out of stock

92173B

CLAMP

92173-2459

1
Out of stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
