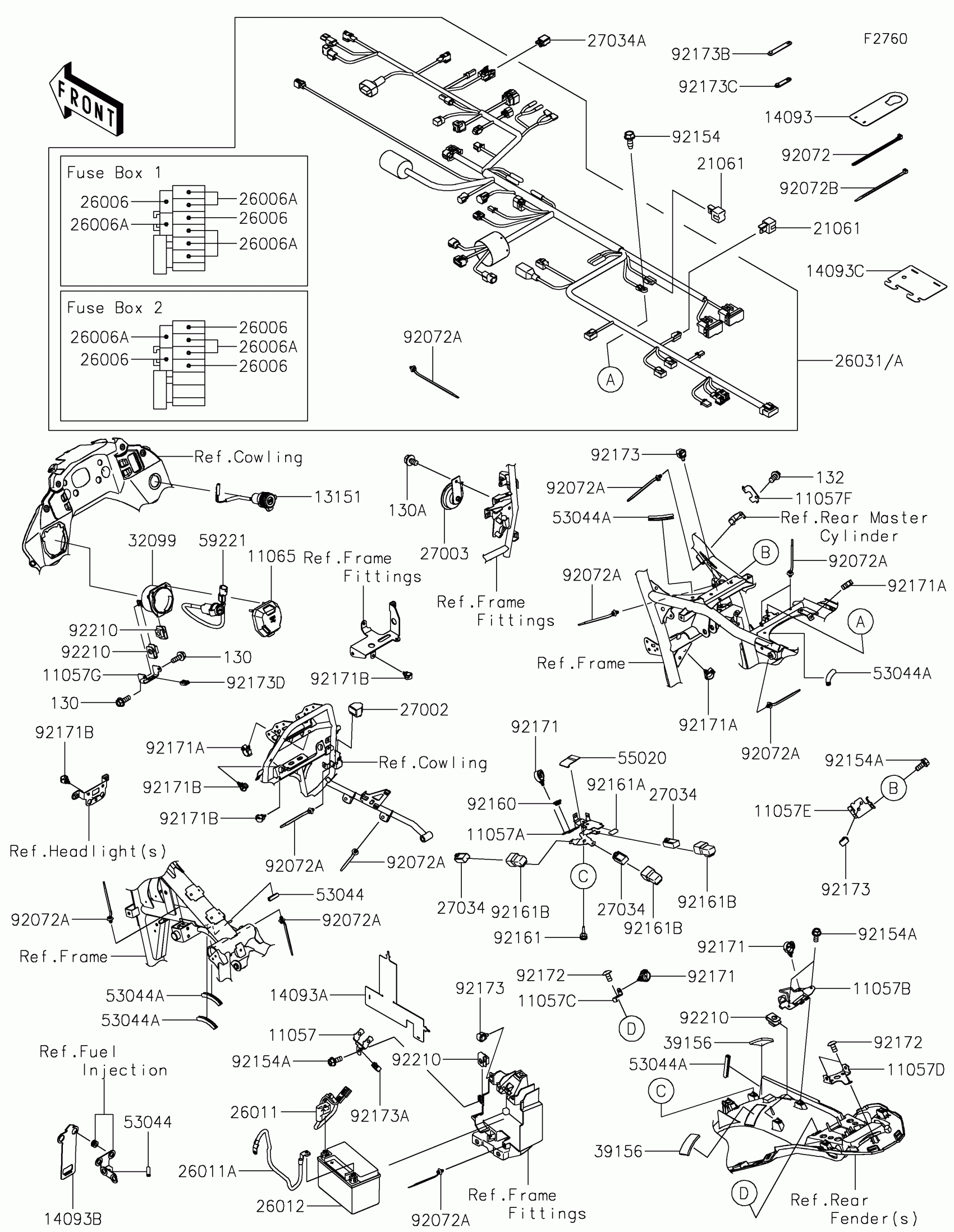

Kawasaki KLR650 Adventure ABS Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,MAGNETIC SWITCH

11057-4292

$4.68

11057A

BRACKET,FUSE BOX

11057-4295

$5.88

11057B

BRACKET,RR HARNESS

11057-4298

$11.83

11057C

BRACKET,HARNESS GUIDE

11057-4301

$1.22

11057D

BRACKET,ECU

11057-4302

$3.90

11057E

BRACKET,RR SPEED SENSOR

11057-4378

$4.86

11057F

BRACKET,OXYGEN SENSOR

11057-4379

$2.12

11057G

BRACKET

11057-4390

$3.12

11065

CAP,USB

11065-1425

$17.20

13151

SWITCH-COMP,DC SOCKET

13151-0566

$151.47

14093

COVER,IGNITION SWITCH

14093-1044

$9.76

14093A

COVER,MAGNETIC SWITCH

14093-1197

$13.03

14093B

COVER

14093-1214

$9.76

14093C

COVER,HARNESS

14093-1539

$10.03

21061

RECTIFIER

21061-1003

$30.17

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26011

WIRE-LEAD,BATTERY(+)

26011-1935

$47.91

26011A

WIRE-LEAD,BATTERY(-)

26011-1937

$41.20

26012

BATTERY,FTX9-BS,12V 8AH

26012-0608

$200.48

26031A

HARNESS,MAIN

26031-3899

$871.65

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

$24.24

27003

HORN

27003-0163

$71.33

27034

RELAY

27034-0012

$37.62

27034A

RELAY

27034-0014

$36.80

32099

CASE,USB

32099-0822

$12.08

39156

PAD,30X55X5

39156-2694

$1.31

53044

TRIM,L=30

53044-0001

$2.29

53044A

TRIM,L=60

53044-0032

$7.42

55020

GUARD,50X30

55020-2334

$2.80

59221

CONNECTOR-CORD,USB

59221-0021

$130.51

92072

BAND,L=140

92072-1293

$5.26

92072A

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072B

BAND,L=152

92072-3874

$3.75

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92154A

BOLT,FLANGED,5X12

92154-2893

$0.60

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0901

$2.76

92161A

DAMPER,12X23

92161-1367

$0.95

92161B

DAMPER

92161-2290

$5.27

92171

CLAMP,20MM DIA.

92171-0069

$2.29

92171A

CLAMP,BRAKE HOSE

92171-0316

$2.93

92171B

CLAMP,13MM DIA.

92171-1415

$1.69

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173B

CLAMP

92173-2194

$1.56

92173C

CLAMP

92173-2198

$1.32

92173D

CLAMP

92173-2464

$3.49

92210

NUT,PLATE,5MM

92210-0935

$1.44

130

BOLT-FLANGED,5X14

130BA0514

$1.49

130A

BOLT-FLANGED,6X10

130BB0610

$1.77

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

26031

HARNESS,MAIN

26031-3898

$871.65
