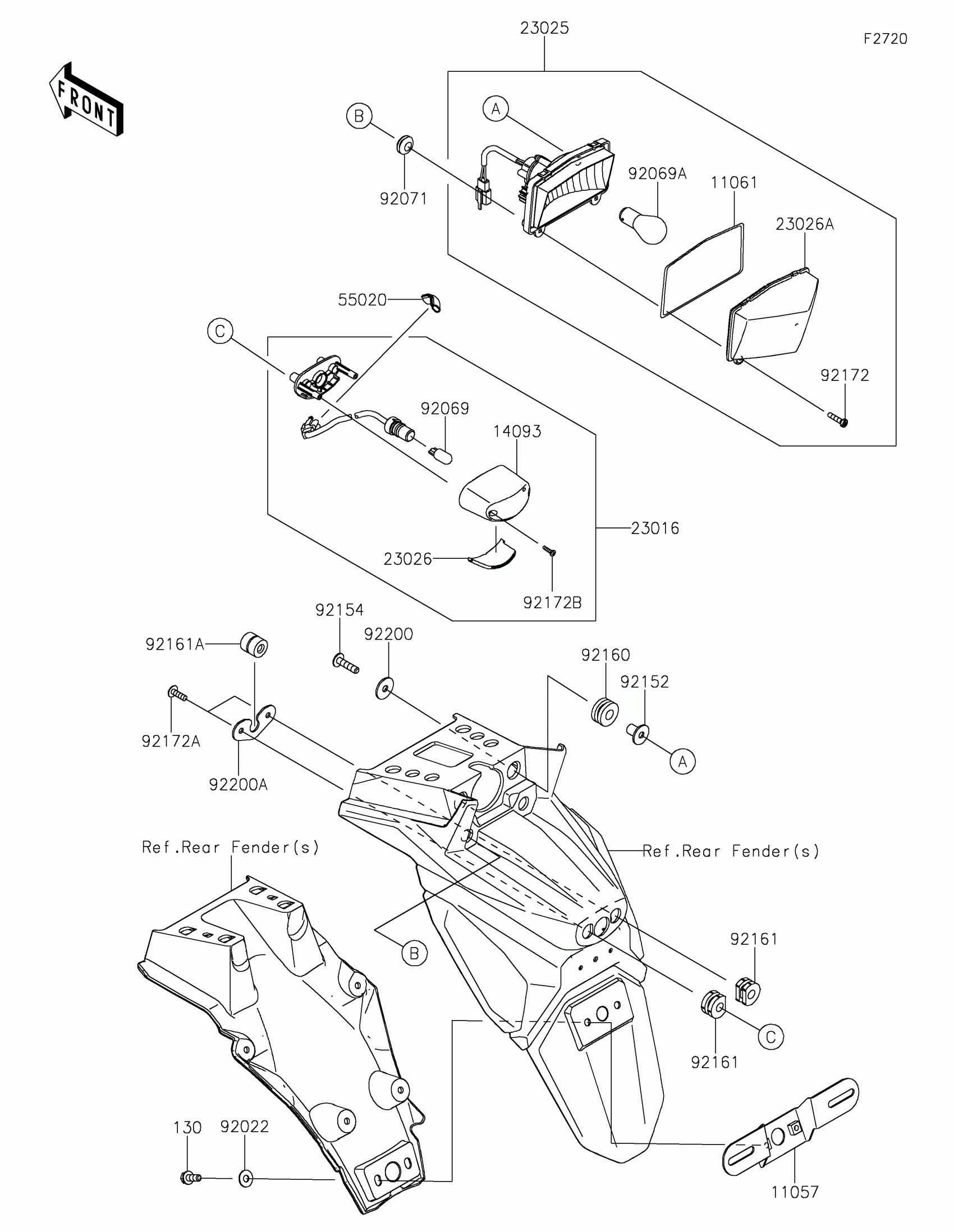

Find the part on the Taillight diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LICENSE PLATE

11057-1046

1
Out of stock

11061

GASKET,TAIL LAMP LENS

11061-0393

1
Out of stock

14093

COVER,LICENSE LAMP

14093-0525

1
Out of stock

23016

LAMP-ASSY,LICENCE

23016-0604

1
Out of stock

23025

LAMP-TAIL

23025-0392

1
Out of stock

23026

LENS,LICENSE LAMP

23026-0025

1
Out of stock

23026A

LENS,TAIL LAMP

23026-0036

1
Out of stock

55020

GUARD,50X30

55020-2334

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92069A

BULB,12V 21/5W

92069-1084

1
Out of stock

92071

GROMMET

92071-024

1
Out of stock

92152

COLLAR,6.3X9.5X13.5

92152-1942

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0071

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92161

DAMPER

92161-0776

1
Out of stock

92161A

DAMPER,6X18X18.2

92161-1809

1

$1.32

In stock

92172

SCREW,4.2X19

92172-0411

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

92172B

SCREW,4X12

92172-0904

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92200A

WASHER

92200-1773

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
