2025 Kawasaki KLR650 Adventure ABS Starter Motor Diagram

← All diagrams

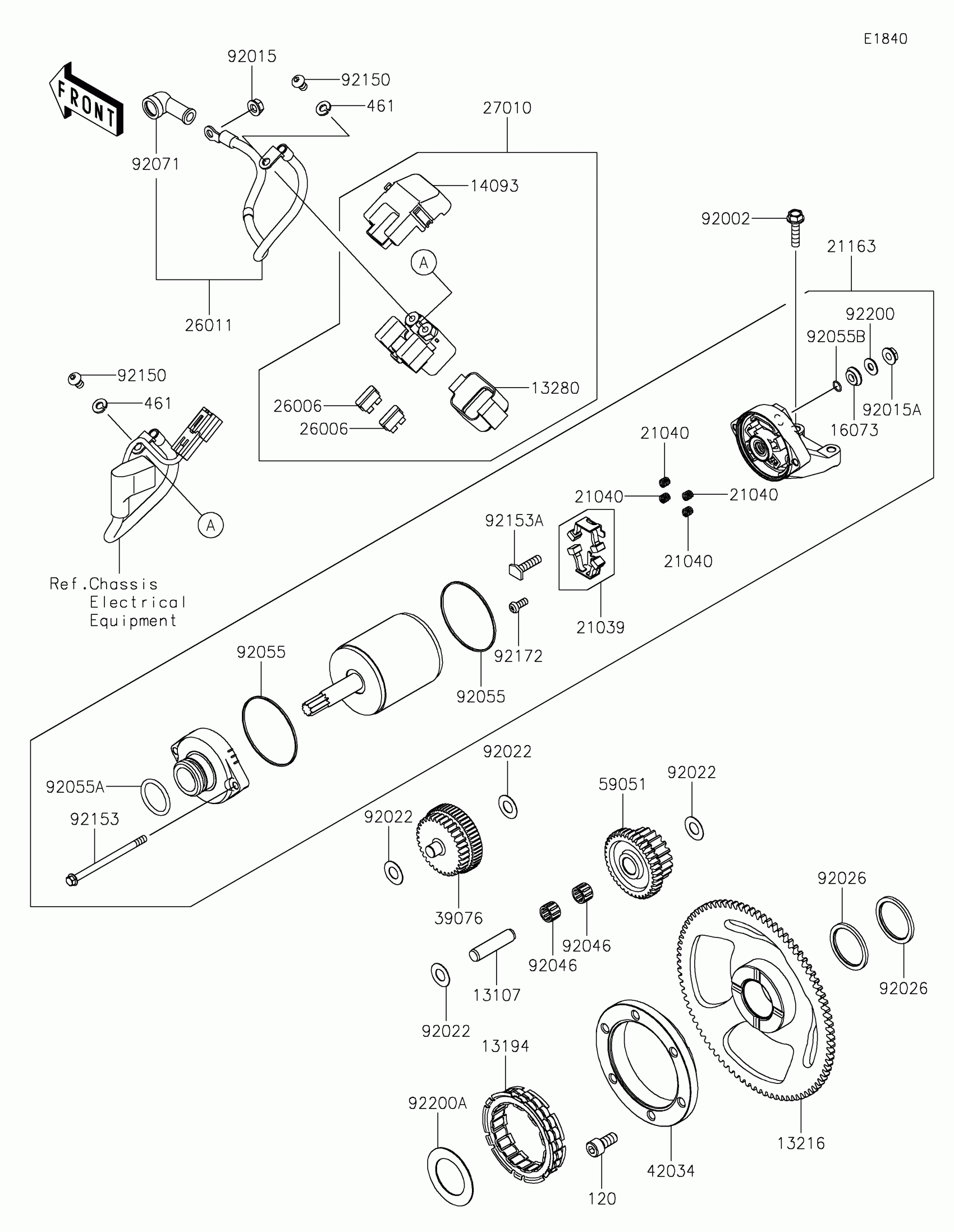

Find the part on the Starter Motor diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLER

13107-1135

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1089

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0044

1
Out of stock

13280

HOLDER

13280-0710

1

$13.75

In stock

14093

COVER

14093-0199

1
Out of stock

16073

INSULATOR

16073-0053

1
Out of stock

21039

BRUSH,CARBON

21039-0004

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0790

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-1938

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0948

1
Out of stock

39076

1

$219.02

In stock

42034

COUPLING

42034-1094

1
Out of stock

59051

GEAR-SPUR,20T & 37T

59051-1133

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1086

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,10.2X20X0.5

92022-1649

1
Out of stock

92026

SPACER

92026-1474

1
Out of stock

92046

BEARING-NEEDLE,K10X14X10

92046-1134

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92071

GROMMET

92071-0705

1
Out of stock

92150

BOLT,6X10

92150-1577

1
Out of stock

92153

BOLT

92153-1850

1
Out of stock

92153A

BOLT

92153-1866

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92200

WASHER

92200-0386

1
Out of stock

92200A

WASHER,32.2X50

92200-0555

1
Out of stock

120

BOLT-SOCKET,8X18

120CA0818

1
Out of stock

461

WASHER-SPRING,6MM

461DB0600

1
Out of stock
