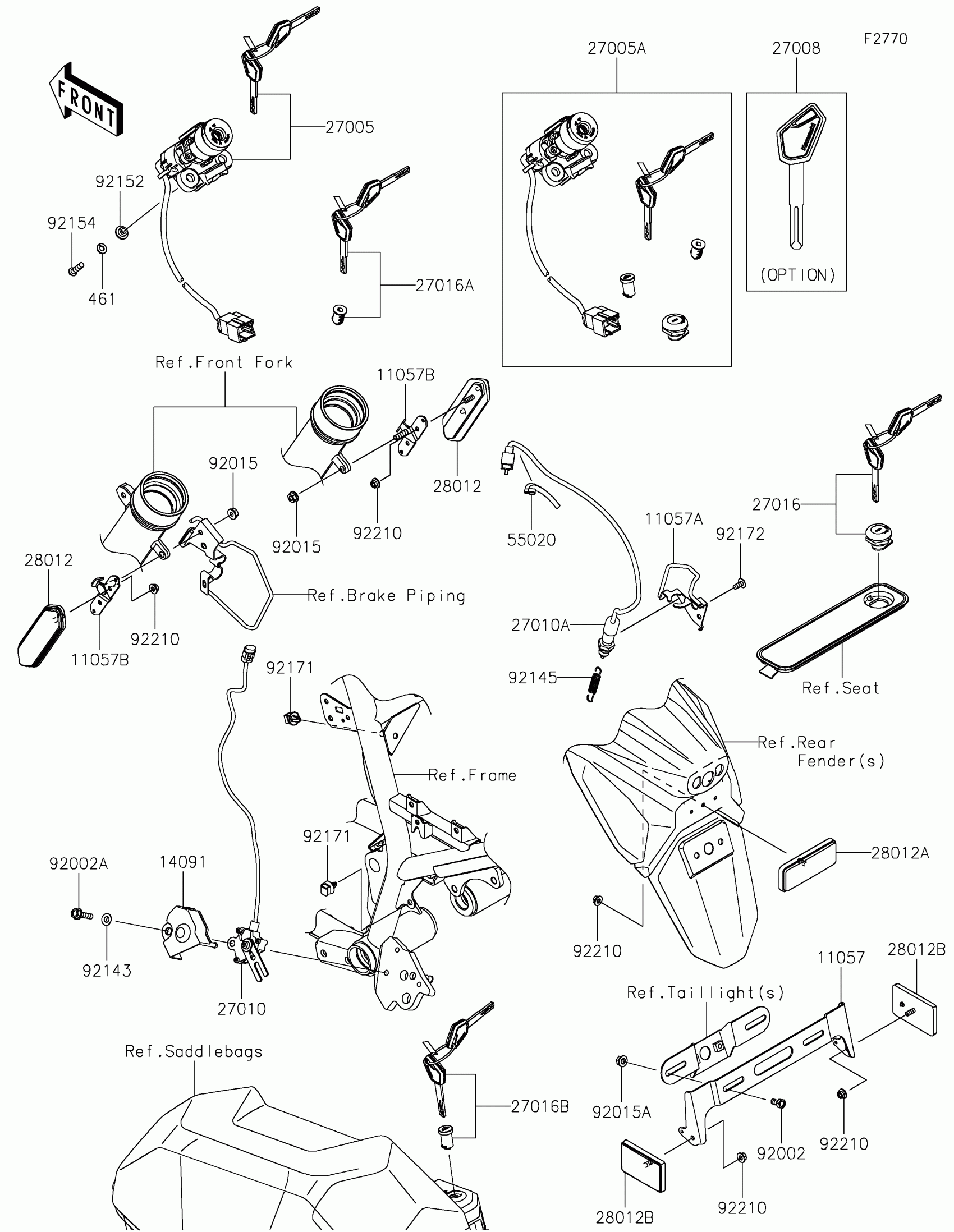

Find the part on the Ignition Switch diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,REFLECTOR,RR

11057-4368

1
Out of stock

11057A

BRACKET,RR BRAKE SWITCH

11057-7880

1
Out of stock

11057B

BRACKET,REFLECTOR

11057-7911

1
Out of stock

14091

COVER,SIDE STAND SWITCH

14091-1553

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0702

1
Out of stock

27005A

SWITCH-ASSY-IGNITION

27005-5190

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0688

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0118

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-0969

1
Out of stock

27016

LOCK-ASSY,TOOL COVER

27016-5419

1
Out of stock

27016A

LOCK-ASSY,TANK CAP

27016-5421

1
Out of stock

27016B

LOCK-ASSY,PANNIER

27016-5422

1
Out of stock

28012

REFLECTOR-REFLEX,CCC

28012-0045

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

55020

GUARD,50X30

55020-2334

1
Out of stock

92002

BOLT,6X12

92002-1132

1
Out of stock

92002A

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92143

COLLAR

92143-1331

1
Out of stock

92145

SPRING,REAR BRAKE

92145-1896

1
Out of stock

92152

COLLAR,6.15X10.15X6

92152-1535

1
Out of stock

92154

BOLT,TORX,6X22

92154-1858

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92172

SCREW,5X12

92172-1459

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
