2025 Kawasaki KLR650 Adventure ABS Ignition System Diagram

← All diagrams

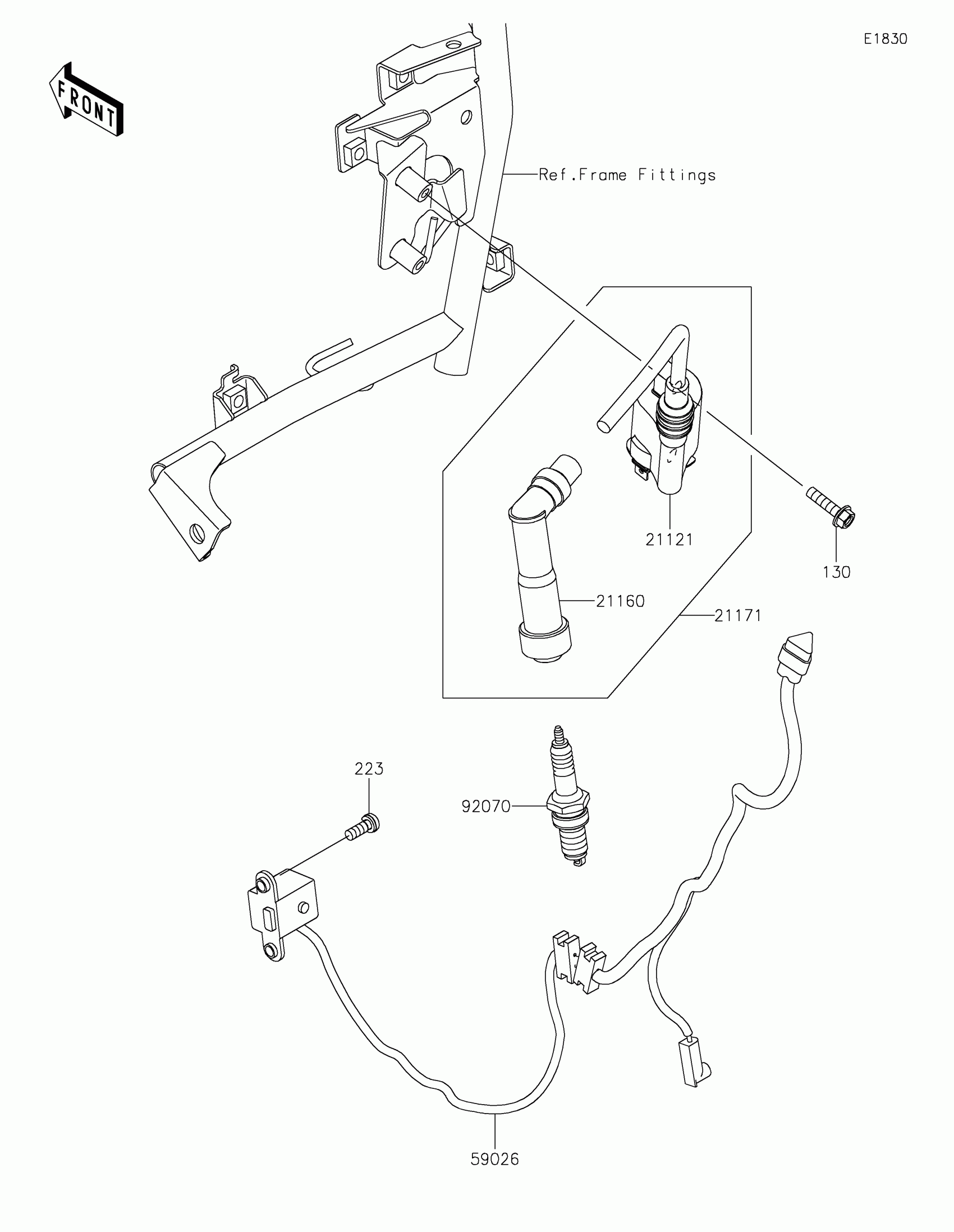

Find the part on the Ignition System diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-0740

1
Out of stock

21160

CAP-ASSY-PLUG

21160-0019

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0789

1
Out of stock

59026

COIL-PULSING

59026-0563

1
Out of stock

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

1
Out of stock

130

BOLT-FLANGED,5X20

130BA0520

1

$0.92

In stock

223

SCREW-PAN-WS-CROS,5X14

223AA0514

1
Out of stock
