2025 Kawasaki KLR650 Adventure ABS Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

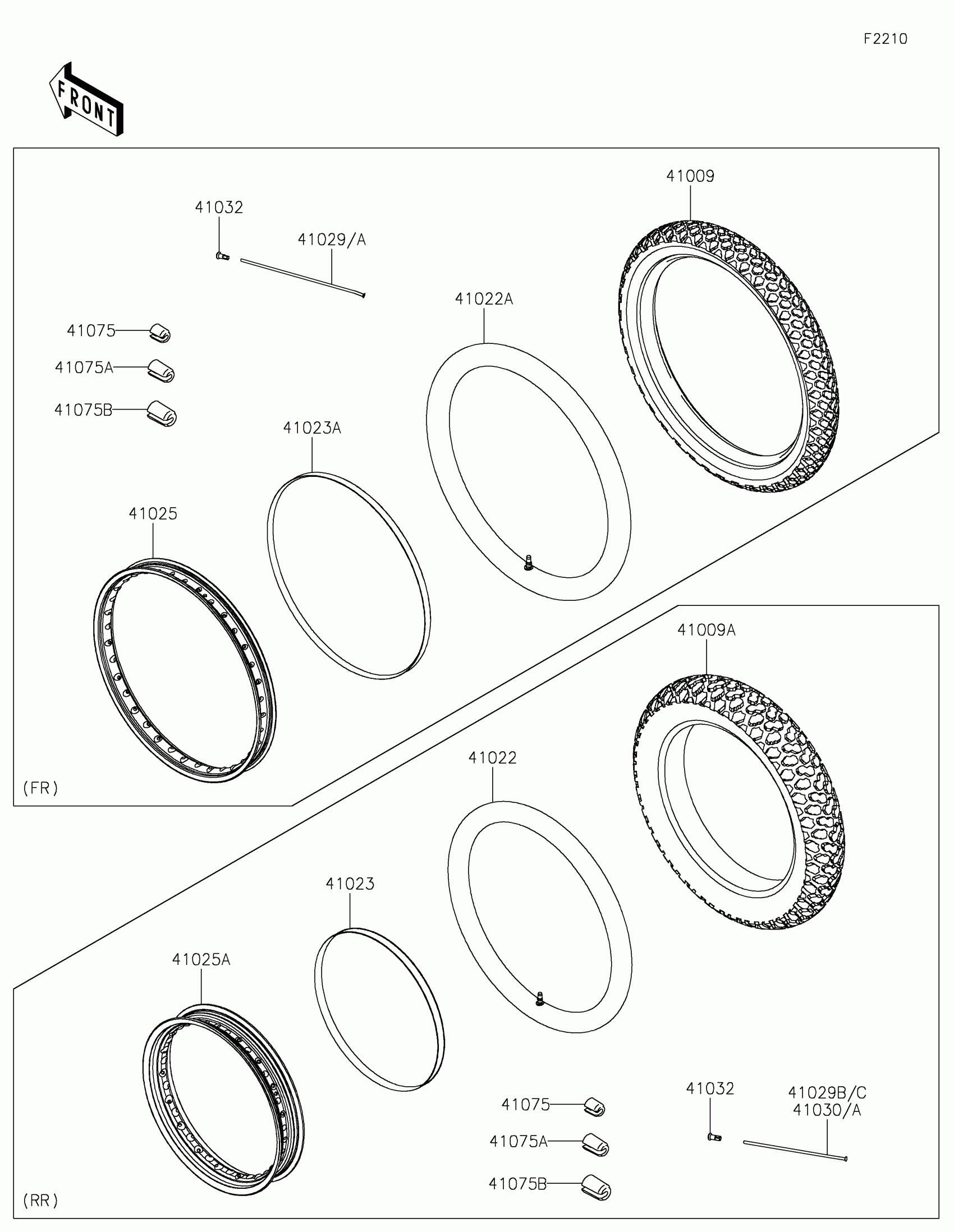

2025 Kawasaki KLR650 Adventure ABS Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,90/90-21 54S,K750(D)

41009-0001

1
Out of stock

41009A

TIRE,RR,130/80-17 65S,K750(D)

41009-0002

1
Out of stock

41022

TUBE-TIRE,130/80-17(D)

41022-0003

1
Out of stock

41022A

TUBE-TIRE,3.00-21(D),SNI

41022-0095

1
Out of stock

41023

BAND-RIM,17XWM/MT2.15-2.50(D)

41023-0001

1
Out of stock

41023A

BAND-RIM,21XWM1.60-1.85(D)

41023-1144

1
Out of stock

41025

RIM,FR,1.60X21,BLACK

41025-0033-WC

1
Out of stock

41025A

RIM,RR,2.50X17

41025-0419

1
Out of stock

41029

SPOKE-INNER,FR,LH,4X236

41029-0065

1
Out of stock

41029A

SPOKE-INNER,FR,RH,4X239

41029-0066

1
Out of stock

41029B

SPOKE-INNER,RR,LH,4X157

41029-0117

1
Out of stock

41029C

SPOKE-INNER,RR,RH,4X181

41029-0118

1
Out of stock

41030

SPOKE-OUTER,RR,LH,4X157

41030-0033

1
Out of stock

41030A

SPOKE-OUTER,RR,RH,4X178.5

41030-0034

1
Out of stock

41032

NIPPLE-SPOKE

41032-0013

1
Out of stock

41075

BALANCER-WHEEL,10G

41075-0011

—
Out of stock

41075A

BALANCER-WHEEL,20G

41075-0012

—
Out of stock

41075B

BALANCER-WHEEL,30G

41075-0013

—
Out of stock
