2025 Kawasaki KLR650 Adventure ABS Generator Diagram

← All diagrams

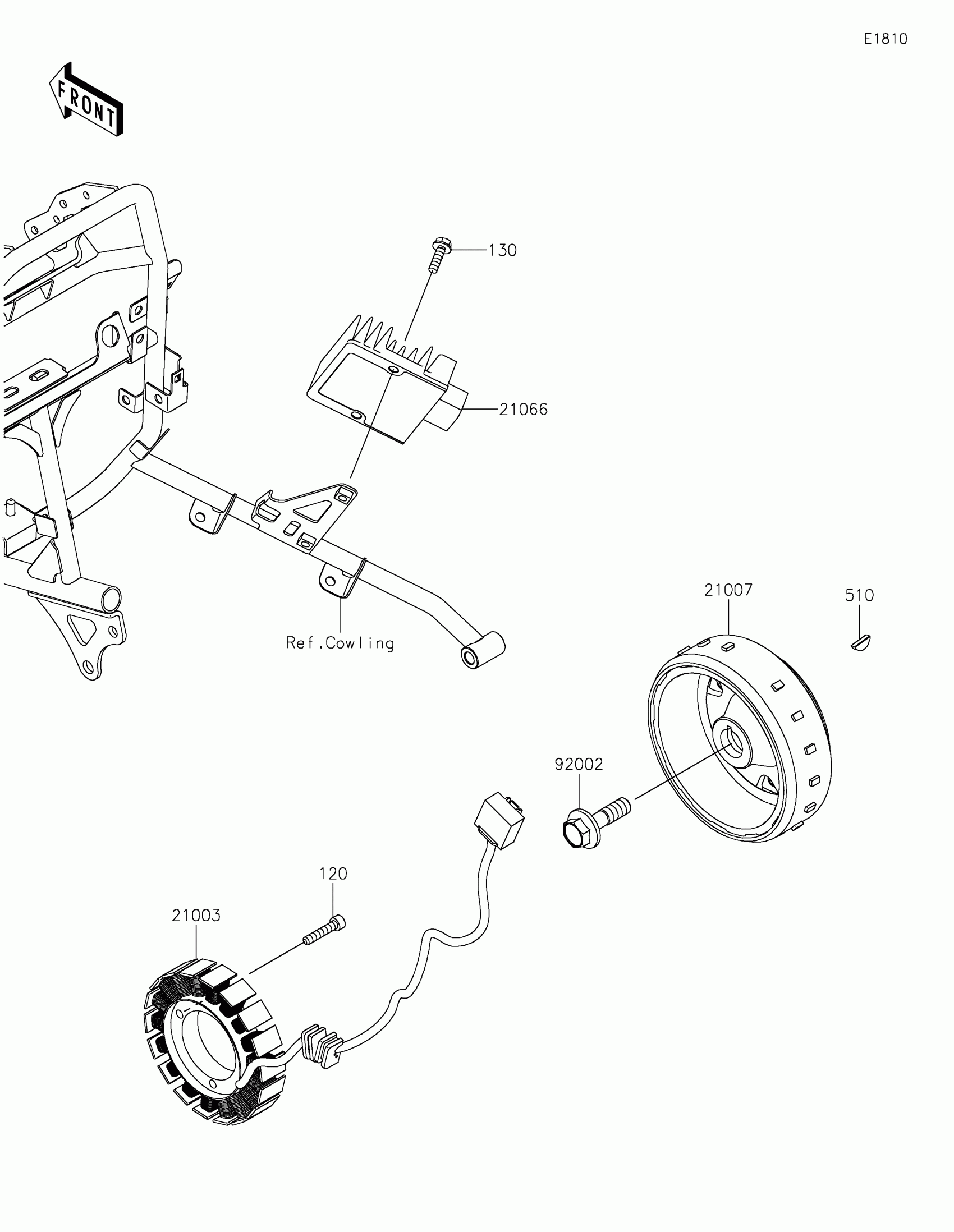

Find the part on the Generator diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-0208

1
Out of stock

21007

ROTOR

21007-0708

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0761

1
Out of stock

92002

BOLT,FLANGED,12X40

92002-1693

1
Out of stock

120

BOLT-SOCKET,6X30

120CA0630

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

510

KEY-WOODRUFF

510A4200

1
Out of stock
