1989 Kawasaki KLR250 Valve Diagram

← All diagrams

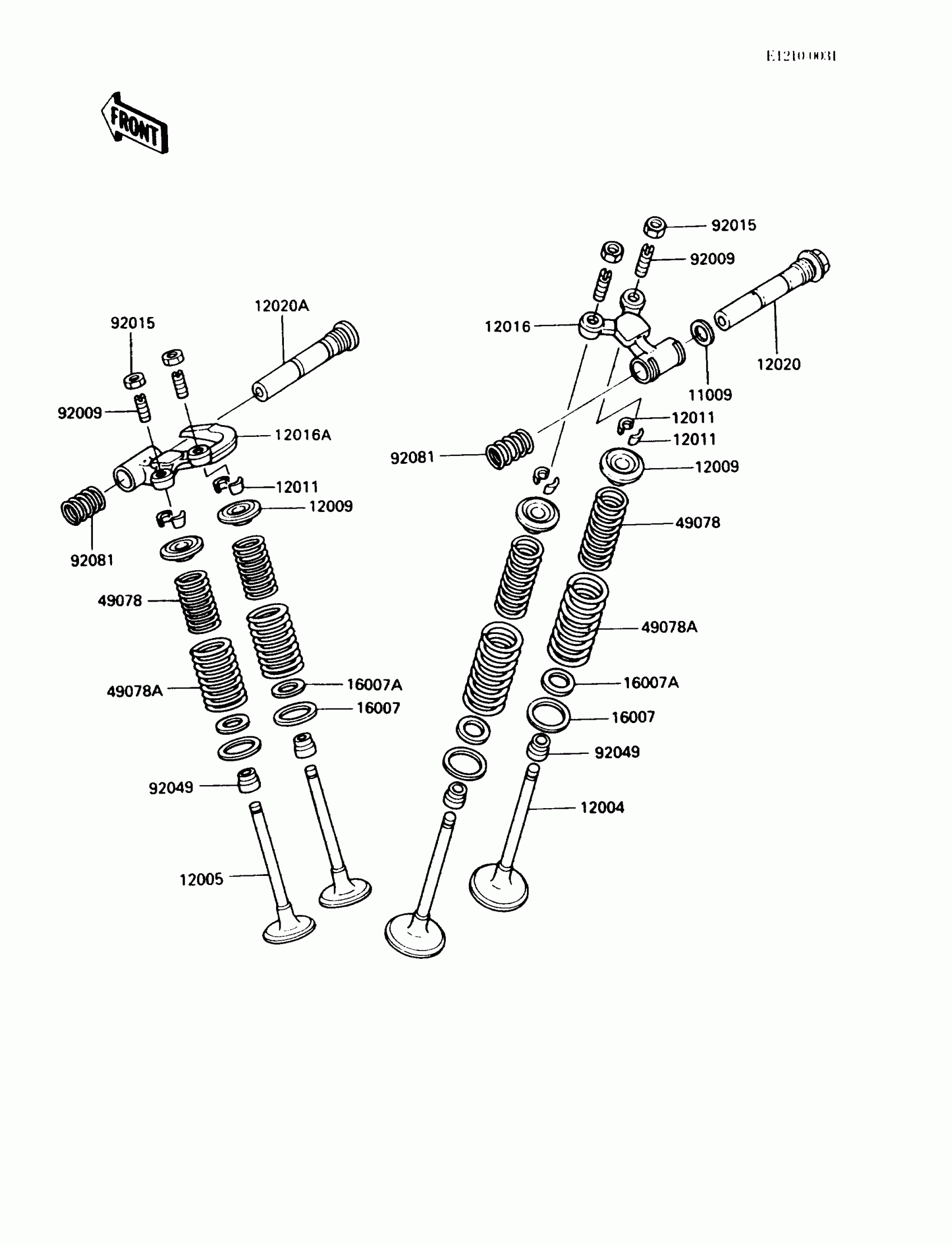

Find the part on the Valve diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X18X1.5

11009-1430

1

$5.15

In stock

12004

VALVE-INTAKE

12004-1077

1
Out of stock

12005

VALVE-EXHAUST

12005-1052

1

$67.45

In stock

12009

1

$8.61

In stock

12011

COLLET

12011-1003

1

$3.69

In stock

12016

ARM-ROCKER,INTAKE

12016-1071

1

$120.64

In stock

12016A

ARM-ROCKER,EXHAUST

12016-1083

1
Out of stock

12020

SHAFT-ROCKER,INTAKE

12020-1055

1

$43.93

In stock

12020A

1

$43.93

In stock

16007

1

$4.85

In stock

16007A

1

$4.88

In stock

49078

1

$15.61

In stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1056

1
Out of stock

92009

SCREW,7MM

92009-1279

1
Out of stock

92015

NUT,7MM

92015-1325

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock

92081

SPRING,ROCKER ARM

92081-1740

1

$3.90

In stock
