1986 Kawasaki KLR250 Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 1986 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

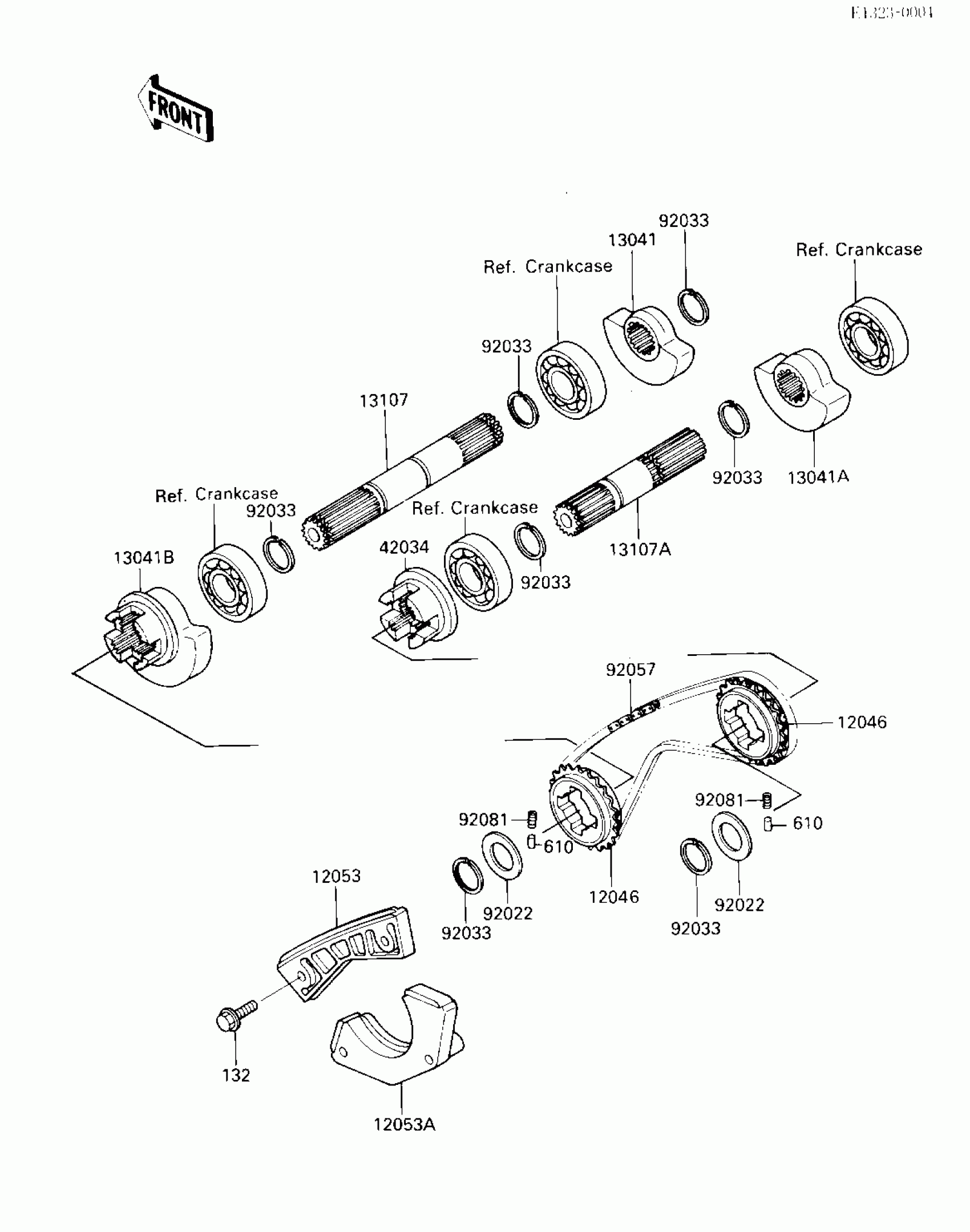

1986 Kawasaki KLR250 Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

1

$86.86

In stock

12053

GUIDE-CHAIN,UPP

12053-1152

1

$69.63

In stock

12053A

GUIDE-CHAIN,LWR

12053-1153

1

$77.18

In stock

13041

BALANCER,FR,RH

13041-1057

1

$74.87

In stock

13041A

BALANCER,RR

13041-1058

1

$99.07

In stock

13041B

BALANCER,FR,LH

13041-1063

1

$99.07

In stock

13107

SHAFT,BALANCER,FR

13107-1121

1

$94.14

In stock

13107A

SHAFT,BALANCER,RR

13107-1122

1

$87.97

In stock

42034

1

$47.09

In stock

92022

WASHER,20.3X36X1.5

92022-1489

1

$5.42

In stock

92033

RING-SNAP,18MM

92033-029

1

$7.79

In stock

92057

CHAIN,BALANCER,BF05T-U

92057-1211

1
Out of stock

92081

SPRING,BALANCER

92081-135

1

$4.39

In stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
