1989 Kawasaki KLR250 Engine Cover Diagram

← All diagrams

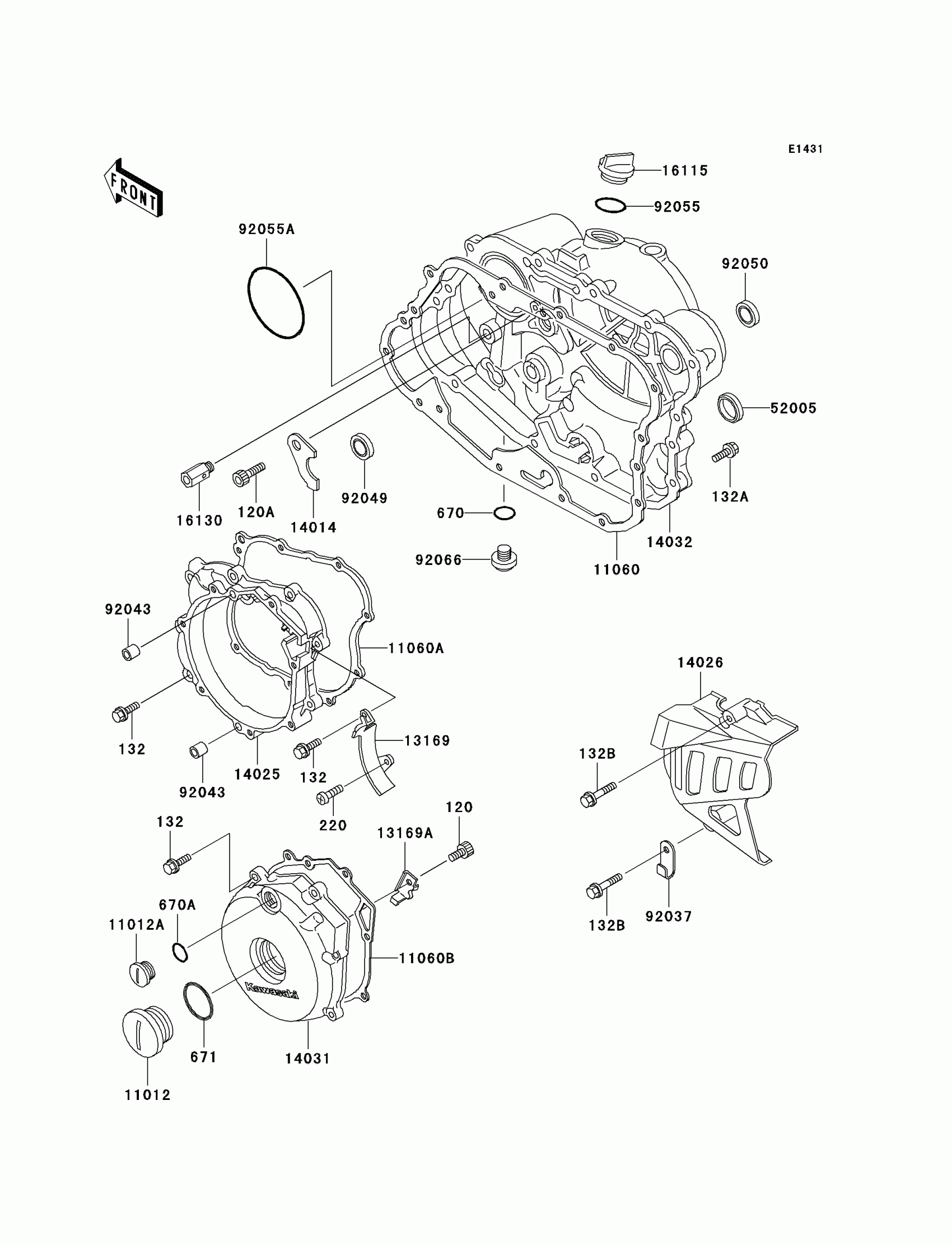

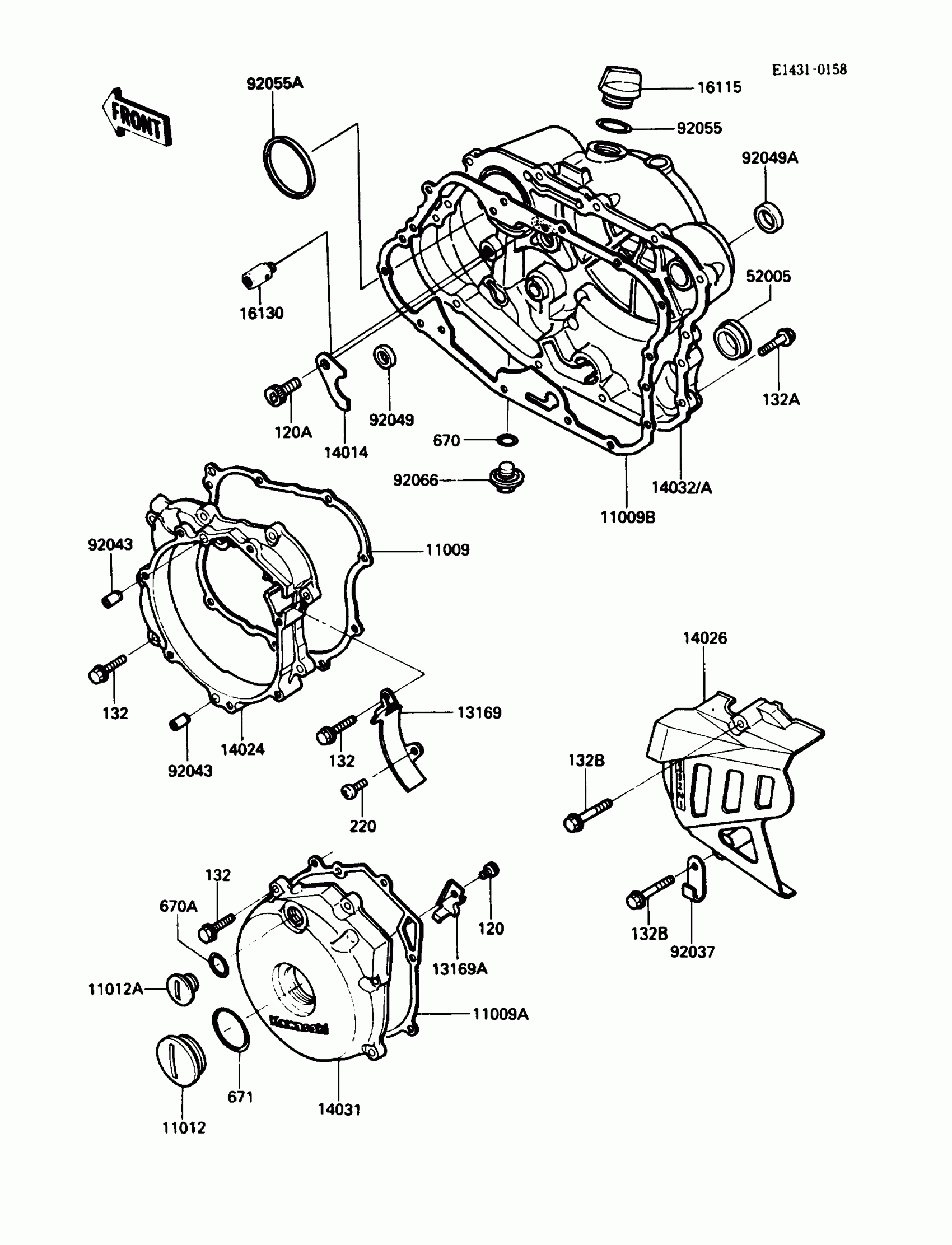

Find the part on the Engine Cover diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,GENERATOR CASE COVER

11009-1435

1
Out of stock

11009A

GASKET,GENERATOR COVER

11009-1436

1
Out of stock

11009B

GASKET,CLUTCH COVER

11009-1437

1
Out of stock

11012

CAP

11012-1362

1

$6.98

In stock

11012A

CAP,TOP MARK

11012-1363

1

$5.15

In stock

13169

PLATE

13169-1879

1

$17.73

In stock

13169A

1

$9.29

In stock

14014

PLATE-POSITION

14014-1062

1
Out of stock

14024

1

$227.16

In stock

14026

COVER-CHAIN

14026-1112

1

$57.78

In stock

14031

COVER-GENERATOR

14031-1238

1

$208.68

In stock

14032

COVER-CLUTCH

14032-1277

1

$318.13

In stock

14032A

COVER-CLUTCH

14032-1227

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

16130

VALVE-ASSY-RELIEF

16130-1001

1

$41.95

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92049

SEAL-OIL

92049-1191

1
Out of stock

92049A

SEAL-OIL

92050-078

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,62.6X66X3.1

92055-1221

1

$7.04

In stock

92066

PLUG,DRAIN

92066-1156

1

$8.93

In stock

120

BOLT-SOCKET

120P0608

1
Out of stock

120A

BOLT-SOCKET,6X10

120P0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132B

BOLT-FLANGED-SMALL

132J0645

1
Out of stock

220

1

$0.63

In stock

670

O RING,11MM

670B2011

1
Out of stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING,40MM

671B2540

1

$4.93

In stock
