1982 Kawasaki KLR250 Crankcase Diagram

← All diagrams

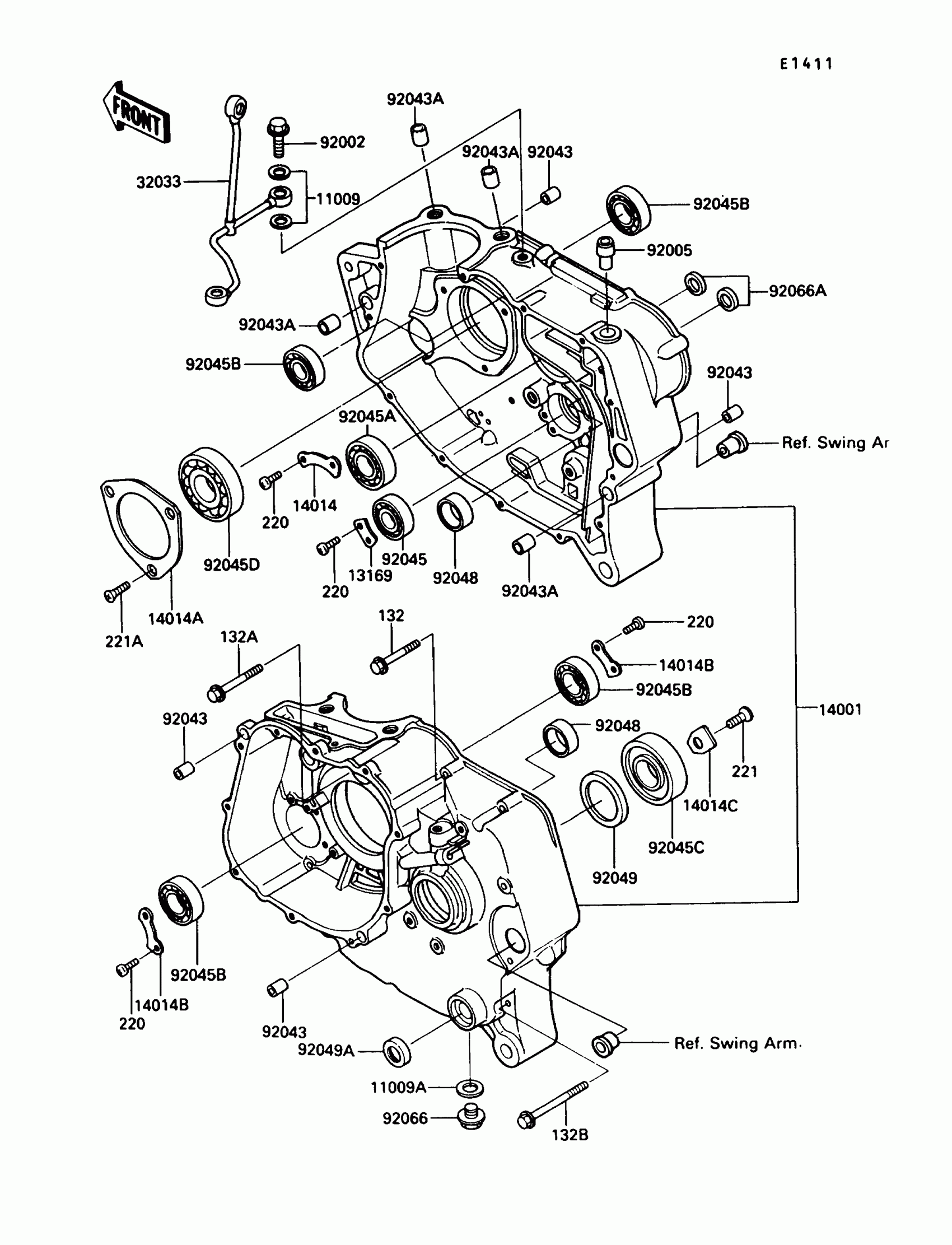

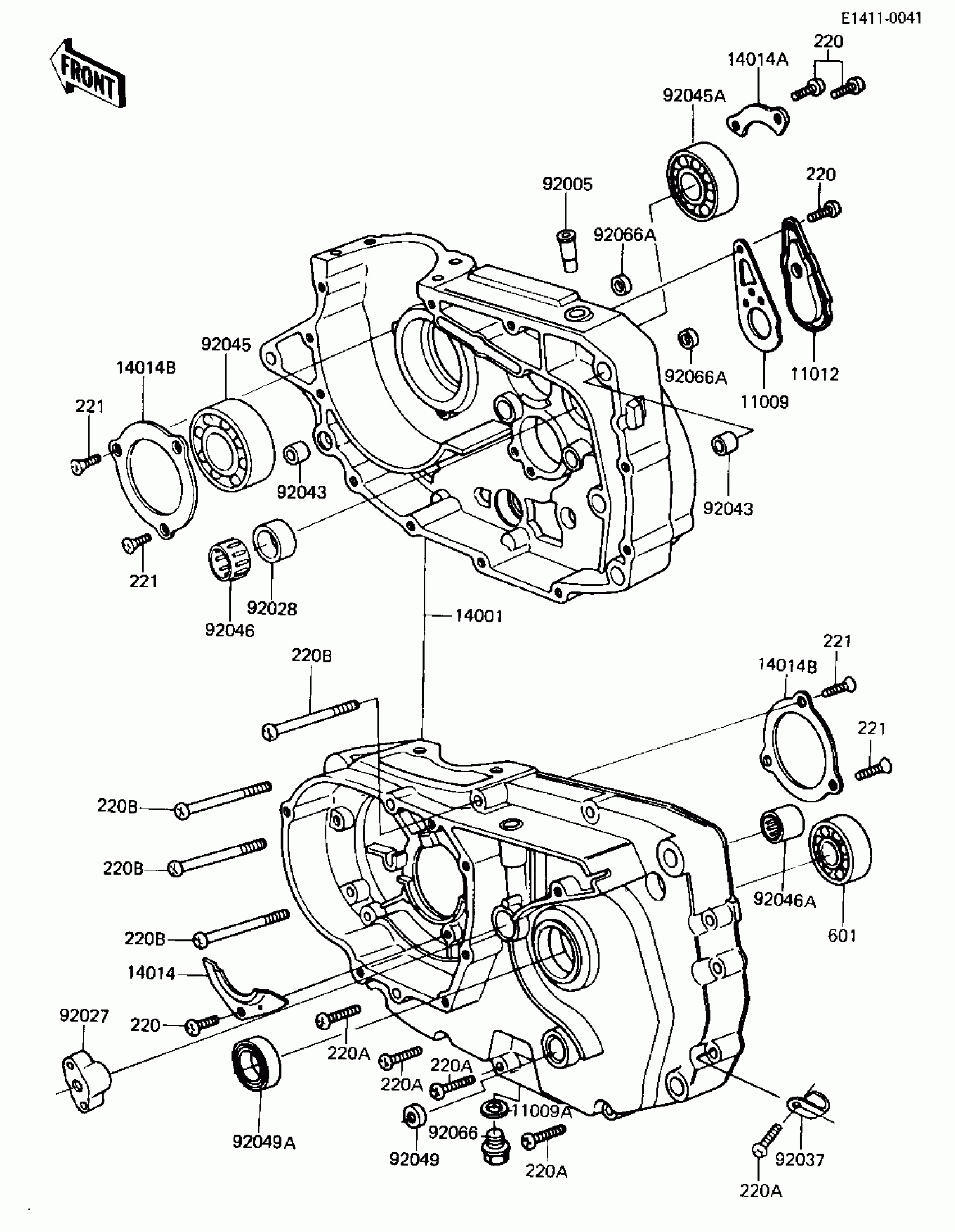

Find the part on the Crankcase diagram for your 1982 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Kawasaki KLR250 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET

16079-002

1
Out of stock

11009A

GASKET,12X22X2

92065-097

1

$0.76

In stock

11012

CAP

16078-002

1

$7.47

In stock

14001

CRANKCASE SET,F.BLACK

14001-5034

1
Out of stock

14014

PLATE,POSITIONING

14014-035

1
Out of stock

14014A

PLATE-POSITION

14014-037

1
Out of stock

14014B

PLATE-POSITION,CRANK BEARING

14014-1004

1
Out of stock

92005

FITTING,BREATHER

14067-006

1

$19.78

In stock

92027

COLLAR,PUSH ROD

92027-1467

1
Out of stock

92028

BUSHING,23X30X13

92028-132

1

$38.79

In stock

92037

1

$3.75

In stock

92043

PIN,DOWEL,14X14

92042-032

1
Out of stock

92045

BEARING-BALL,#6306

92045-037

1

$43.48

In stock

92045A

BEARING,BALL#6006

92045-038

1
Out of stock

92046

BEARING-NEEDLE

92046-1184

1
Out of stock

92046A

BRG,NEEDLE,HMK1515B

92046-060

1
Out of stock

92049

SEAL-OIL

92050-082

1
Out of stock

92049A

SEAL-OIL,TC32457

92049-1159

1
Out of stock

92066

1

$4.88

In stock

92066A

PLUG

92066-1282

1

$5.66

In stock

220

1

$1.32

In stock

220A

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

220B

SCREW-PAN-CROS,6X75

220B0675

1
Out of stock

221

1

$0.63

In stock

601

1

$15.38

In stock
