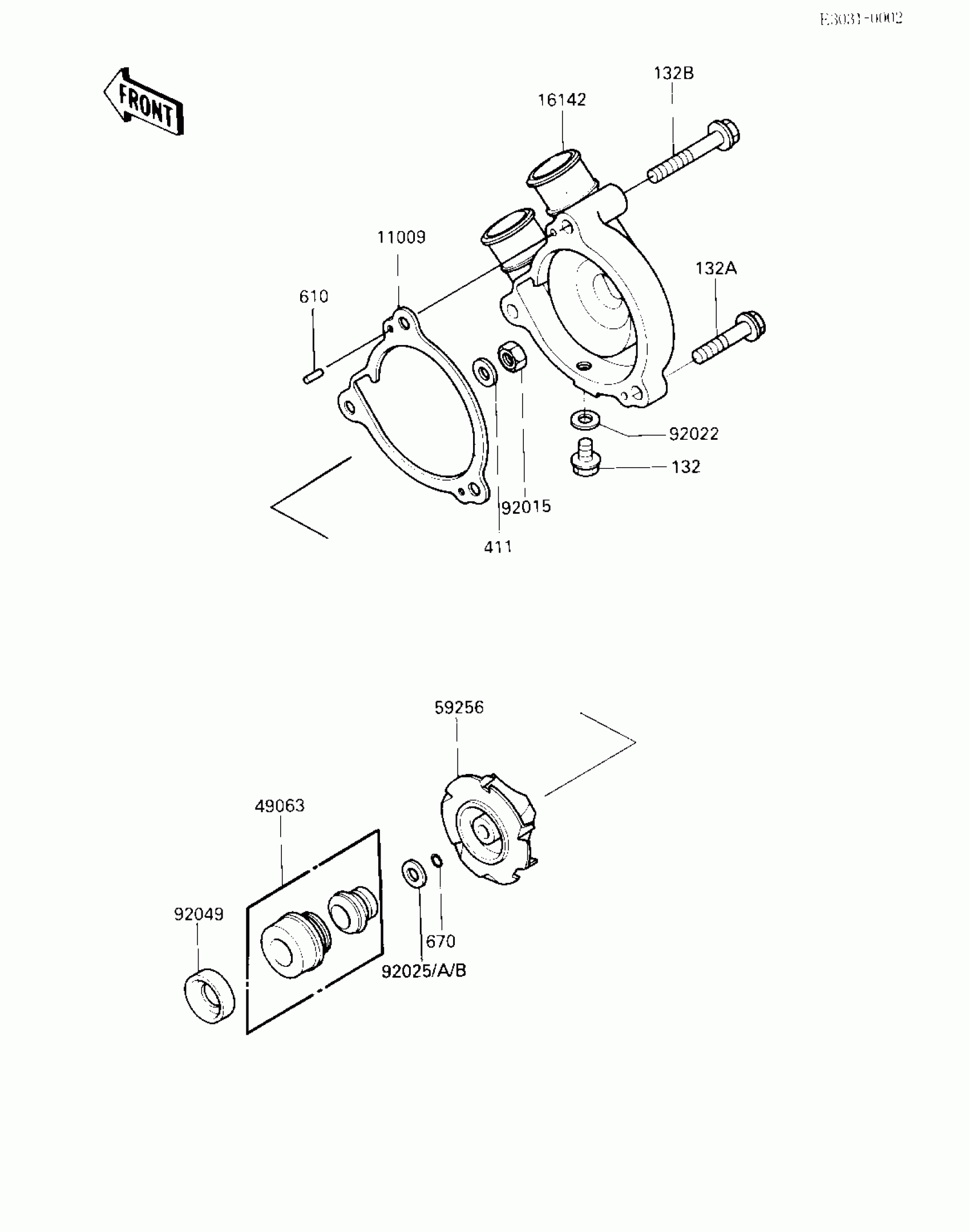

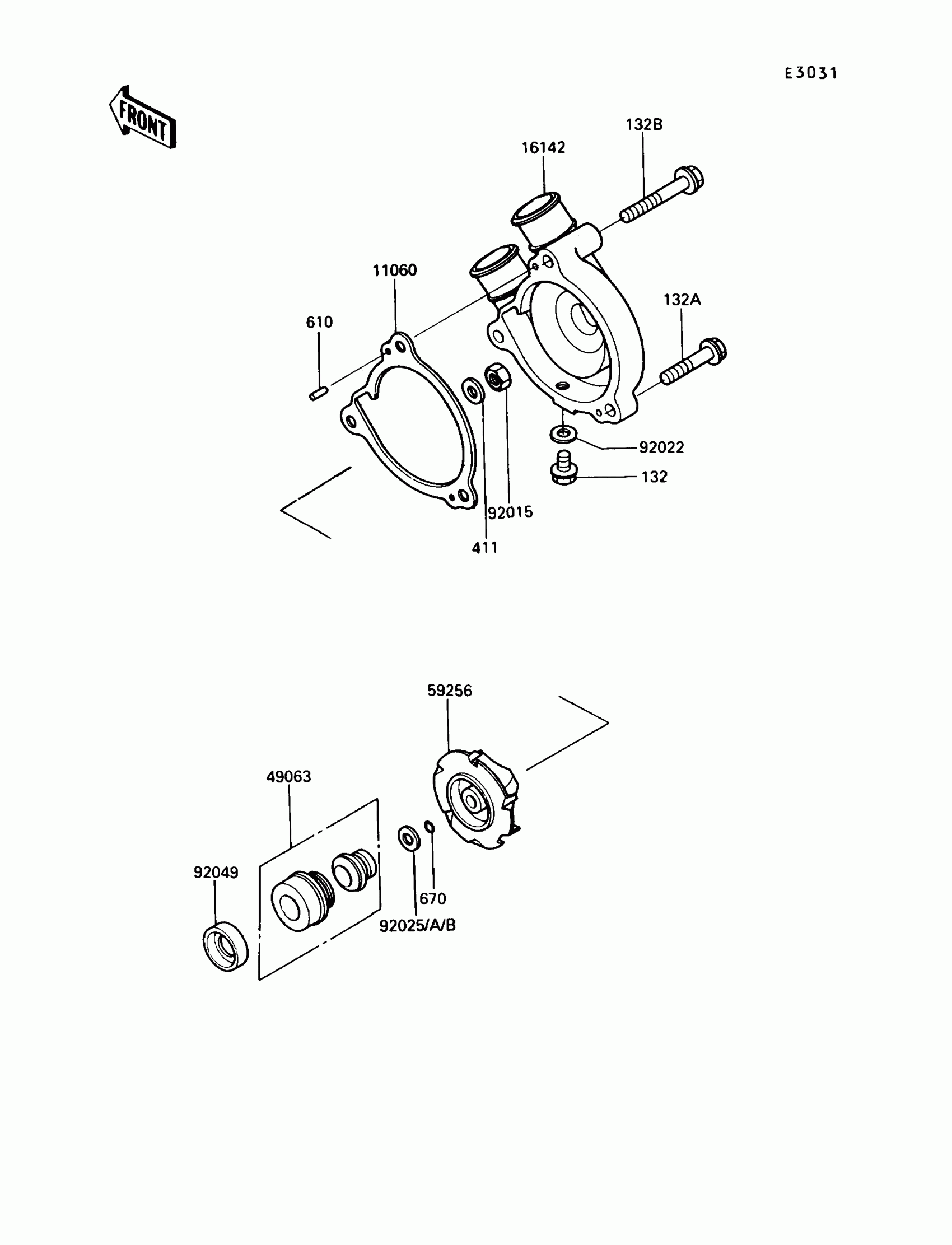

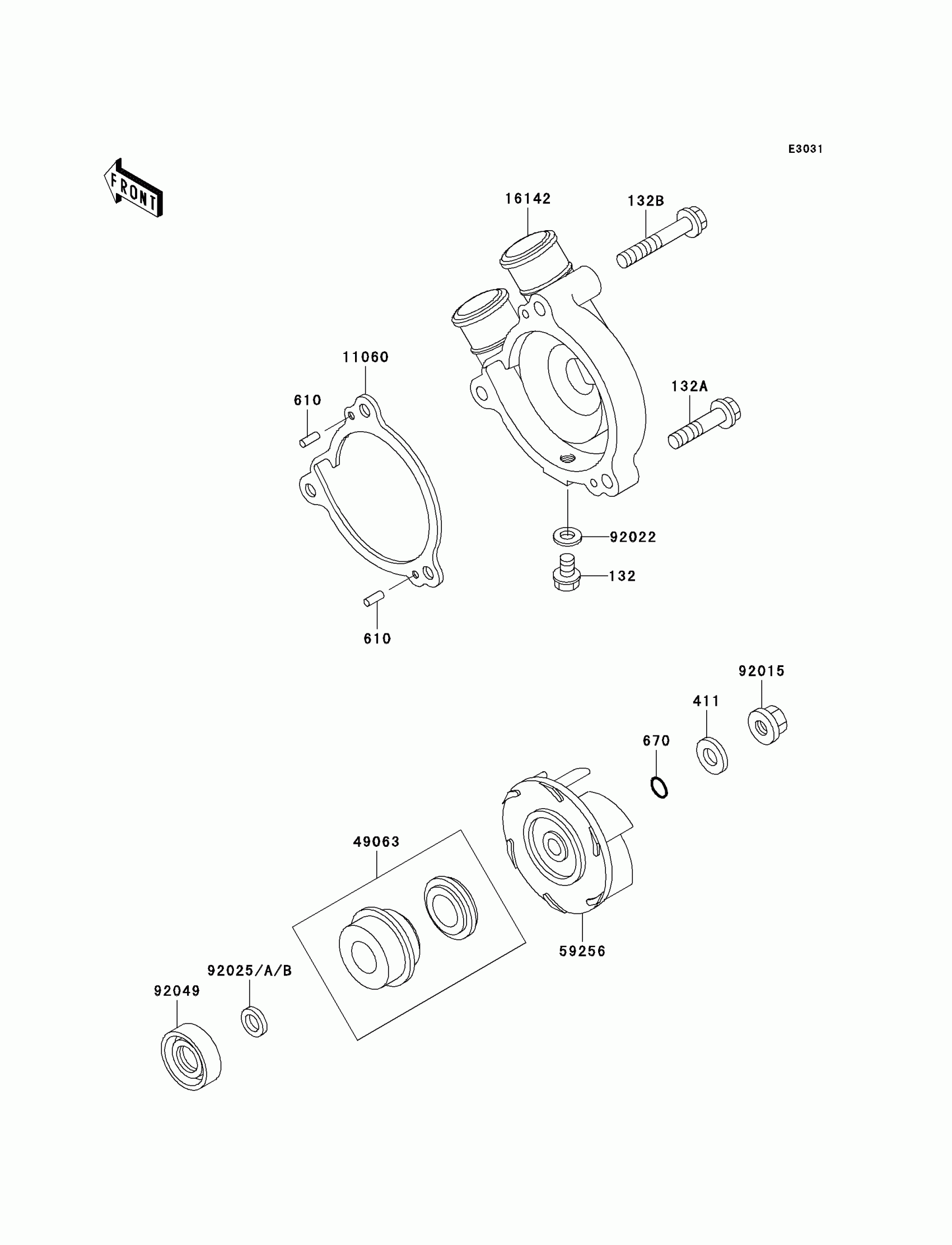

Kawasaki KLR250 WATER PUMP Diagram

Description

Price

11009

GASKET,WATER PUMP

11060-1131

$7.57

16142

COVER-PUMP

16142-1055

$99.07

49063

SEAL-MECHANICAL

49063-1054

$12.56

59256

IMPELLER

59256-1055

$27.07

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.76

92025

SHIM,T=1.4

92025-1506

Unavailable

92025A

SHIM,T=0.8

92025-1507

Unavailable

92025B

SHIM,T=0.3

92025-1508

Unavailable

92049

SEAL-OIL,SC10227

92049-1157

$7.08

132

BOLT-FLANGED-SMALL,6X8

132J0608

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL

132J0645

Unavailable

411

WASHER PLAIN

411F0600

$0.95

610

ROLLER,4X8

610A0408

$3.29

670

O RING,6MM

670B1506

$0.98
