1989 Kawasaki KLR250 Cylinder/piston Diagram

← All diagrams

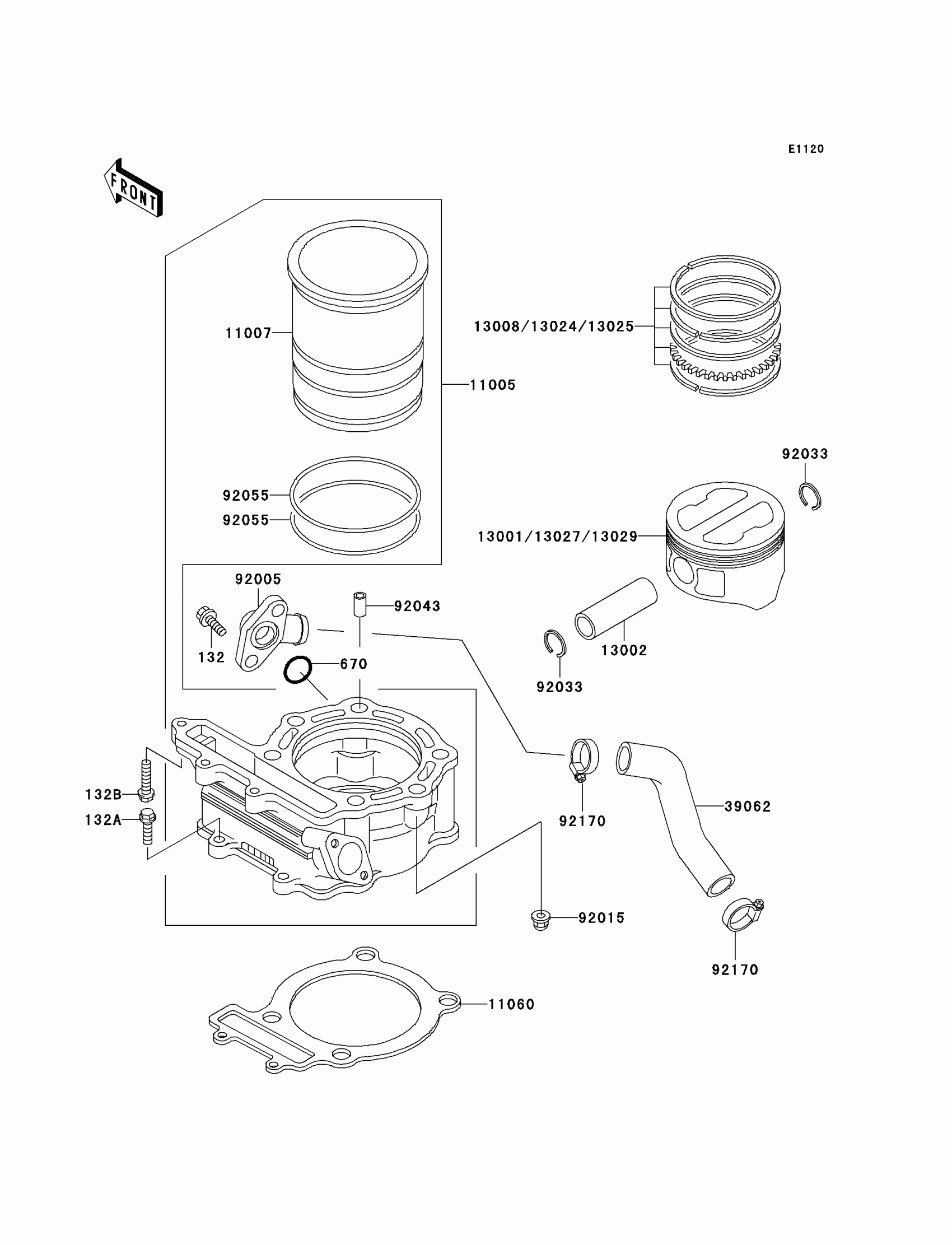

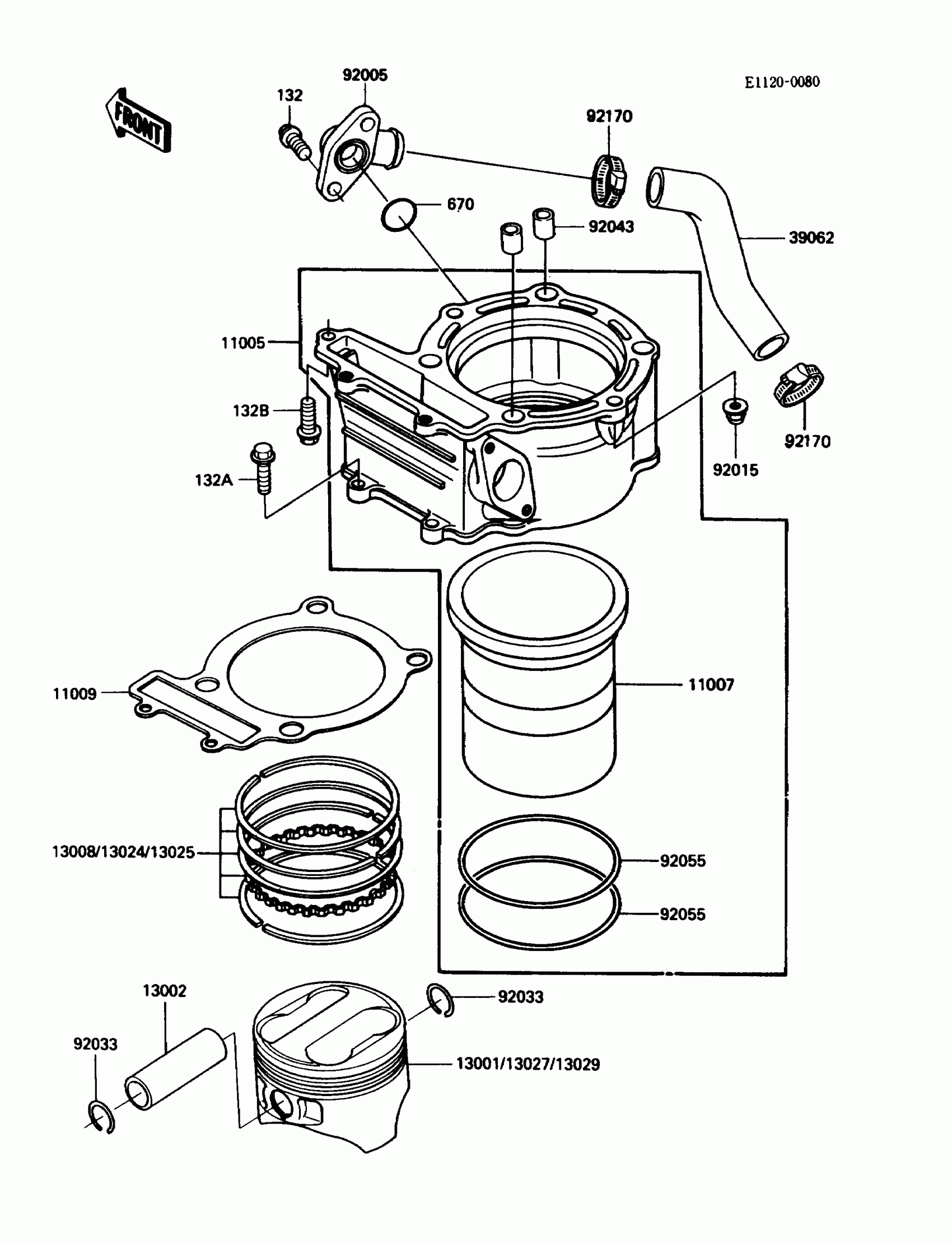

Find the part on the Cylinder/piston diagram for your 1989 Kawasaki KLR250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki KLR250 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1387

1

$596.49

In stock

11007

LINER-CYLINDER

11007-1070

1

$148.51

In stock

11009

GASKET,CYLINDER BASE

11009-1440

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1280

1

$131.10

In stock

13002

1

$23.71

In stock

13008

RING-SET-PISTON,STD

13008-1066

1

$73.41

In stock

13024

1

$79.14

In stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1065

1
Out of stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-1152

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1175

1
Out of stock

39062

HOSE-COOLING

39062-1082

1

$22.41

In stock

92005

FITTING

92005-1122

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92033

RING-SNAP

92033-1182

1

$3.90

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,80.6X2.4

92055-1247

1

$12.47

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

670

O RING,18MM

670B2018

1

$1.25

In stock
