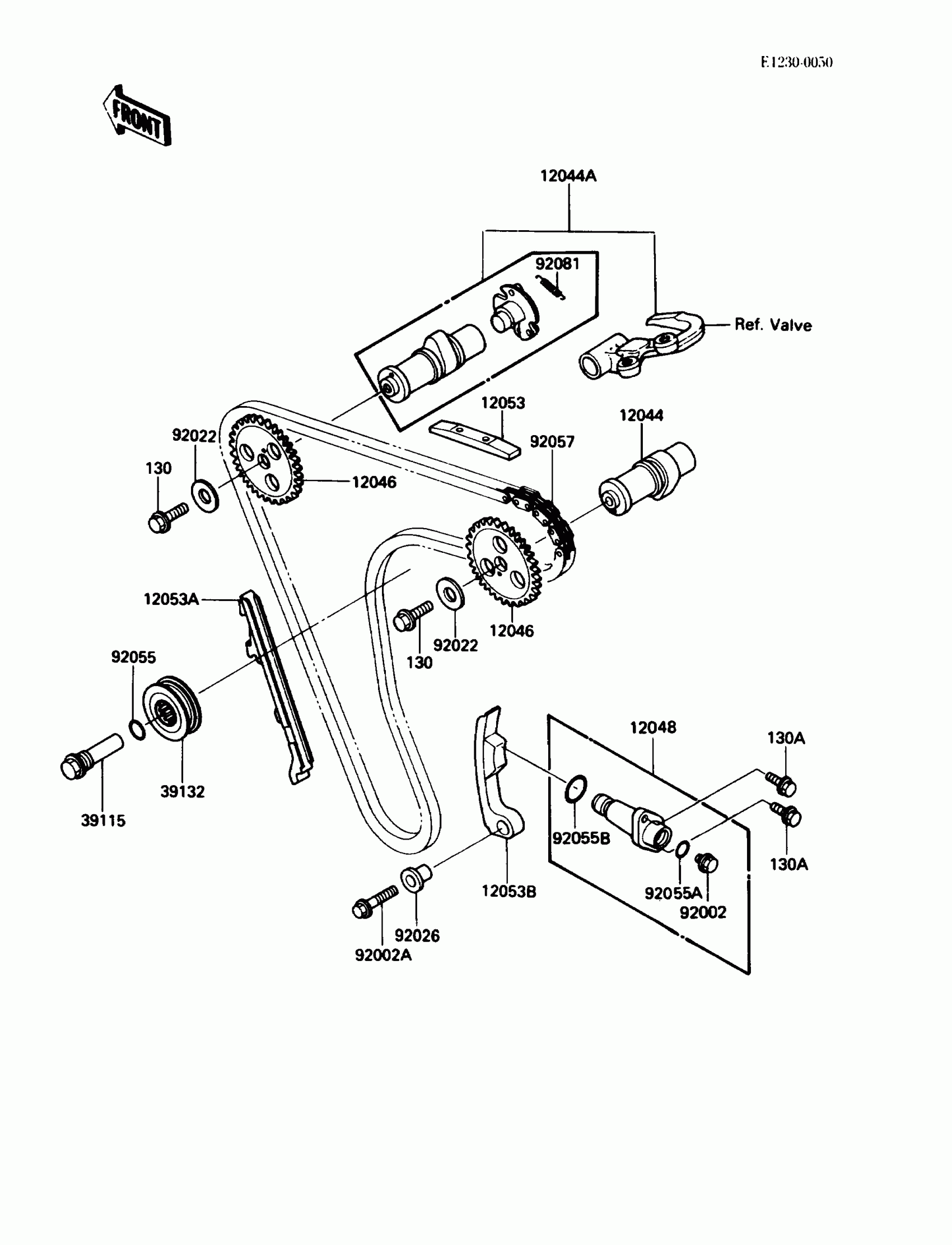

Kawasaki KLR250 Camshaft(s)/Tensioner Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-1119

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-5006

Unavailable

12046

SPROCKET,42T

12046-1063

$55.71

12048

TENSIONER-ASSY,CAM CHAIN

12048-1066

$119.70

12053

GUIDE-CHAIN,UPP

12053-1107

$18.17

12053A

GUIDE-CHAIN,FR

12053-1125

Unavailable

12053B

GUIDE-CHAIN,RR

12053-1126

$92.86

39115

SHAFT-IDLER

39115-1051

$35.39

39132

SPROCKET-ASSY-IDLER

39132-1052

$80.78

92002

BOLT,TENSIONER

92002-1302

$7.56

92002A

BOLT

92002-1478

$7.15

92022

WASHER,10X22X3

92022-1365

$4.85

92026

SPACER,L=28.3

92026-1231

$18.00

92055

RING-O,ID=13.8

92055-1141

$2.99

92055A

RING-O,TENSIONER BOLT

92055-1248

$1.41

92055B

RING-O,TENSIONER

92055-1249

$5.13

92057

CHAIN,CAM,79RH2010-158L

92057-1170

$102.63

92081

SPRING,DECOMPRESSOR

92081-1626

Unavailable

130

BOLT-FLANGED,10X25

130G1025

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable
