2022 Kawasaki KLR®650 Adventure Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2022 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

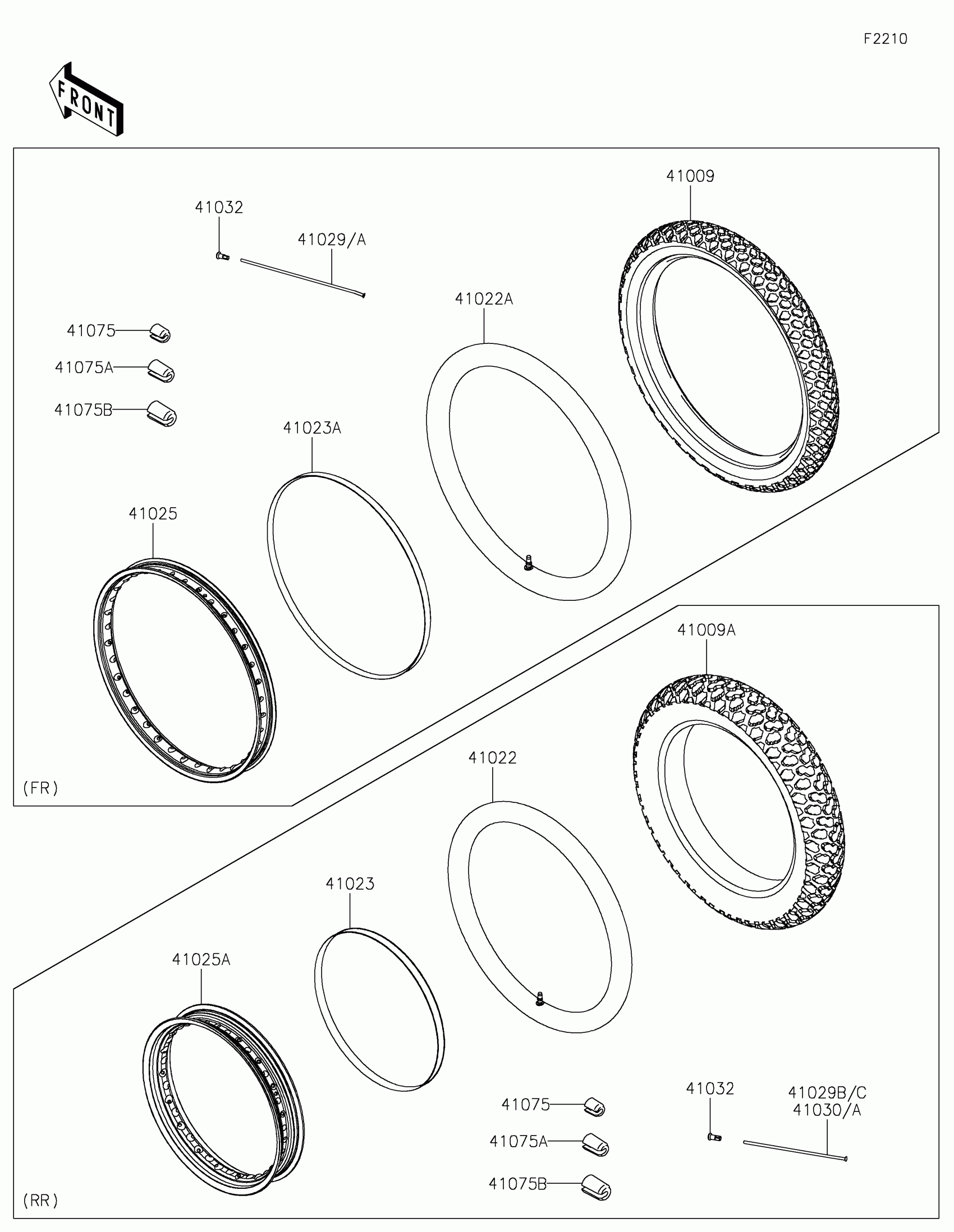

2022 Kawasaki KLR®650 Adventure Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

1

$77.40

In stock

41009A

1

$103.26

In stock

41022

1

$18.33

In stock

41022A

TUBE-TIRE,3.00-21(D),SNI

41022-0095

1
Out of stock

41023

BAND-RIM,17XWM/MT2.15-2.50(D)

41023-0001

1
Out of stock

41023A

BAND-RIM,21XWM1.60-1.85(D)

41023-1144

1
Out of stock

41025

RIM,FR,1.60X21,BLACK

41025-0033-WC

1
Out of stock

41025A

RIM,RR,2.50X17

41025-0419

1
Out of stock

41029

SPOKE-INNER,FR,LH,4X236

41029-0065

1
Out of stock

41029A

SPOKE-INNER,FR,RH,4X239

41029-0066

1
Out of stock

41029B

SPOKE-INNER,RR,LH,4X157

41029-0117

1
Out of stock

41029C

SPOKE-INNER,RR,RH,4X181

41029-0118

1
Out of stock

41030

SPOKE-OUTER,RR,LH,4X157

41030-0033

1
Out of stock

41030A

SPOKE-OUTER,RR,RH,4X178.5

41030-0034

1
Out of stock

41032

NIPPLE-SPOKE

41032-0013

1

$2.66

In stock

41075

BALANCER-WHEEL,10G

41075-0011

—
Out of stock

41075A

BALANCER-WHEEL,20G

41075-0012

—
Out of stock

41075B

BALANCER-WHEEL,30G

41075-0013

—
Out of stock
