2023 Kawasaki KLR®650 Adventure Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

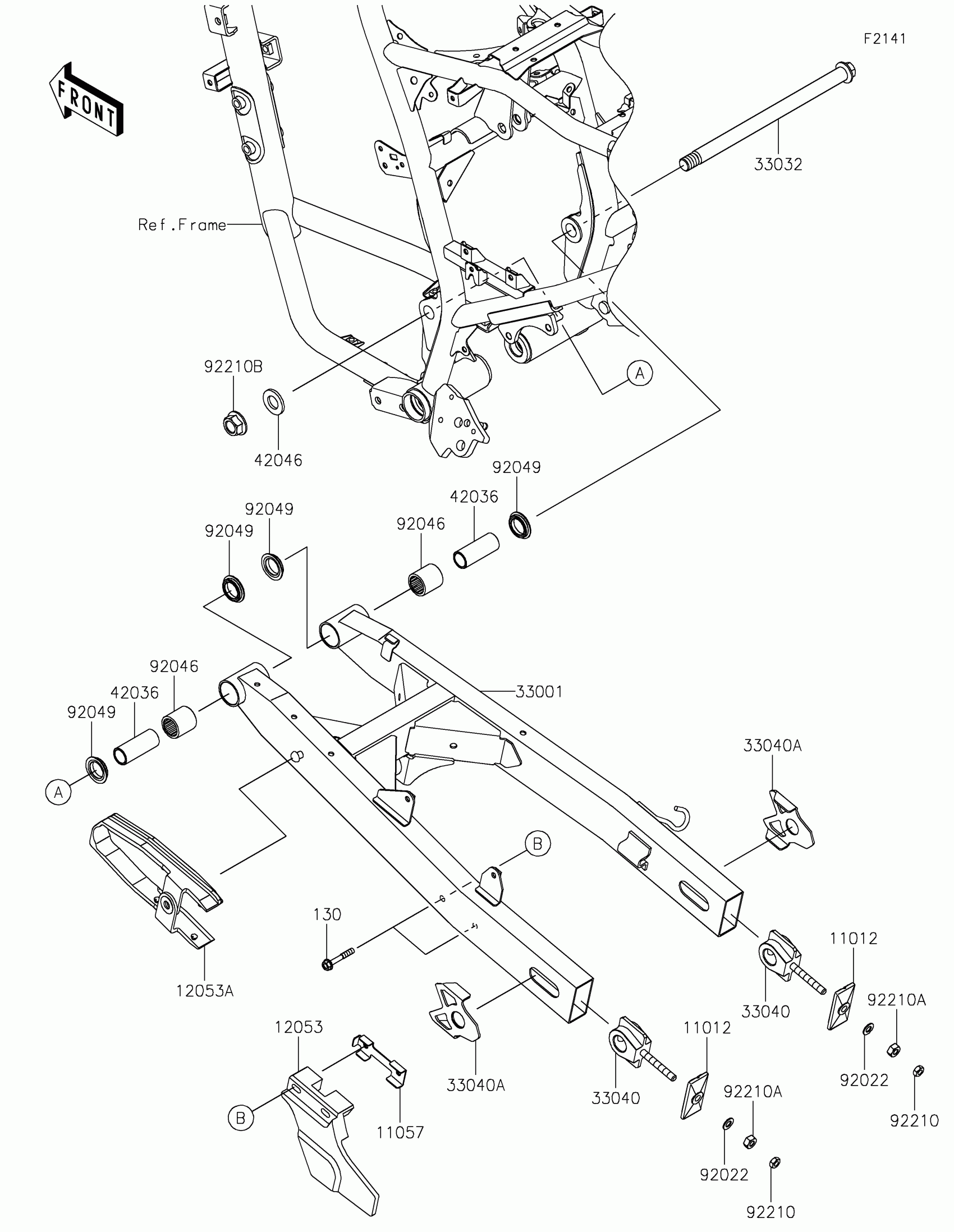

2023 Kawasaki KLR®650 Adventure Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

1
Out of stock

11057

BRACKET,CHAIN GUIDE

11057-7405

1
Out of stock

12053

GUIDE-CHAIN,RR

12053-0222

1
Out of stock

12053A

GUIDE-CHAIN,FR

12053-0313

1
Out of stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0733-18R

1
Out of stock

33032

SHAFT-SWING ARM

33032-0066

1
Out of stock

33040

ADJUSTER-CHAIN

33040-0098

1
Out of stock

33040A

ADJUSTER-CHAIN,F.S.BLACK

33040-0099-18R

1
Out of stock

42036

SLEEVE,17.1X22X55.5

42036-0859

1
Out of stock

42046

WASHER,17.3X32X3.2

42046-009

1
Out of stock

92022

WASHER,8.5X16X1.2

92022-1582

1
Out of stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

1
Out of stock

92210

NUT,8MM,5X12

92210-1588

1
Out of stock

92210A

NUT,8MM,6.5X14

92210-1589

1
Out of stock

92210B

NUT,FLANGED,16MM

92210-1817

1
Out of stock

130

BOLT-FLANGED,6X40

130BA0640

1

$1.12

In stock
