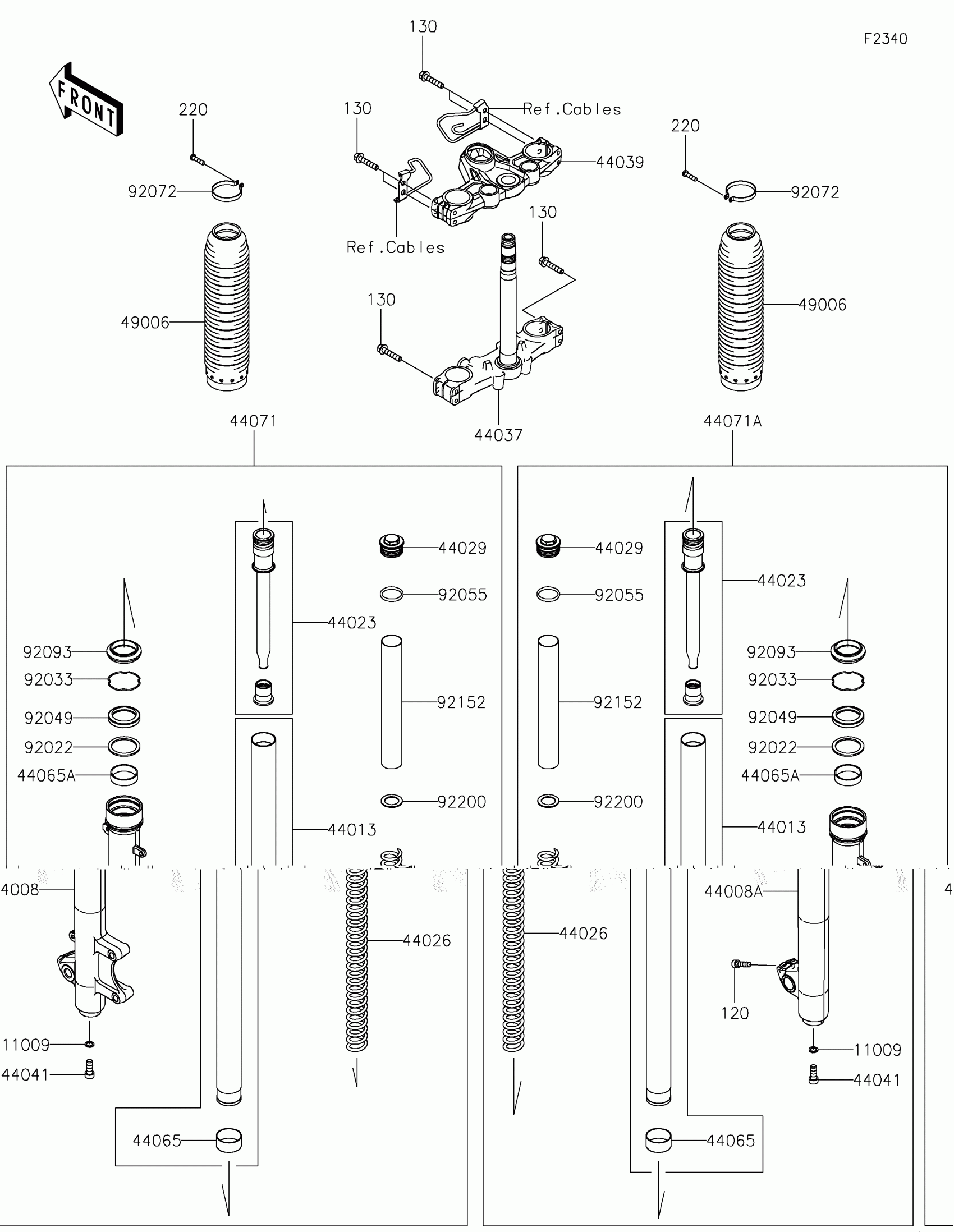

Find the part on the Front Fork diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

44008

PIPE-FORK OUTER

44008-0097

1
Out of stock

44008A

PIPE-FORK OUTER

44008-0098

1
Out of stock

44013

PIPE-FORK INNER

44013-0107

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0177

1
Out of stock

44026

SPRING-FRONT FORK

44026-0268

1
Out of stock

44029

SEAT-FORK SPRING

44029-0005

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0206

1
Out of stock

44039

HOLDER-FORK UPPER

44039-0202

1
Out of stock

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

1
Out of stock

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

1
Out of stock

44071

DAMPER-ASSY,FORK,LH

44071-1487

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH

44071-1488

1
Out of stock

49006

BOOT

49006-0645

1
Out of stock

92022

WASHER,FORK OUTER TUBE

92022-1298

1
Out of stock

92033

RING-SNAP

92033-1036

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

1
Out of stock

92055

RING-O

92055-1321

1
Out of stock

92072

BAND,BOOT

92072-1077

1
Out of stock

92093

SEAL,DUST

92093-0036

1
Out of stock

92152

COLLAR,FORK

92152-0410

1
Out of stock

92200

WASHER

92200-1467

1
Out of stock

120

BOLT-SOCKET,8X30

120CA0830

1
Out of stock

130

BOLT-FLANGED,8X40

130BA0840

1

$1.68

In stock

220

SCREW-PAN-CROS,4X16

220AB0416

1
Out of stock
