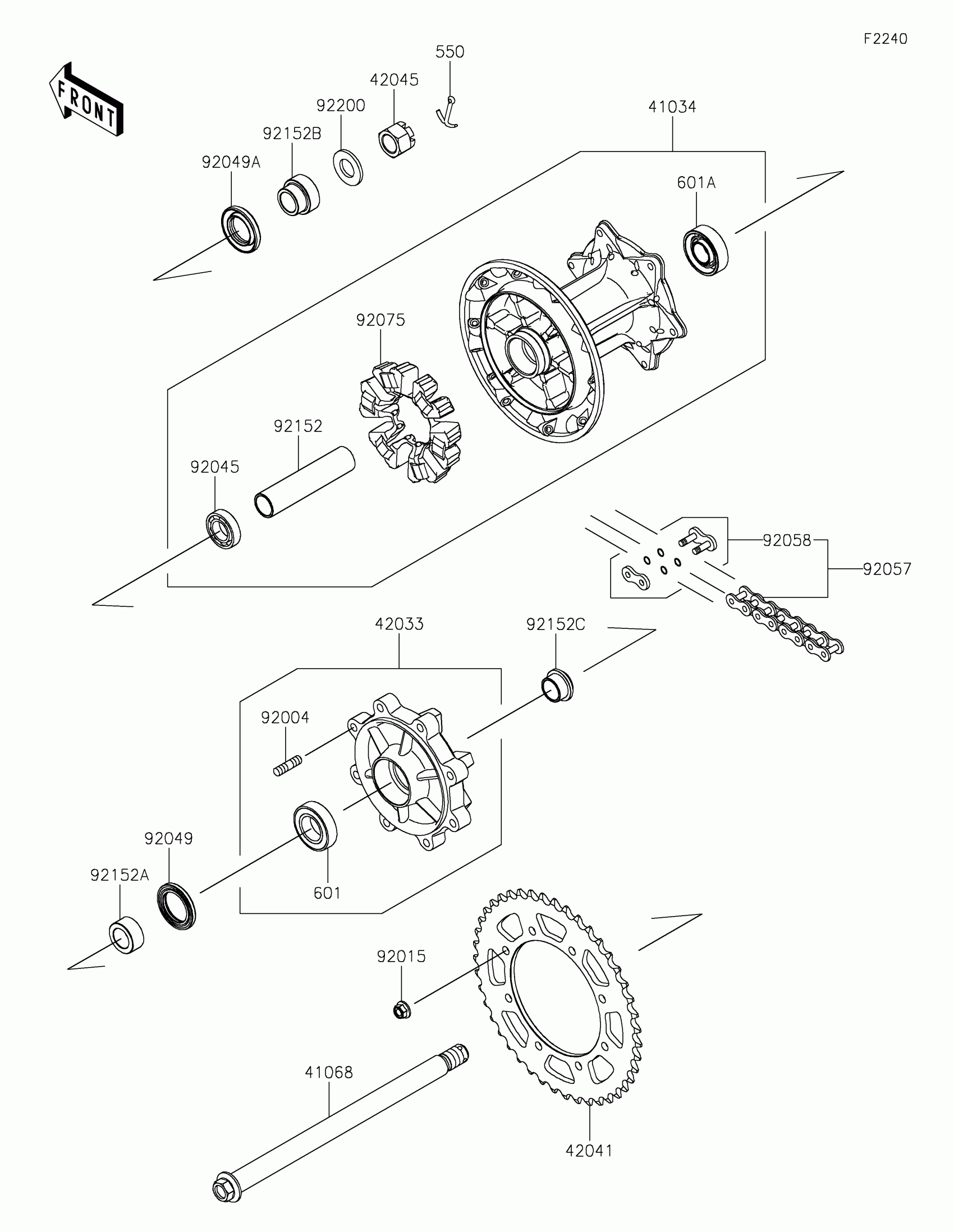

Kawasaki KLR®650 Adventure Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR

41034-0609

$624.73

41068

AXLE,RR

41068-0659

$111.51

42033

COUPLING-ASSY,REAR HUB

42033-0596

$227.21

42041

SPROCKET-HUB,43T

42041-0185

$75.39

42045

NUT,CASTLE,18MM

42045-018

$7.01

92004

STUD,8X16

92004-1150

$4.14

92015

NUT,8MM

92015-1432

$4.93

92045

BEARING-BALL,20X37X9

92045-0942

$33.76

92049

SEAL-OIL,32X47X5

92049-0795

$10.31

92049A

SEAL-OIL,27X47X7

92049-0802

$7.20

92057

CHAIN,DRIVE,520VEX110L

92057-0806

$164.81

92058

JOINT-CHAIN

92058-0044

$13.00

92075

DAMPER,SHOCK,RR HUB

92075-1068

$42.39

92152

COLLAR,20.2X28X110.5

92152-2735

$12.71

92152A

COLLAR,LH

92152-2736

$10.14

92152B

COLLAR,RH

92152-2737

$23.02

92152C

COLLAR,COUPLING

92152-2738

Unavailable

92200

WASHER,19X36X3.2

92200-0296

$1.85

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,#6005UU

601B6005UU

$22.38

601A

BEARING-BALL,#6204UG

601B6204UG

Unavailable
