2023 Kawasaki KLR®650 Adventure Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

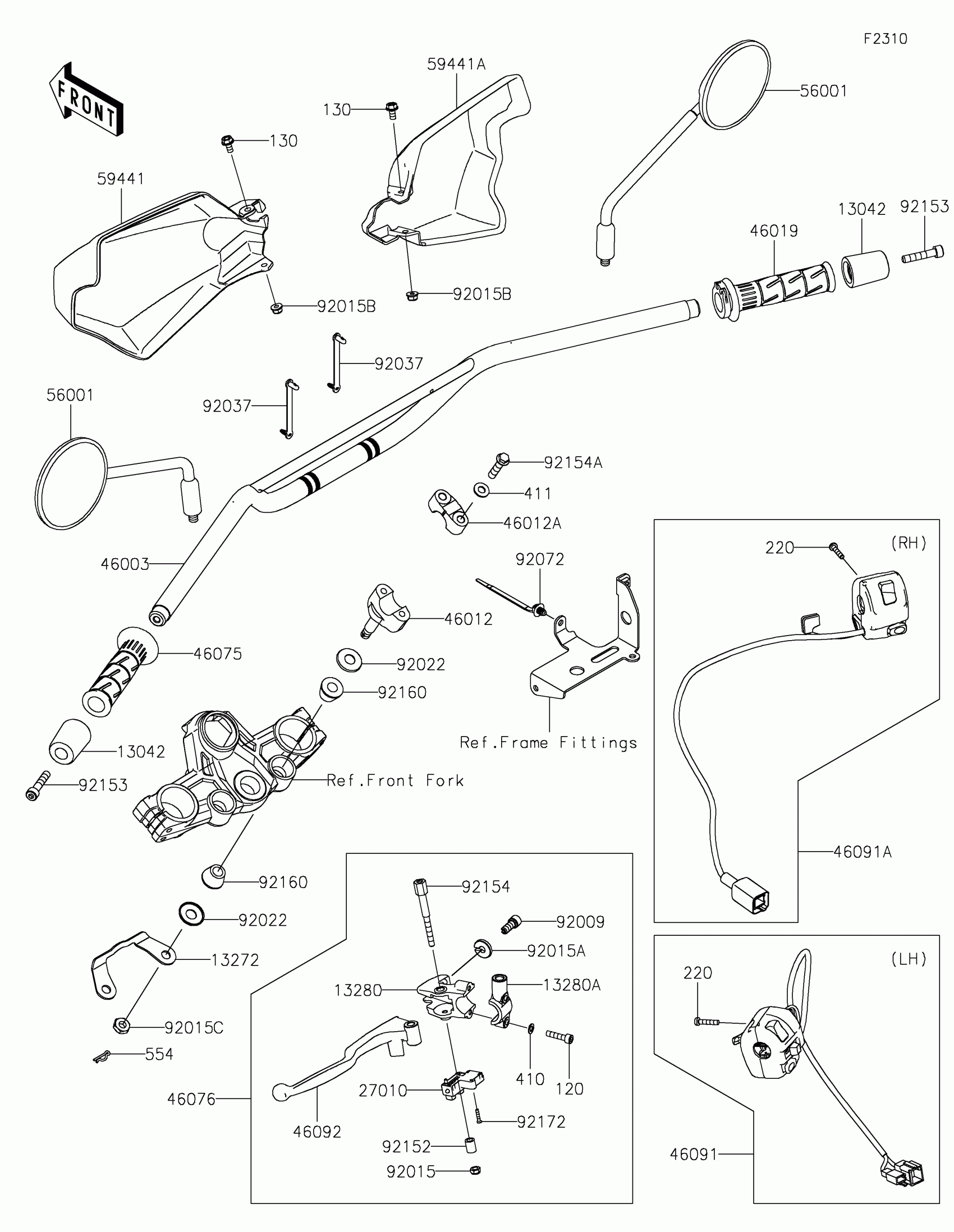

2023 Kawasaki KLR®650 Adventure Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-5007

1
Out of stock

13272

PLATE,STABILIZER

13272-3799

1
Out of stock

13280

HOLDER,LEVER

13280-0929

1
Out of stock

13280A

HOLDER,MIRROR

13280-0930

1
Out of stock

27010

SWITCH,CLUTCH

27010-0729

1
Out of stock

46003

HANDLE

46003-0793

1
Out of stock

46012

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0075-18R

1
Out of stock

46012A

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0380-18R

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-0060

1

$29.71

In stock

46075

GRIP,HANDLE,LH

46075-0564

1

$18.54

In stock

46076

LEVER-ASSY-GRIP

46076-0183

1
Out of stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0552

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,RH

46091-0553

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-0583

1
Out of stock

56001

MIRROR-ASSY

56001-0444

1
Out of stock

59441

COVER-HANDLE,LH,EBONY

59441-0304-68L

1
Out of stock

59441A

COVER-HANDLE,RH,EBONY

59441-0307-68L

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92015C

NUT,LOCK,10MM

92015-1962

1
Out of stock

92022

WASHER

92022-1737

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92152

COLLAR,6.5X10.5X14

92152-2848

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-1901

1
Out of stock

92154

BOLT

92154-2359

1
Out of stock

92154A

BOLT,FLANGED,8X35

92154-3964

1
Out of stock

92160

DAMPER,HANDLE HOLDER

92160-1544

1
Out of stock

92172

SCREW,3X16

92172-0183

1
Out of stock

120

BOLT-SOCKET,6X25

120CB0625

1
Out of stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

220

SCREW-PAN-CROS,5X25

220AB0525

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410AB0600

1
Out of stock

411

WASHER-PLAIN,8.5X18X1.6

411AB0800

1
Out of stock

554

PIN-SNAP

554DA0800

1
Out of stock
