2023 Kawasaki KLR®650 Adventure Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

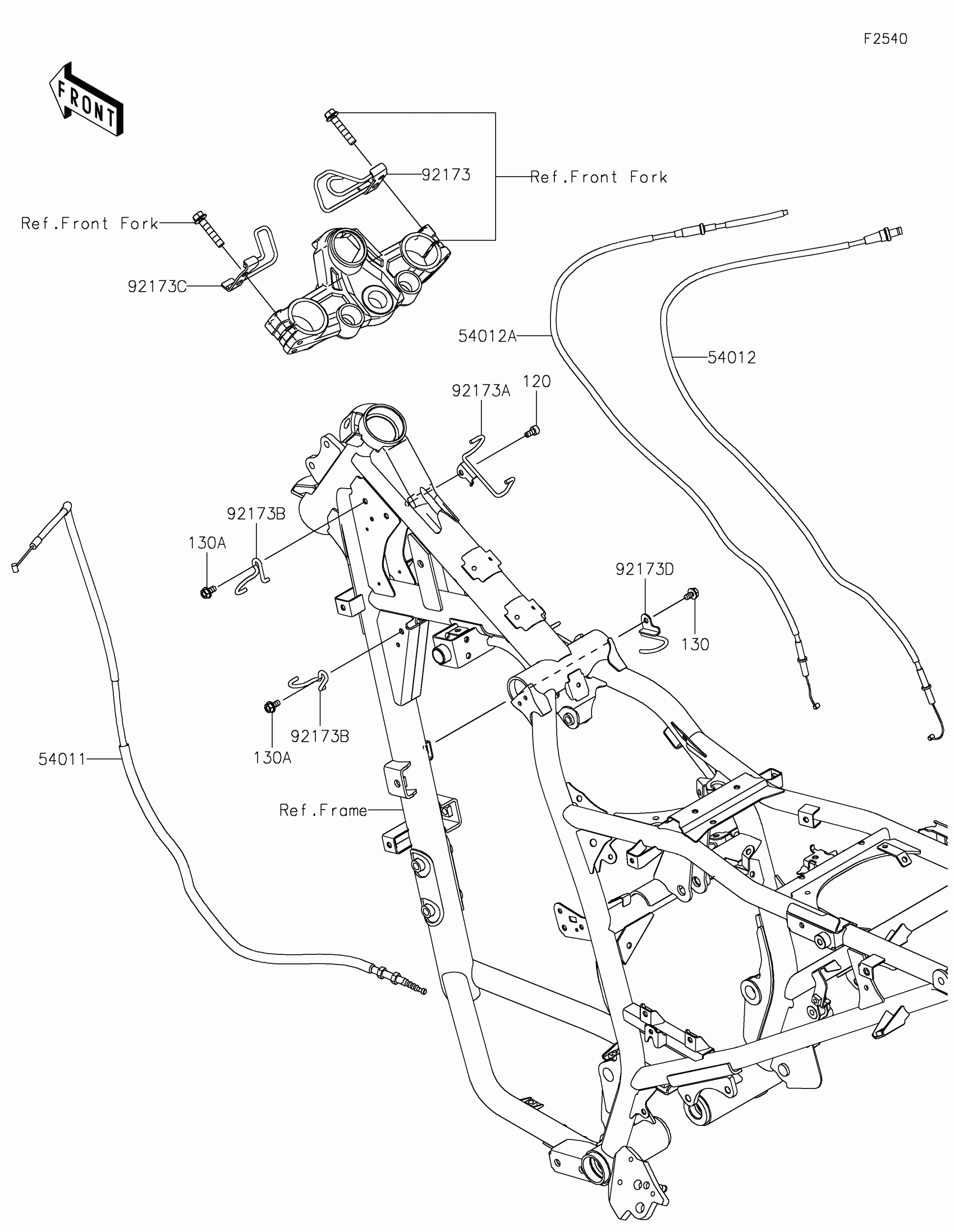

2023 Kawasaki KLR®650 Adventure Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54011

CABLE-CLUTCH

54011-0655

1
Out of stock

54012

CABLE-THROTTLE,PULL

54012-0717

1
Out of stock

54012A

CABLE-THROTTLE,RETURN

54012-0718

1
Out of stock

92173

CLAMP,UPP BRACKET,RH

92173-2354

1
Out of stock

92173A

CLAMP,THROTTLE CABLE

92173-2356

1
Out of stock

92173B

CLAMP,CLUTCH CABLE

92173-2358

1
Out of stock

92173C

CLAMP,UPP BRACKET,LH

92173-2396

1
Out of stock

92173D

CLAMP,CLUTCH CABLE

92173-2398

1
Out of stock

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock
