2023 Kawasaki KLR®650 Adventure Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

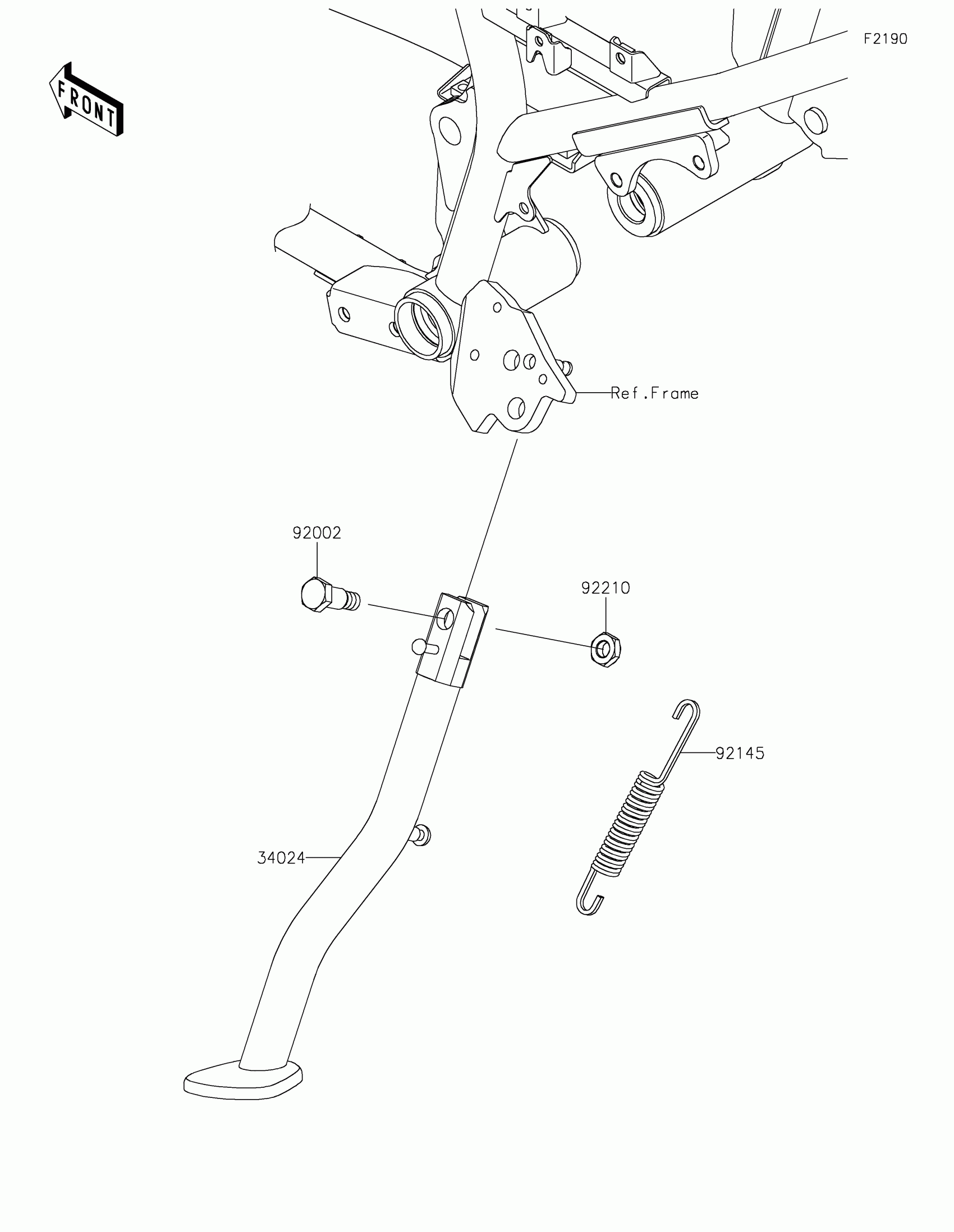

2023 Kawasaki KLR®650 Adventure Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE,F.S.BLACK

34024-0171-18R

1
Out of stock

92002

BOLT,SIDE STAND

92002-1813

1
Out of stock

92145

SPRING,SIDE STAND

92145-0085

1
Out of stock

92210

NUT,LOCK,10MM

92210-1184

1
Out of stock
