2022 Kawasaki KLR®650 Adventure Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2022 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

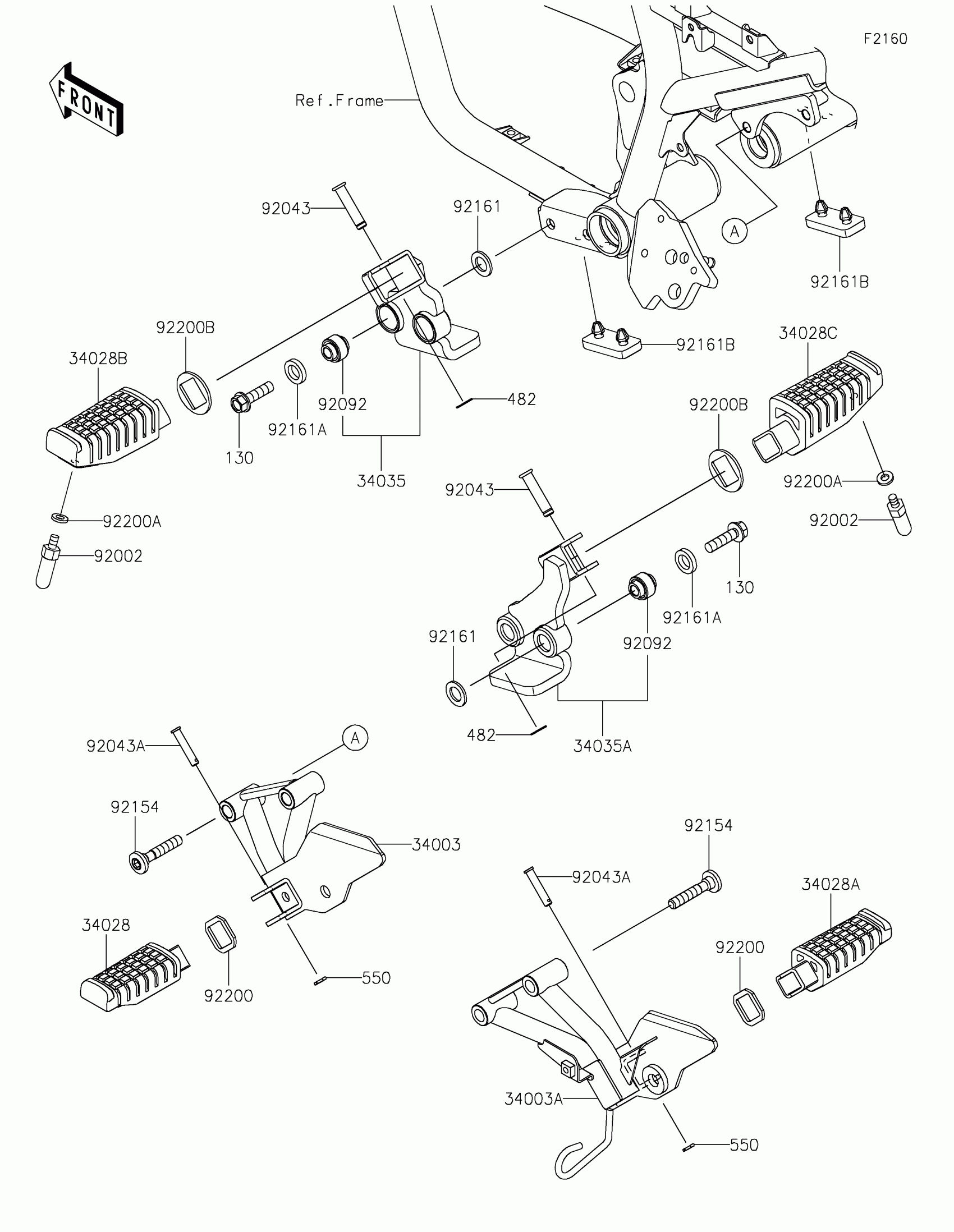

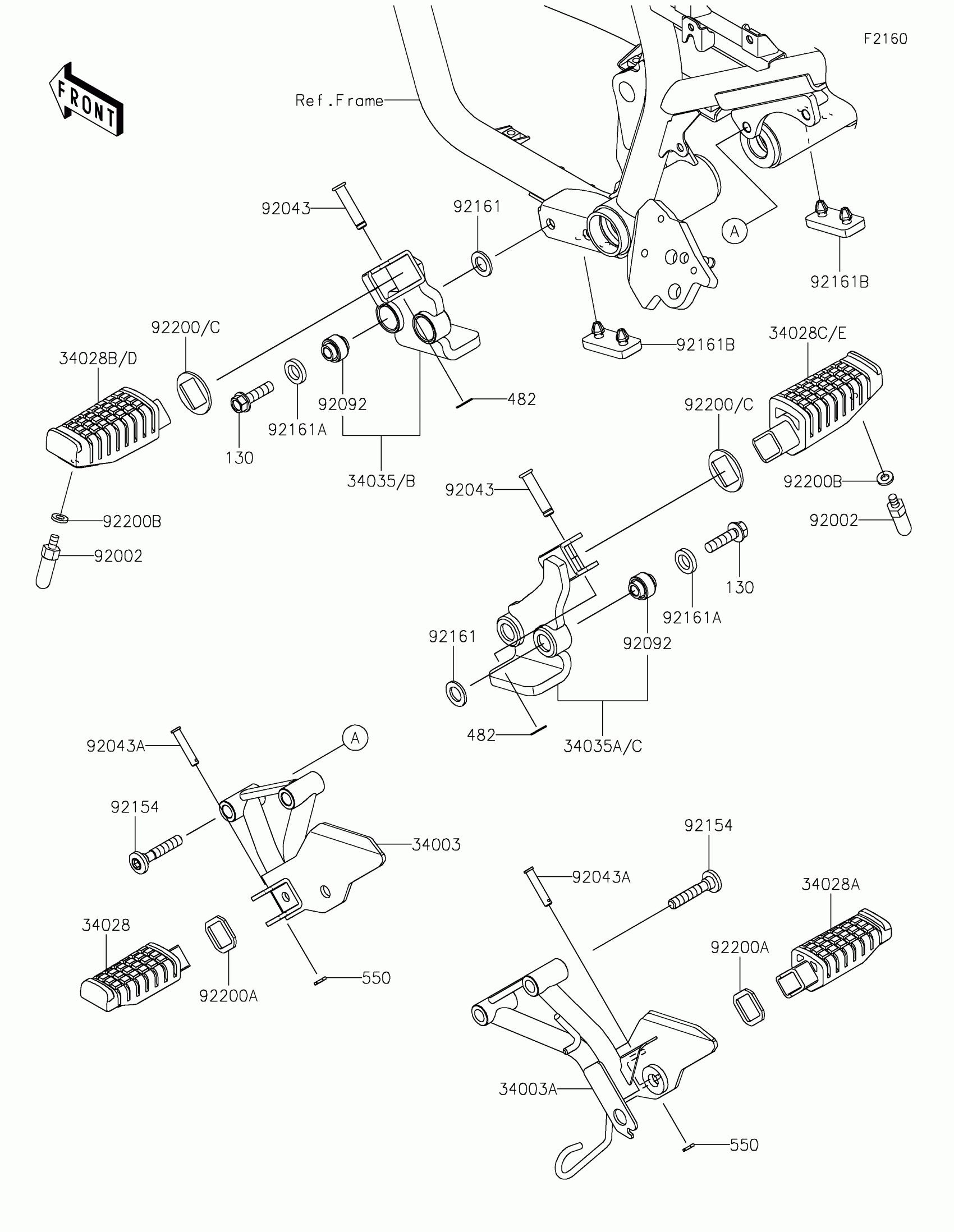

2022 Kawasaki KLR®650 Adventure Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,RR,LH,F.S.BLACK

34003-0185-18R

1
Out of stock

34003A

HOLDER-STEP,RR,RH,F.S.BLACK

34003-0193-18R

1
Out of stock

34028

STEP,RR,LH

34028-0134

1

$36.70

In stock

34028A

STEP,RR,RH

34028-0135

1

$32.95

In stock

34028B

STEP,FR,LH

34028-0136

1

$37.69

In stock

34028C

STEP,FR,RH

34028-0137

1

$37.69

In stock

34028D

STEP,FR,LH

34028-0402

1
Out of stock

34028E

STEP,FR,RH

34028-0403

1
Out of stock

34035

HOLDER-ASSY-STEP,FR,LH

34035-0001

1
Out of stock

34035A

HOLDER-ASSY-STEP,FR,RH

34035-0002

1
Out of stock

34035B

HOLDER-ASSY-STEP,FR,LH

34035-0003

1
Out of stock

34035C

HOLDER-ASSY-STEP,FR,RH

34035-0004

1
Out of stock

92002

BOLT,BANK SENSOR

92002-1995

1
Out of stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92043A

PIN,6X28

92043-1464

1
Out of stock

92092

BUSHING-RUBBER,8.4X20X18

92092-0039

1
Out of stock

92154

BOLT,SOCKET,8X44

92154-4427

1
Out of stock

92161

DAMPER,12.5X21X2

92161-0943

1
Out of stock

92161A

DAMPER,12.5X20X4

92161-0944

1
Out of stock

92161B

DAMPER

92161-2391

1
Out of stock

92200

WASHER,FR STEP

92200-0560

1
Out of stock

92200A

WASHER,RR STEP

92200-0561

1
Out of stock

92200B

WASHER,6.5X13X2.0

92200-0562

1
Out of stock

92200C

WASHER,FR STEP

92200-2537

1
Out of stock

130

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
