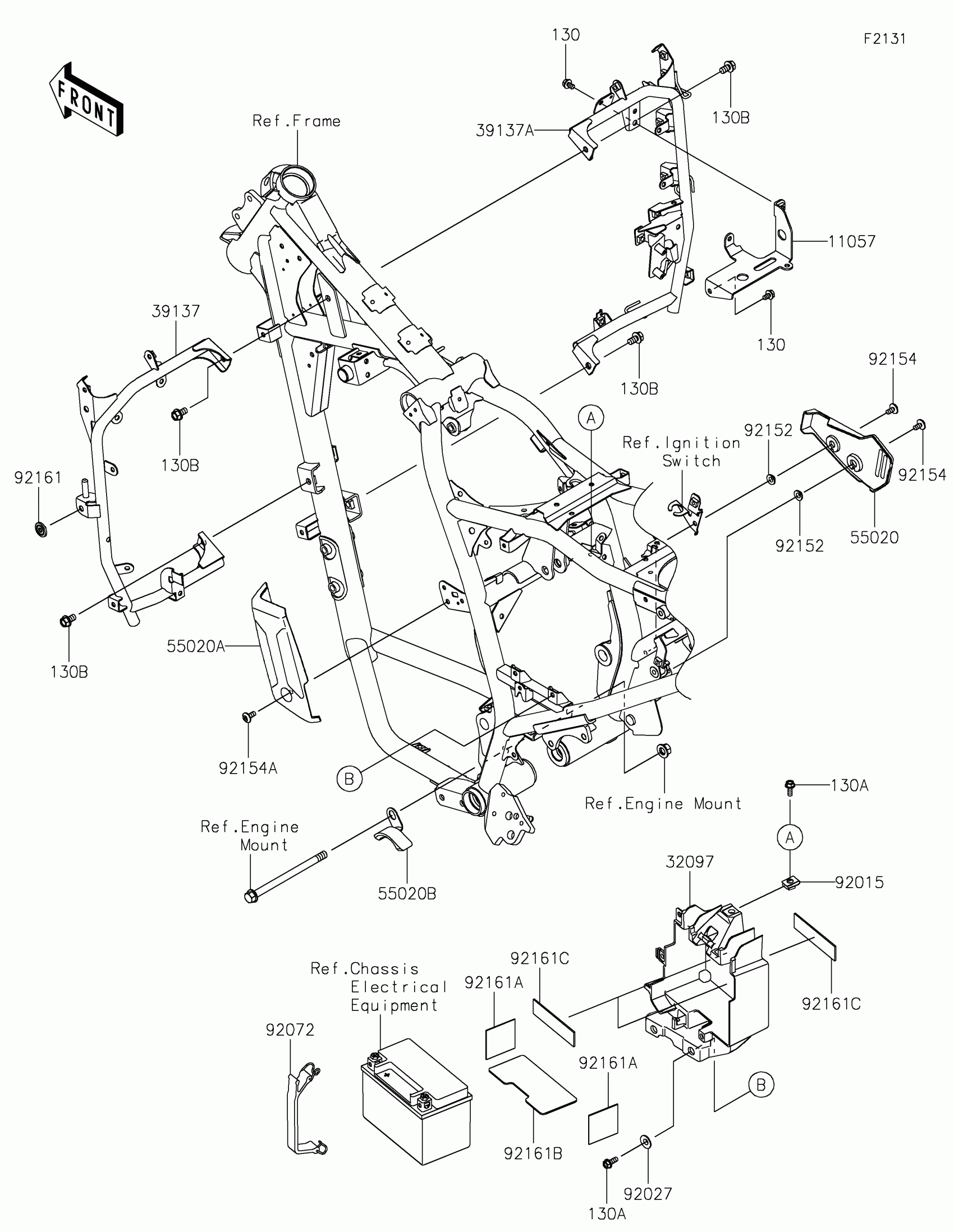

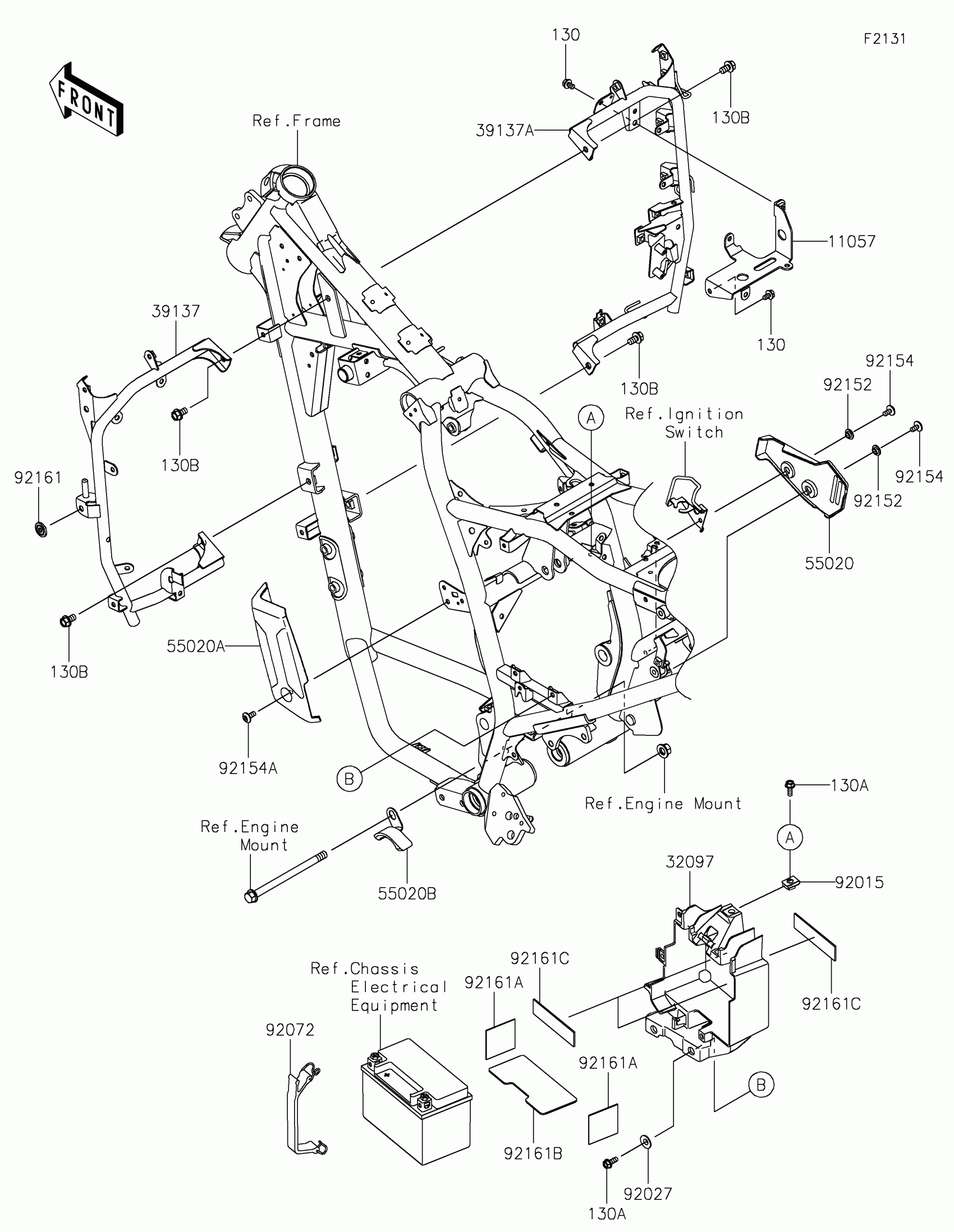

Kawasaki KLR®650 Adventure Frame Fittings Diagram

Description

Price

11057

BRACKET,ABS UNIT

11057-4389

$15.44

32097

CASE-BATTERY

32097-0565

$76.88

39137

STAY-COMP,LH

39137-0710

$81.49

39137A

STAY-COMP,RH

39137-0711

$140.42

55020

GUARD,HEEL

55020-2330

$7.14

55020A

GUARD

55020-2335

$33.21

55020B

GUARD,CHAIN

55020-2390

$40.59

92015

NUT,6MM

92015-1671

$7.49

92027

COLLAR

92027-1794

$3.29

92072

BAND,BATTERY

92072-0839

$5.27

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT,SOCKET,6X12

92154-2706

$1.32

92154A

BOLT,SOCKET,6X14

92154-4285

$1.66

92161

DAMPER,8X22X10

92161-1685

$0.74

92161A

DAMPER,60X140X1

92161-1868

$13.64

92161B

DAMPER,BATTERY

92161-2353

$4.86

92161C

DAMPER,25X100X2

92161-2354

$3.49

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,8X14

130BA0814

$1.54
