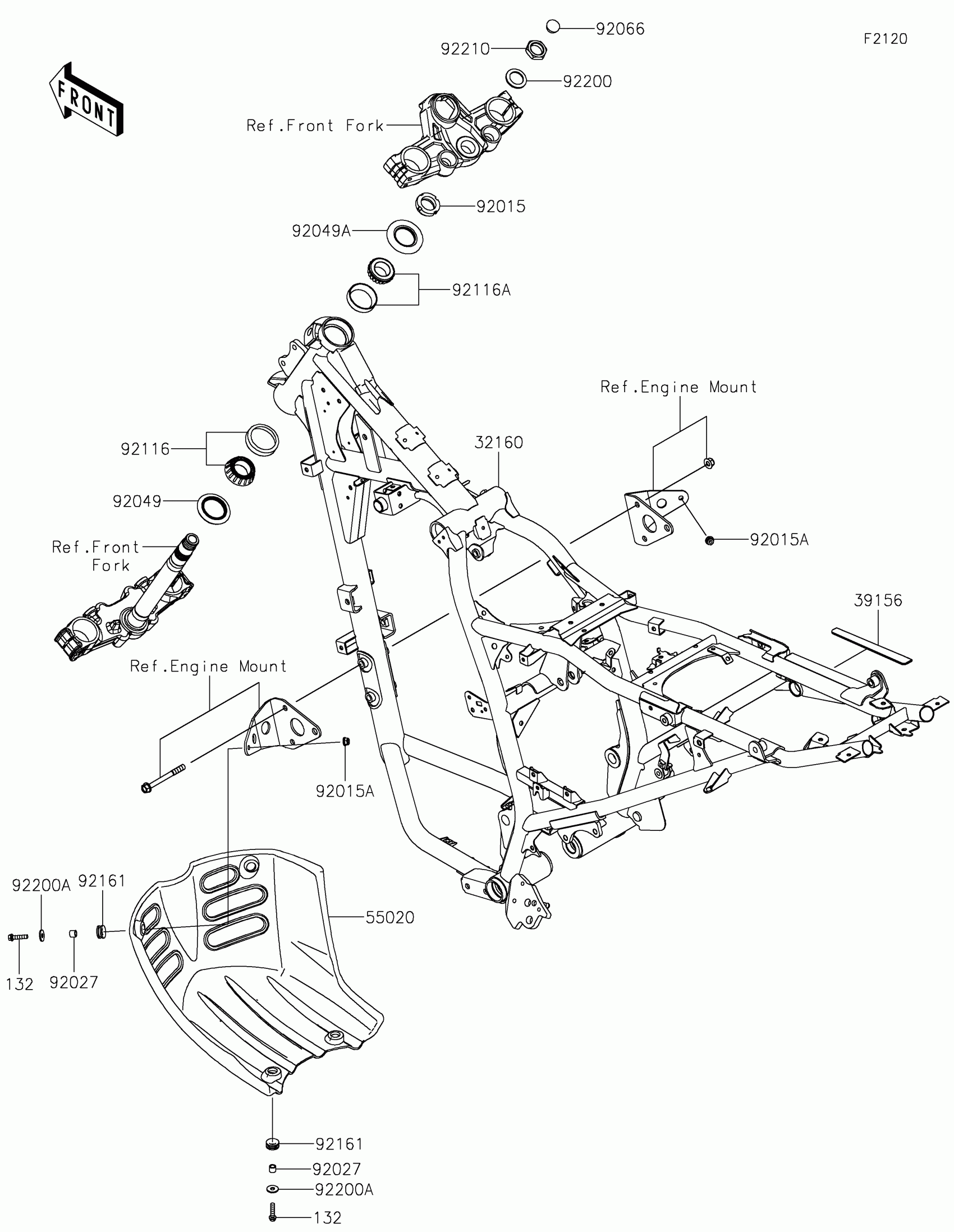

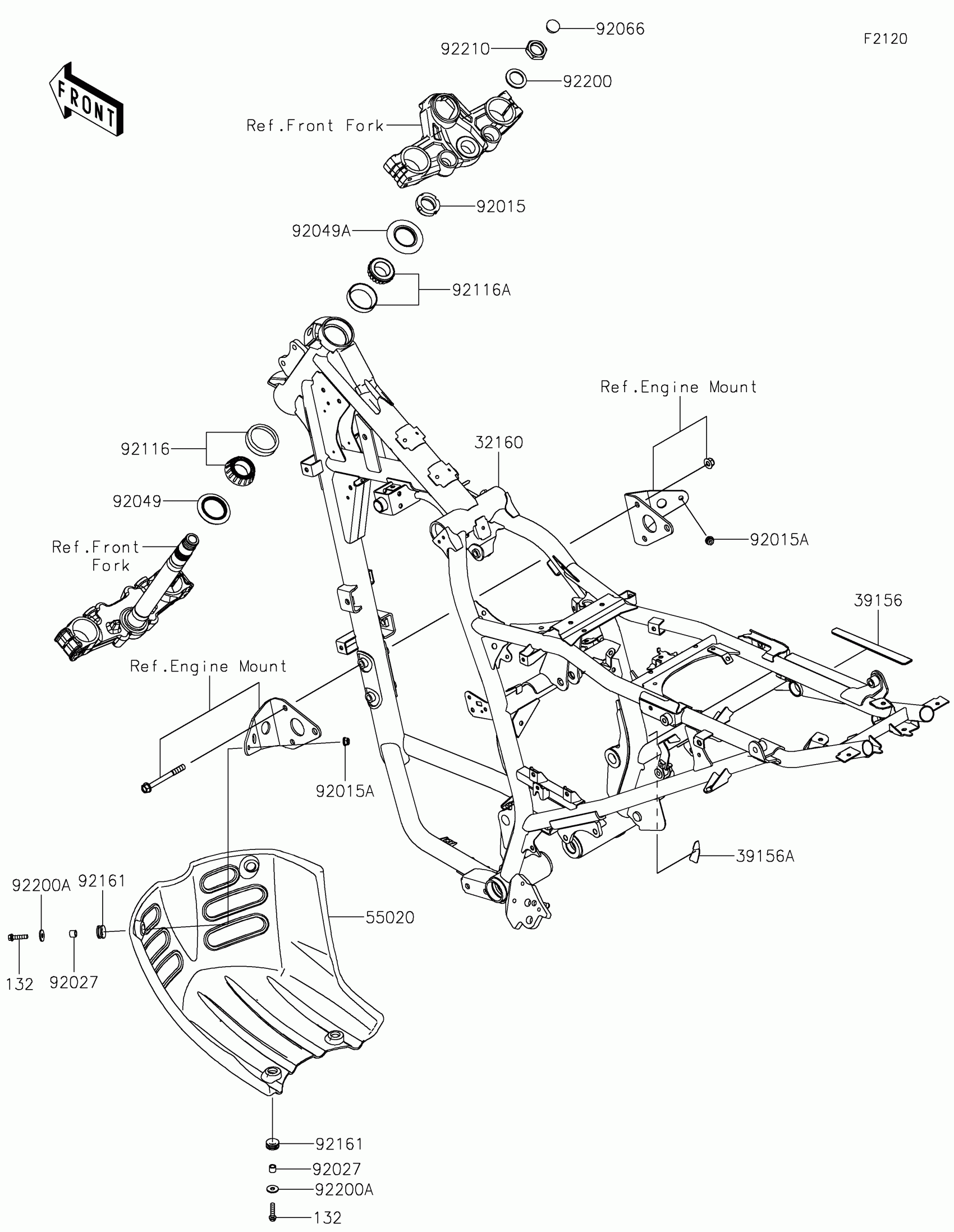

Find the part on the Frame diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,F.S.BLACK

32160-1906-18R

1
Out of stock

39156

PAD,RH

39156-2775

1
Out of stock

55020

GUARD,ENGINE,F.BLACK

55020-2372-6Z

1
Out of stock

92015

NUT,25MM,T=12

92015-1546

1
Out of stock

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92027

COLLAR,6.8X10X8.5

92027-129

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92066

PLUG

92066-1306

1
Out of stock

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

1
Out of stock

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

1
Out of stock

92161

DAMPER,10X20X8

92161-1828

1

$1.10

In stock

92200

WASHER,STEERING STEM

92200-0517

1
Out of stock

92200A

WASHER,6.5X18X1.6

92200-0766

1
Out of stock

92210

NUT,STEERING STEM,22MM

92210-1521

1
Out of stock

132

1

$2.29

In stock
