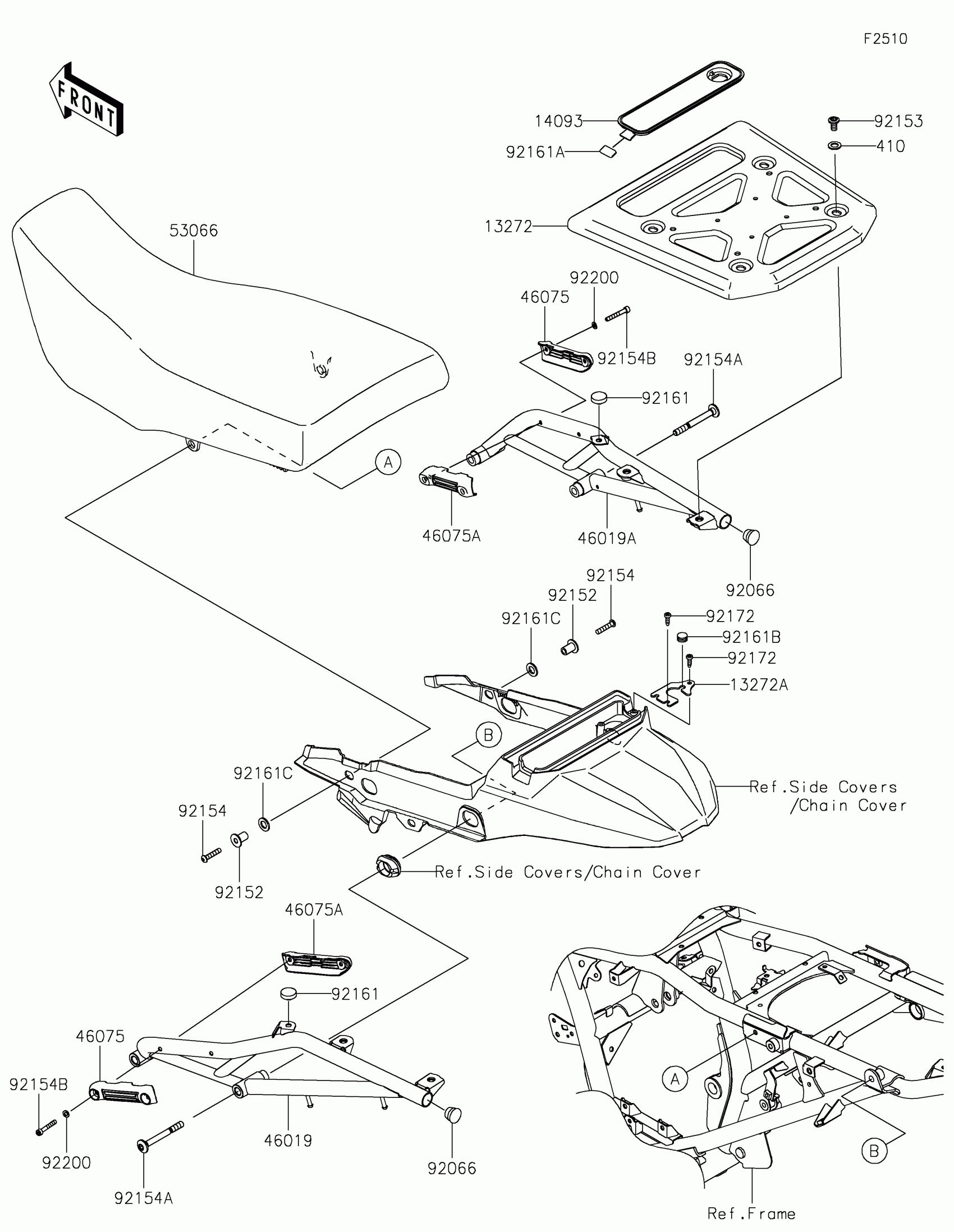

Find the part on the Seat diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,CARRIER

13272-3763

1
Out of stock

13272A

PLATE

13272-3872

1
Out of stock

14093

COVER,TOOL

14093-1079

1
Out of stock

46019

GRIP-ASSY,LH

46019-0107

1
Out of stock

46019A

GRIP-ASSY,RH

46019-0108

1
Out of stock

46075

GRIP,OUTSIDE

46075-0659

1
Out of stock

46075A

GRIP,INSIDE

46075-0660

1
Out of stock

53066

SEAT-ASSY,DUAL,BLACK+SIL

53066-0703-64U

1
Out of stock

92066

PLUG

92066-1220

1
Out of stock

92152

COLLAR

92152-2823

1
Out of stock

92153

BOLT,SOCKET,8X15

92153-1810

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0206

1
Out of stock

92154A

BOLT,SOCKET,8X78

92154-4346

1
Out of stock

92154B

BOLT,SOCKET,5X35

92154-4350

1
Out of stock

92161

DAMPER

92161-0336

1
Out of stock

92161A

DAMPER,12X23

92161-1367

1
Out of stock

92161B

DAMPER,8X14X8.9

92161-1666

1

$1.32

In stock

92161C

DAMPER

92161-2425

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-1425

1
Out of stock

92200

WASHER,5.5X10X1.2

92200-2495

1
Out of stock

410

WASHER-PLAIN-SMALL,10MM

410AA1000

1
Out of stock
