2023 Kawasaki KLR®650 Adventure Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

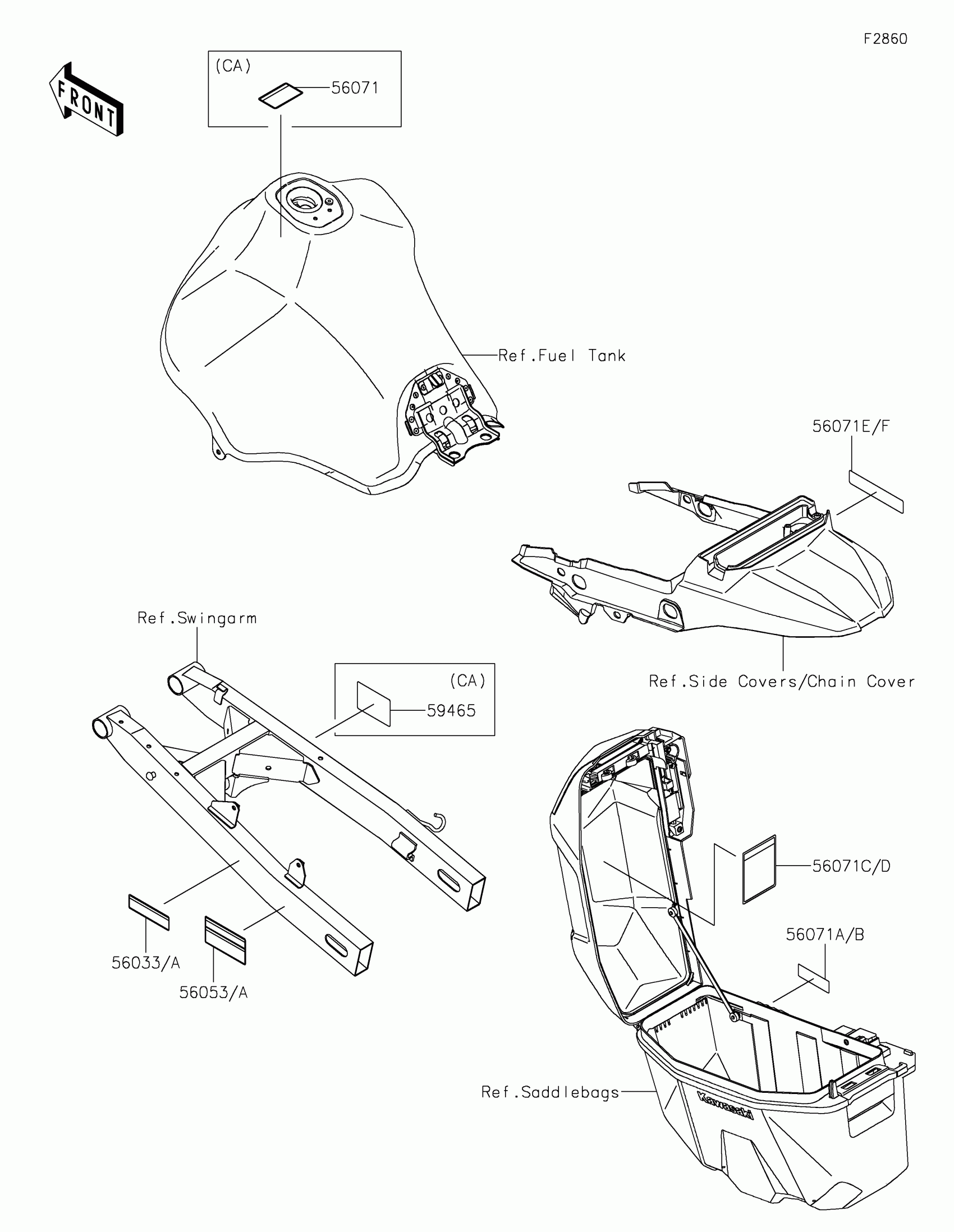

2023 Kawasaki KLR®650 Adventure Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56033

LABEL-MANUAL,CHAIN

56033-1478

1
Out of stock

56033A

LABEL-MANUAL,CHAIN

56033-1479

1
Out of stock

56053

LABEL-SPECIFICATION,TIRE&LOAD

56053-1837

1
Out of stock

56053A

LABEL-SPECIFICATION,TIRE&LOAD

56053-1838

1
Out of stock

56071

LABEL-WARNING,EVAPO

56071-0158

1
Out of stock

56071A

LABEL-WARNING,NO SIT

56071-0731

1
Out of stock

56071B

LABEL-WARNING,NO SIT

56071-0758

1
Out of stock

56071C

LABEL-WARNING,MAX LOAD

56071-0941

1
Out of stock

56071D

LABEL-WARNING,MAX LOAD

56071-0955

1
Out of stock

56071E

LABEL-WARNING,CARRIER LOADING

56071-1044

1
Out of stock

56071F

LABEL-WARNING,CARRIER LOADING

56071-1045

1
Out of stock

59465

LABEL-CERTIFICATION,EVAPO

59465-7733

1
Out of stock
