1988 Kawasaki KDX200 Swingarm Diagram

← All diagrams

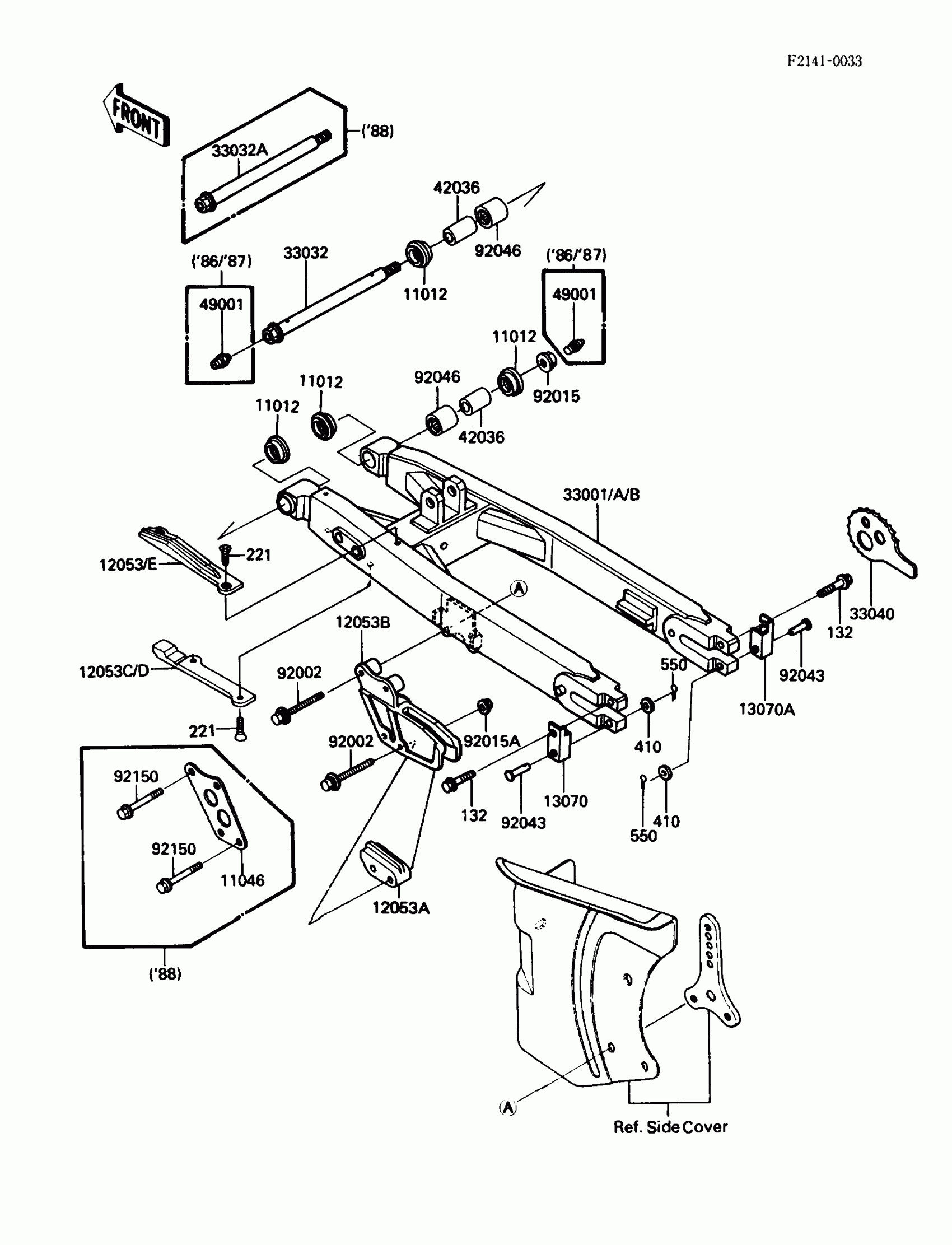

Find the part on the Swingarm diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX200 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

11046

BRACKET

11045-1922

1
Out of stock

12053A

GUIDE-CHAIN,RR,INSIDE

12053-1105

1
Out of stock

12053B

GUIDE-CHAIN,RR

12053-1124

1
Out of stock

12053D

GUIDE-CHAIN,FR,LWR

12053-1208

1
Out of stock

12053E

GUIDE-CHAIN,FR,UPP

12053-1213

1
Out of stock

13070

GUIDE,LH

13070-1141

1
Out of stock

13070A

GUIDE,RH

13070-1142

1
Out of stock

33001B

ARM-COMP-SWING

33001-1305

1

$483.18

In stock

33032A

SHAFT-SWING ARM

33032-1138

1

$55.16

In stock

33040

ADJUSTER-CHAIN

33040-1067

1
Out of stock

42036

SLEEVE,L=36

42036-1171

1
Out of stock

92015

NUT,14MM

92015-1032

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92043

PIN,6X17

92043-107

1
Out of stock

92046

BEARING-NEEDLE

92046-1128

1
Out of stock

92150

BOLT,FLANGED,6X52

92150-1001

1

$3.56

In stock

132

BOLT-FLANGED-SMALL,6X10

132G0610

1
Out of stock

221

1

$2.92

In stock

410

1

$1.19

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
