1988 Kawasaki KDX200 Front Hub Diagram

← All diagrams

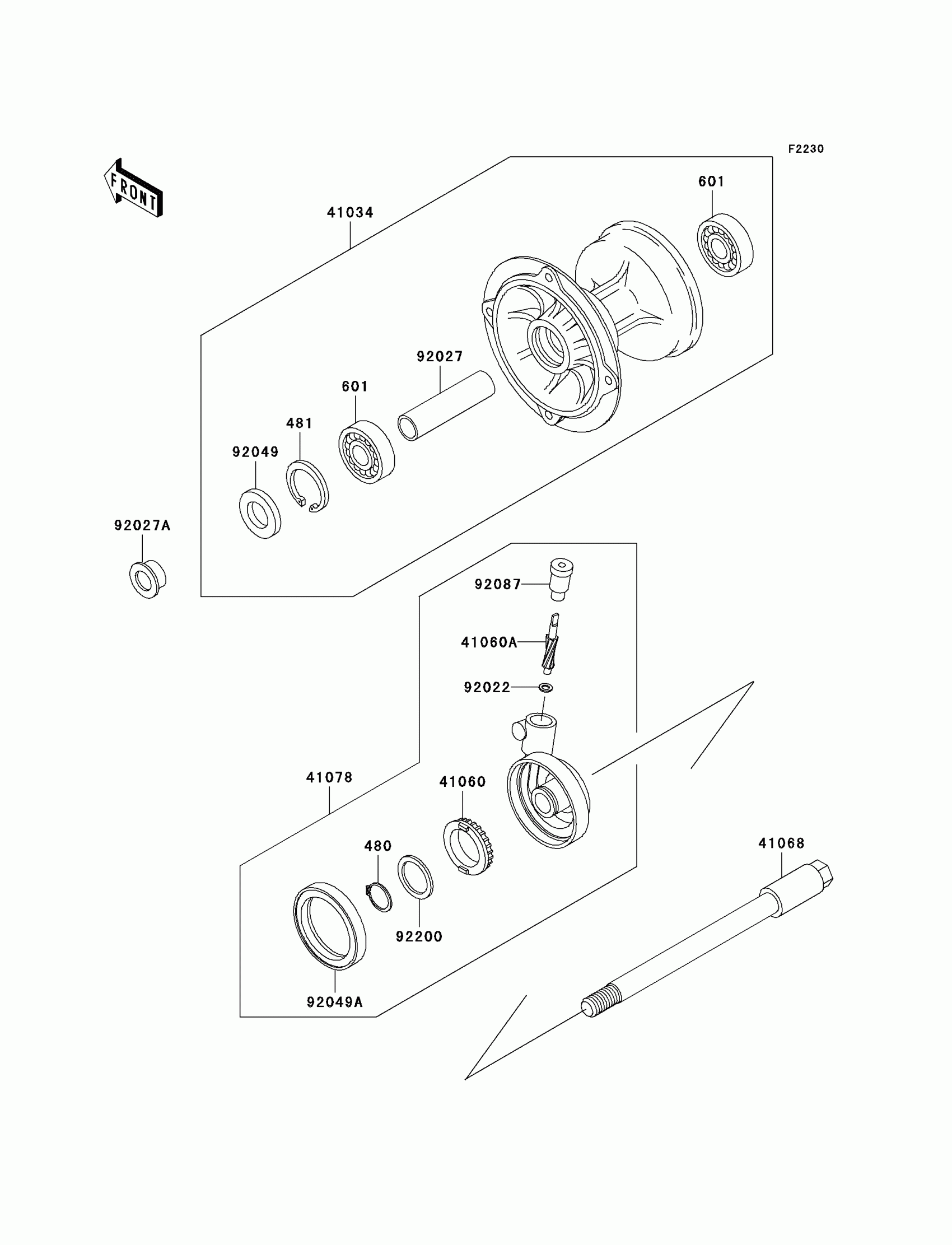

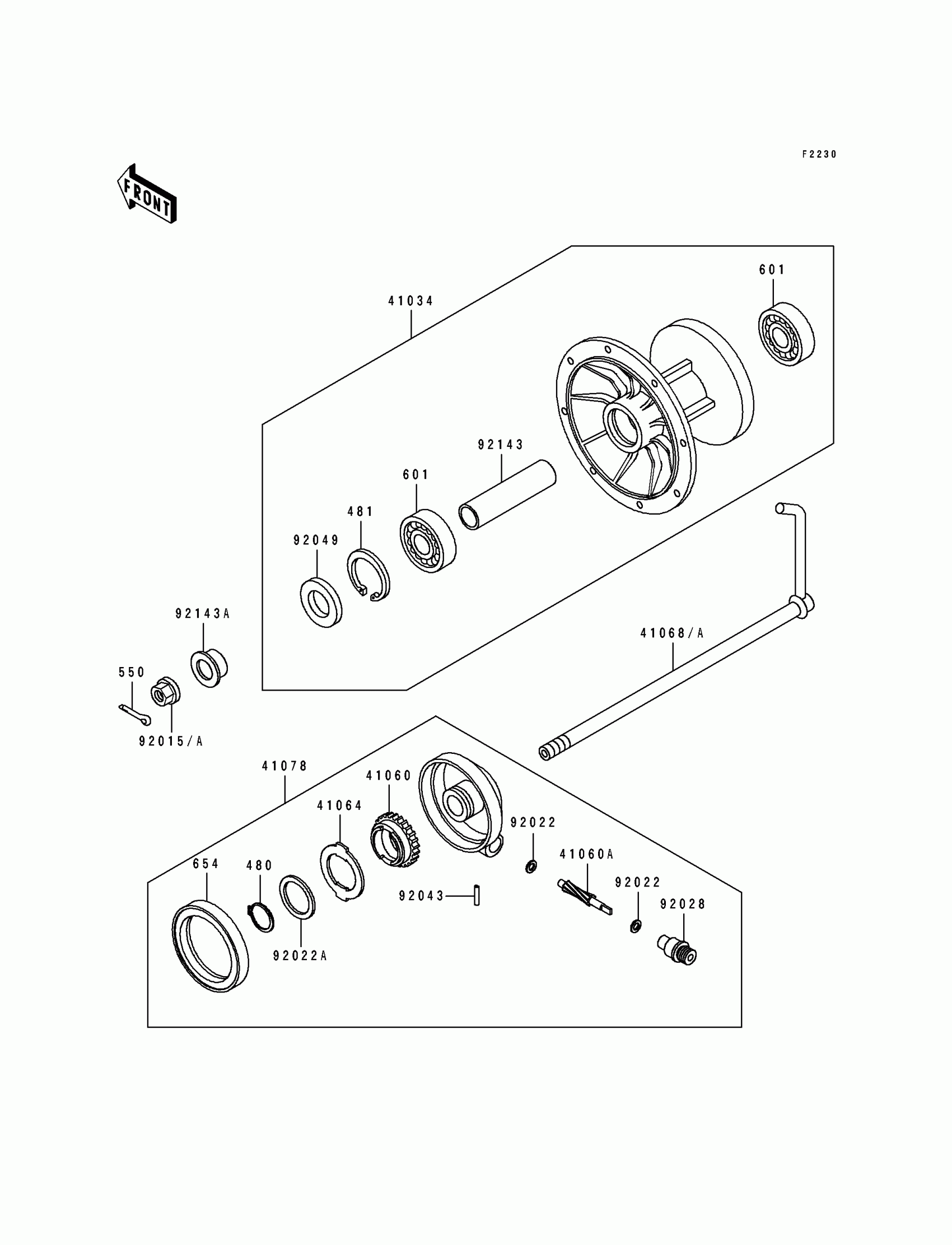

Find the part on the Front Hub diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX200 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11021A

CASE-ASSY,DISTANCE SENSOR

11021-1064

1
Out of stock

41034A

1

$510.77

In stock

41068

AXLE,FR

41068-1210

1

$72.66

In stock

92015

NUT,14MM

92015-1032

1
Out of stock

92049

SEAL-OIL,MH20354.5

92049-1176

1
Out of stock

92143

COLLAR,15.2X22.2X75

92027-1958

1

$41.65

In stock

92143A

COLLAR,L=12

92027-1959

1

$15.76

In stock

481

1

$1.64

In stock

601

1

$16.17

In stock
