1988 Kawasaki KDX200 Rear Hub Diagram

← All diagrams

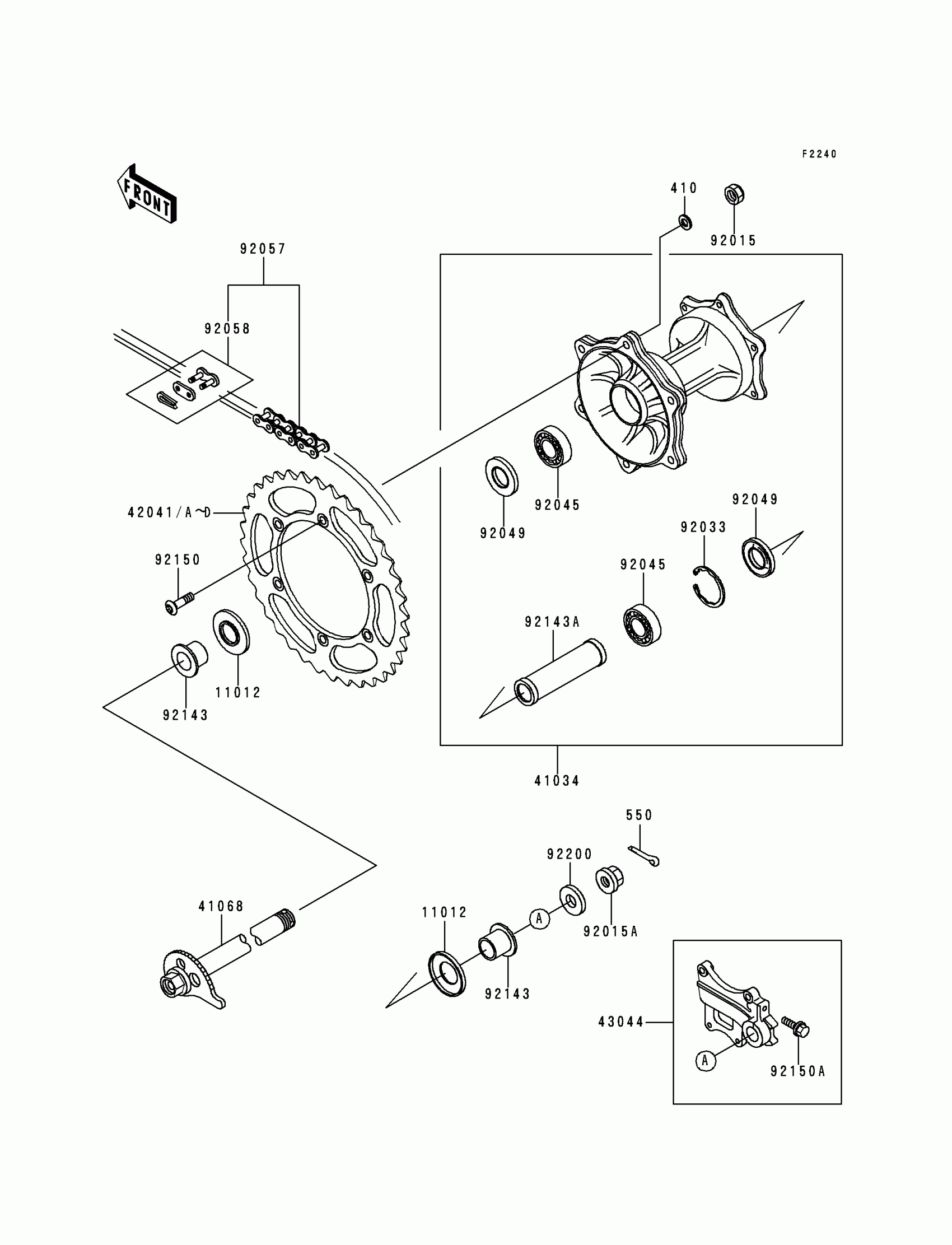

Find the part on the Rear Hub diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX200 Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034A

1

$667.59

In stock

41035A

PANEL-ASSY-BRAKE,RR

41035-1213

1

$566.81

In stock

41048

SHOE-BRAKE

41048-1063

1
Out of stock

41050

CAM-BRAKE

41050-1064

1

$44.04

In stock

41053

LEVER-BRAKE CAM,RR

41053-1066

1

$55.78

In stock

41068

AXLE,RR

41068-1211

1
Out of stock

41085

1

$13.20

In stock

42041

SPROCKET-HUB,48T,AL

42041-1103

1

$141.34

In stock

42041A

SPROCKET-HUB,49T

42041-1105

1

$113.11

In stock

42041B

SPROCKET-HUB,47T,AL

42041-1194

1

$141.34

In stock

92002

BOLT,8MM

92002-1387

1

$5.71

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015B

NUT,20MM

92015-1461

1

$23.66

In stock

92015C

1

$3.38

In stock

92027

COLLAR,L=103

92027-1827

1

$65.51

In stock

92033

RING-SNAP,32MM

92033-1191

1
Out of stock

92045

BEARING-BALL,6804LU/2A

92045-1135

1
Out of stock

92049

SEAL-OIL,BJNC2 25425

92049-1203

1
Out of stock

92049A

SEAL-OIL,BJN 30374

92049-1205

1
Out of stock

92057

1

$169.90

In stock

92058

JOINT-CHAIN

92058-1051

1
Out of stock

92081

SPRING,BRAKE CAM LEVER RETURN

92081-1615

1
Out of stock

92081A

SPRING,BRAKE SHOE

92081-1766

1

$6.39

In stock

92143

COLLAR,L=25

92027-1960

1
Out of stock

110

BOLT,6X30

110G0630

1
Out of stock

601

1

$33.92

In stock

670

O RING,12MM

670B2012

1

$2.58

In stock
