1985 Kawasaki KDX200 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

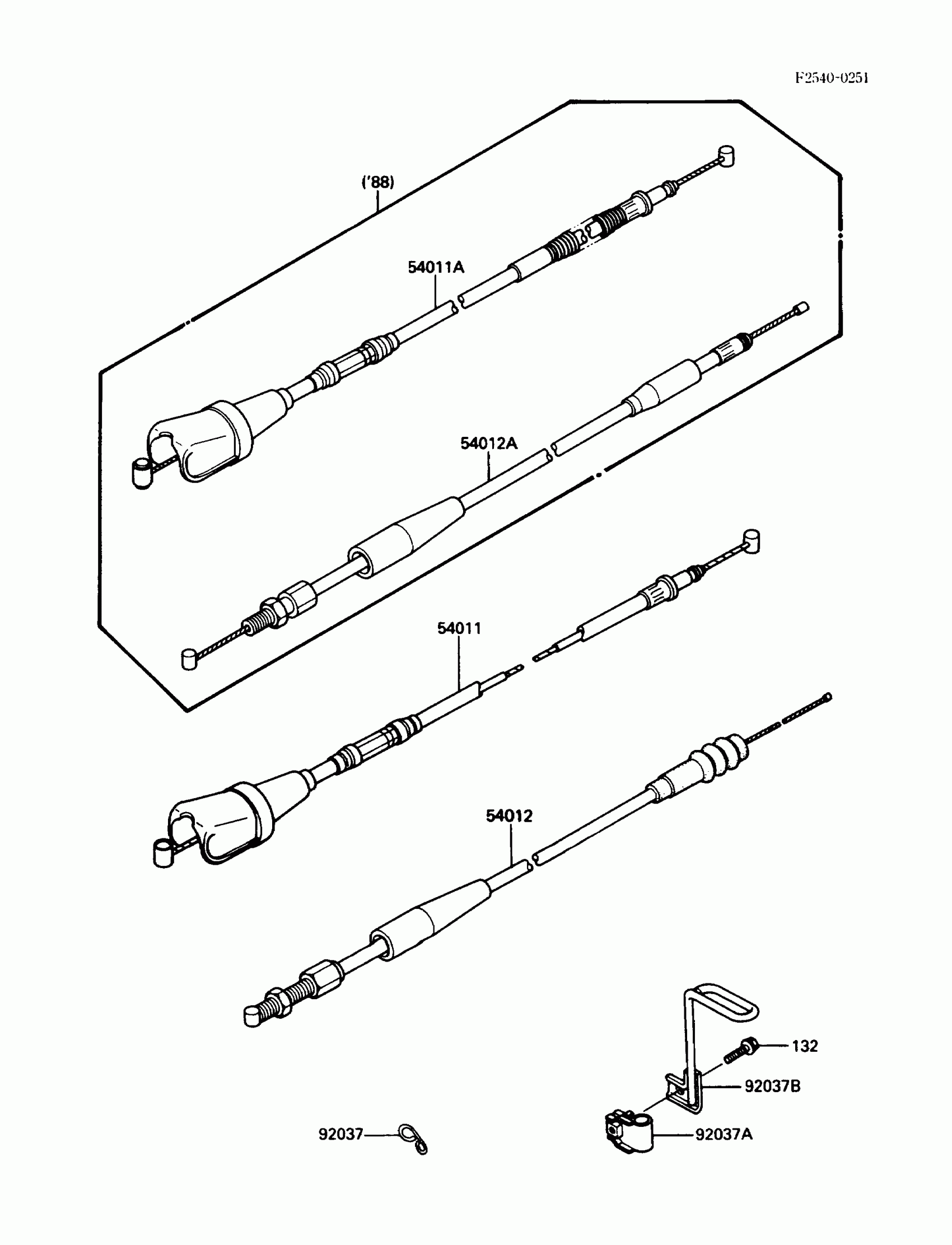

1985 Kawasaki KDX200 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54005

CABLE-BRAKE

54005-1043

1
Out of stock

54011

CABLE-CLUTCH

54011-1166

1
Out of stock

54012

CABLE-THROTTLE

54012-1119

1

$49.09

In stock

92037

CLAMP,CABLE

92037-1064

1

$6.82

In stock

92037A

1

$8.05

In stock

92037B

1

$8.05

In stock

92037C

CLAMP,CABLE

92037-1376

1

$5.15

In stock

92037D

CLAMP,METER CABLE

92037-1402

1

$10.32

In stock

92037E

CLAMP,CABLE

92037-1513

1

$34.75

In stock

92043

PIN,6X17

92043-064

1

$3.72

In stock

130

BOLT-FLANGED,6X18

130G0618

1
Out of stock

131

BOLT-FLANGED

131G0516

1
Out of stock

410

1

$1.19

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
