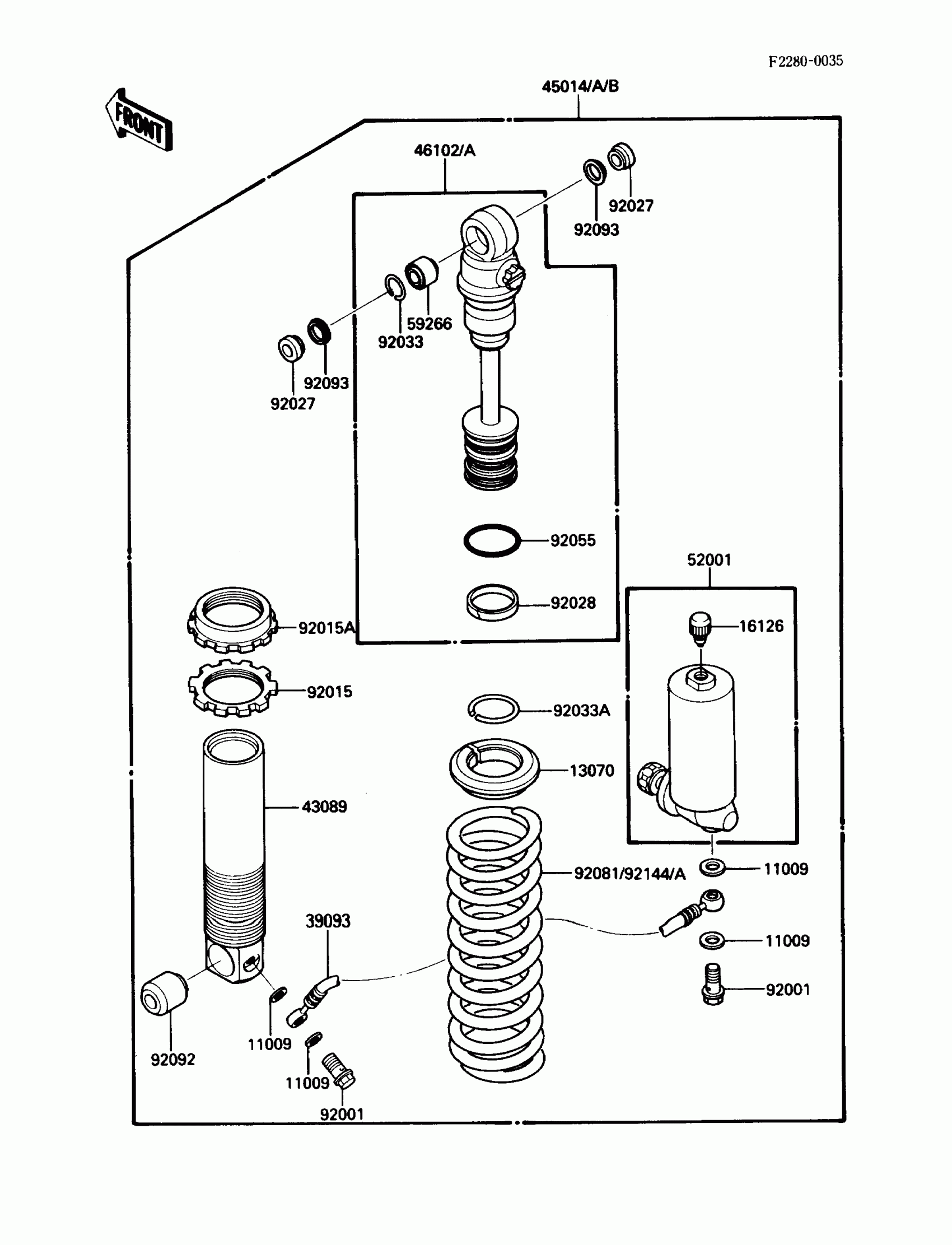

Find the part on the Shock Absorber diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

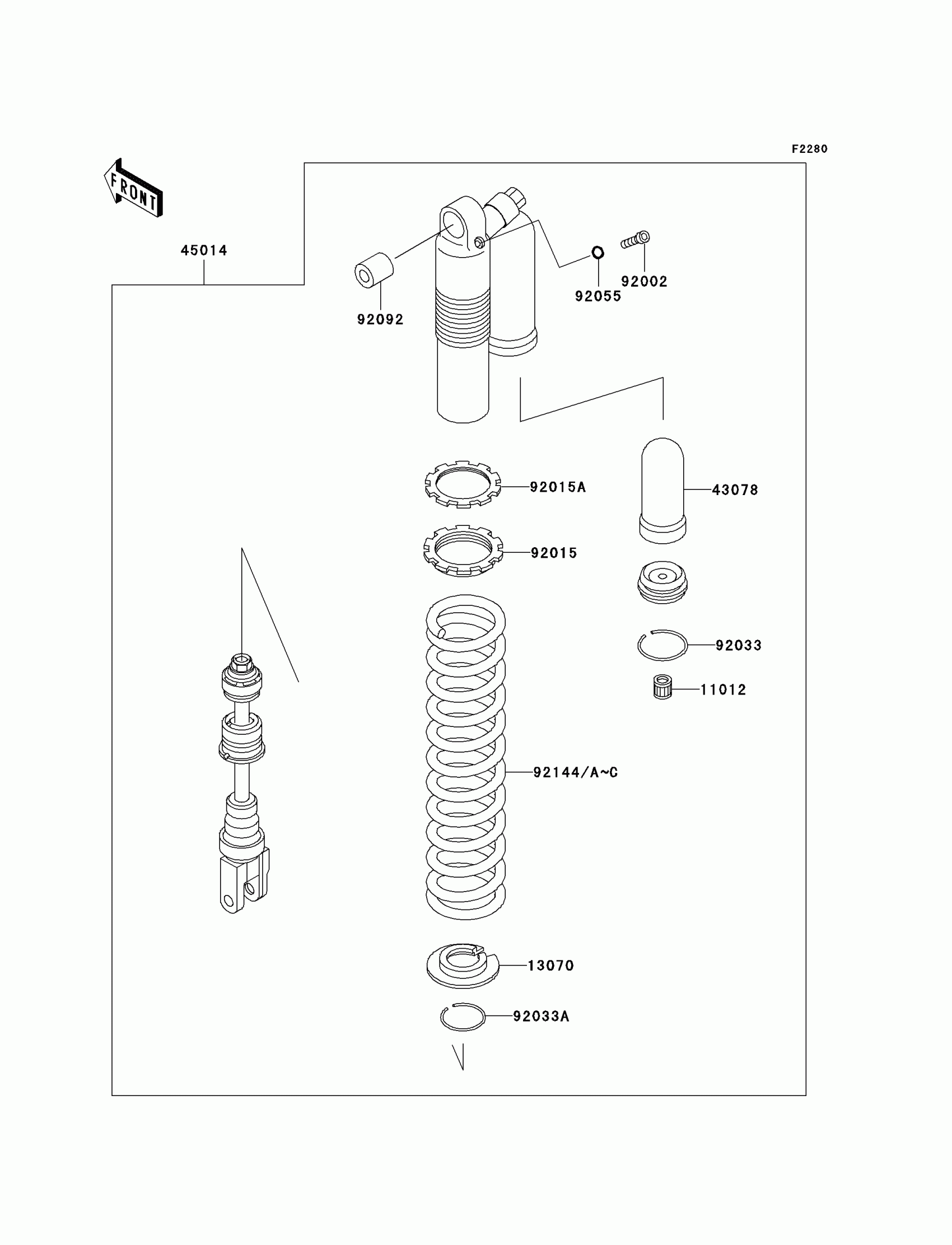

1988 Kawasaki KDX200 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET

44045-057

1

$3.86

In stock

13070

GUIDE,SPRING

13070-1075

1
Out of stock

16126

VALVE,AIR

16126-1118

1

$37.86

In stock

39093

PIPE-COMP-SUSP

39093-1105

1

$142.20

In stock

43089

1

$330.89

In stock

45014B

SHOCKABSORBER

45014-1402

1

$1,530.07

In stock

46102A

ROD,SHOCKABSORBER

46102-1203

1

$564.58

In stock

52001

1

$344.79

In stock

59266

JOINT-BALL

59266-1053

1

$119.17

In stock

92001

BOLT,BANJO

92001-1752

1
Out of stock

92015

1

$36.34

In stock

92015A

NUT,SPRING GUIDE

92015-1552

1

$59.16

In stock

92027

COLLAR,SHOCKABSORBER

92027-1871

1
Out of stock

92028

BUSHING

92028-1411

1

$21.56

In stock

92033

RING-SNAP

92033-1090

1

$4.76

In stock

92033A

RING-SNAP

92033-1206

1
Out of stock

92055

RING-O,ROD

92055-1181

1
Out of stock

92081

1

$265.27

In stock

92092

1

$35.15

In stock

92093

SEAL

92093-1183

1

$15.59

In stock

92144

1

$265.27

In stock

92144A

1

$304.17

In stock
