1985 Kawasaki KDX200 Rear Suspension Diagram

← All diagrams

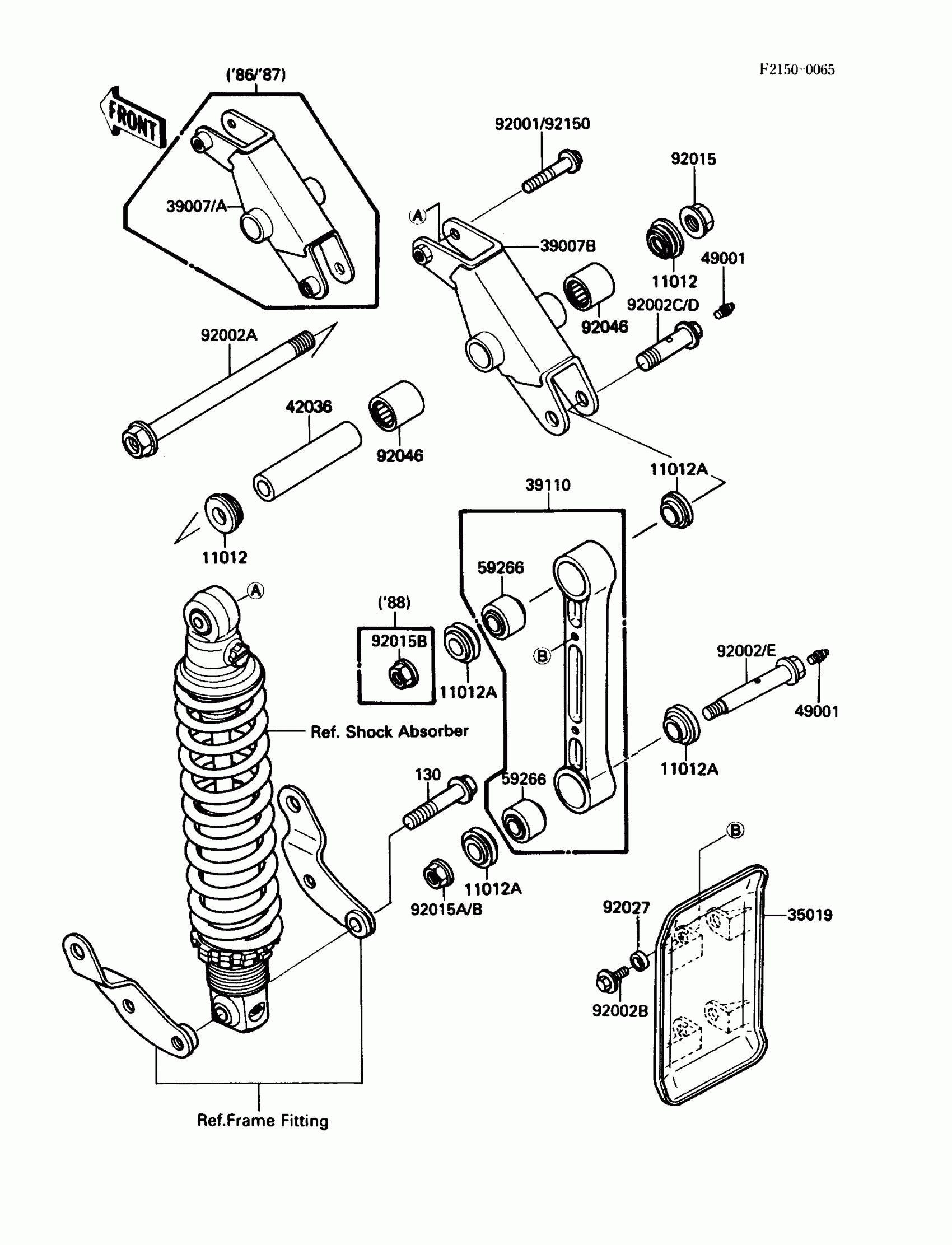

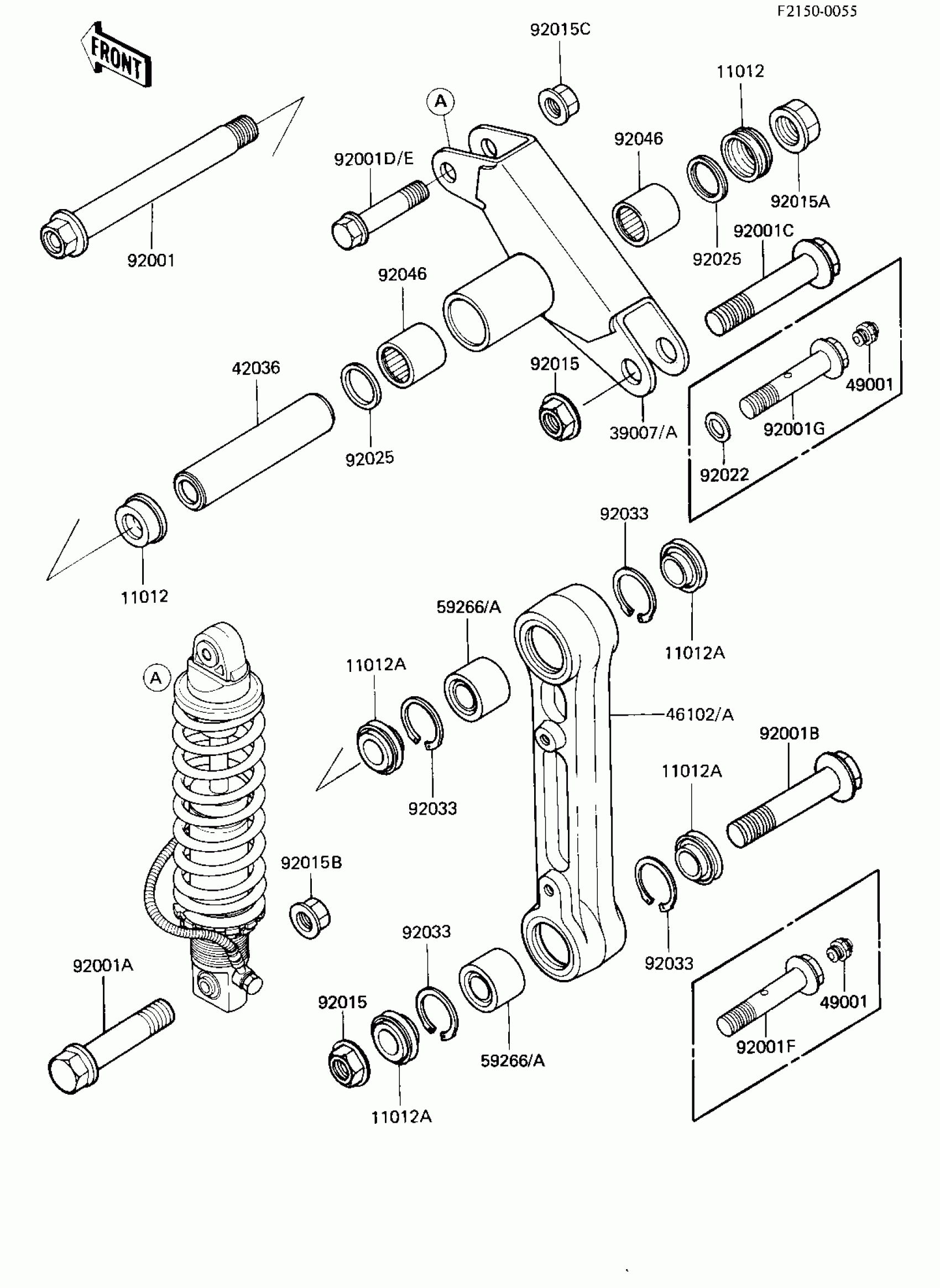

Find the part on the Rear Suspension diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki KDX200 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1203

1
Out of stock

11012A

CAP,ROD

11012-1258

1
Out of stock

39007A

ARM-SUSP,UNI TRAK

39007-1067

1

$127.31

In stock

42036

SLEEVE,UNI TRAK

42036-1054

1
Out of stock

46102A

ROD,UNI TRAK

46102-1133

1

$238.68

In stock

49001

NIPPLE-GREASE

49001-1051

1

$2.44

In stock

59266A

JOINT-BALL,SB142820E0

59266-1052

1
Out of stock

92001

BOLT,16X156

92001-1495

1

$72.04

In stock

92001A

BOLT,12X55

92001-1497

1
Out of stock

92001E

BOLT,FLANGED,10X48

92001-1962

1

$3.14

In stock

92001F

BOLT,14X82

92001-1972

1
Out of stock

92001G

BOLT,14X60

92001-1973

1
Out of stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92015A

NUT,16MM

92015-1046

1
Out of stock

92015B

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92015C

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92022

WASHER BRAKE PEDAL

92022-085

1

$3.53

In stock

92025

SHIM

92025-1229

1
Out of stock

92046

BEARING-NEEDLE,TA2428Z

92046-1041

1
Out of stock
