1985 Kawasaki KDX200 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

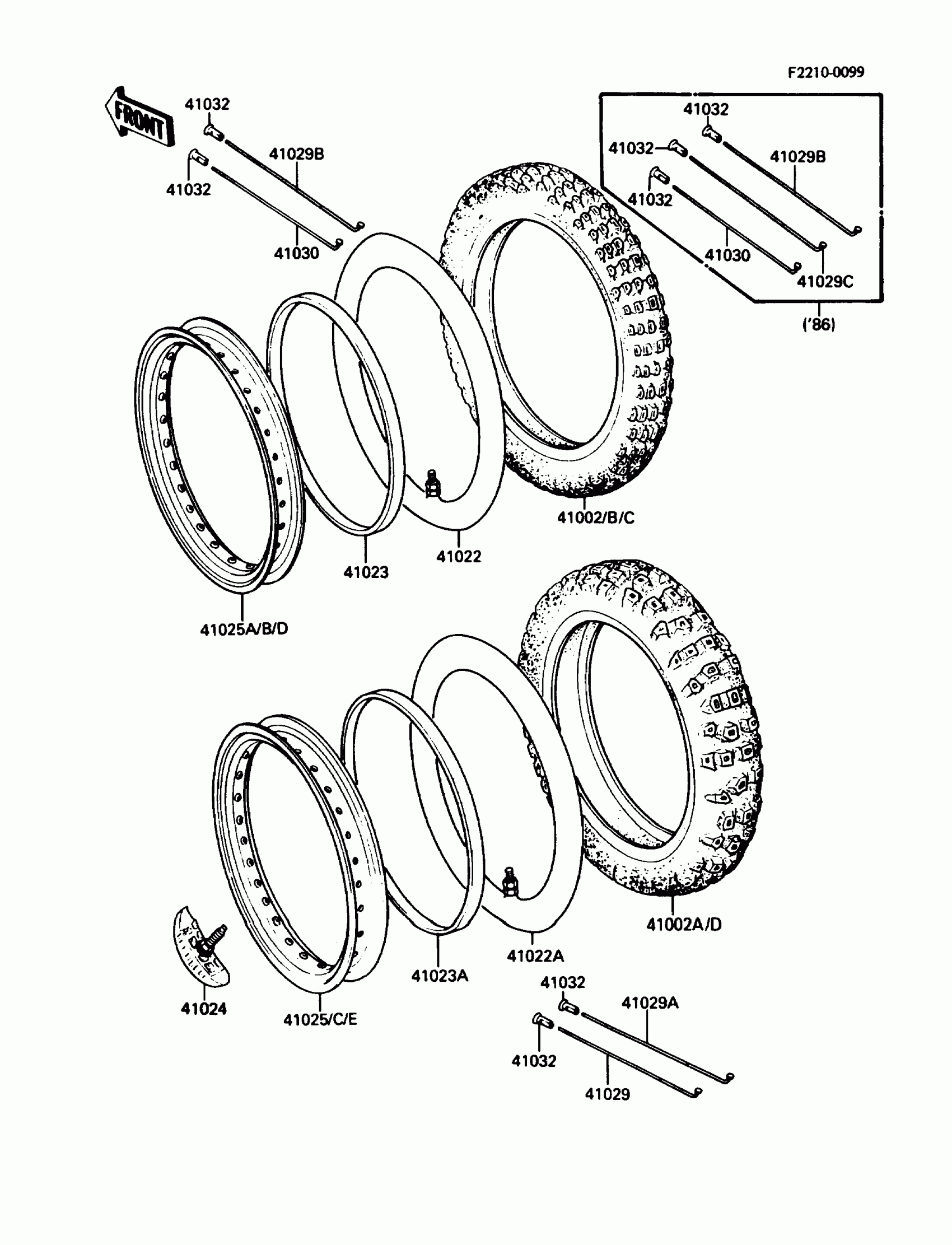

1985 Kawasaki KDX200 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002D

TIRE

41002-1517

1

$125.72

In stock

41002E

TIRE

41002-1518

1

$148.62

In stock

41022A

TUBE,2.75/3.70-21

41022-1021

1

$51.02

In stock

41022B

1

$51.02

In stock

41023C

BAND-RIM

41023-1056

1

$7.44

In stock

41024

1

$48.17

In stock

41025B

RIM,FR,1.60X21EFJ

41025-1080

1

$290.05

In stock

41025C

RIM,RR,1.85X18

41025-1118

1

$272.61

In stock

41029B

1

$4.27

In stock

41029C

1

$4.27

In stock

41029F

1

$9.36

In stock

41029G

SPOKE-INNER,RR,RH,178MMX166D

41029-1124

1
Out of stock

41032A

1

$4.02

In stock
