1984 Yamaha IT200 (IT200L) Steering Handle-Cable Diagram

← All diagrams

Find the part on the Steering Handle-Cable diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

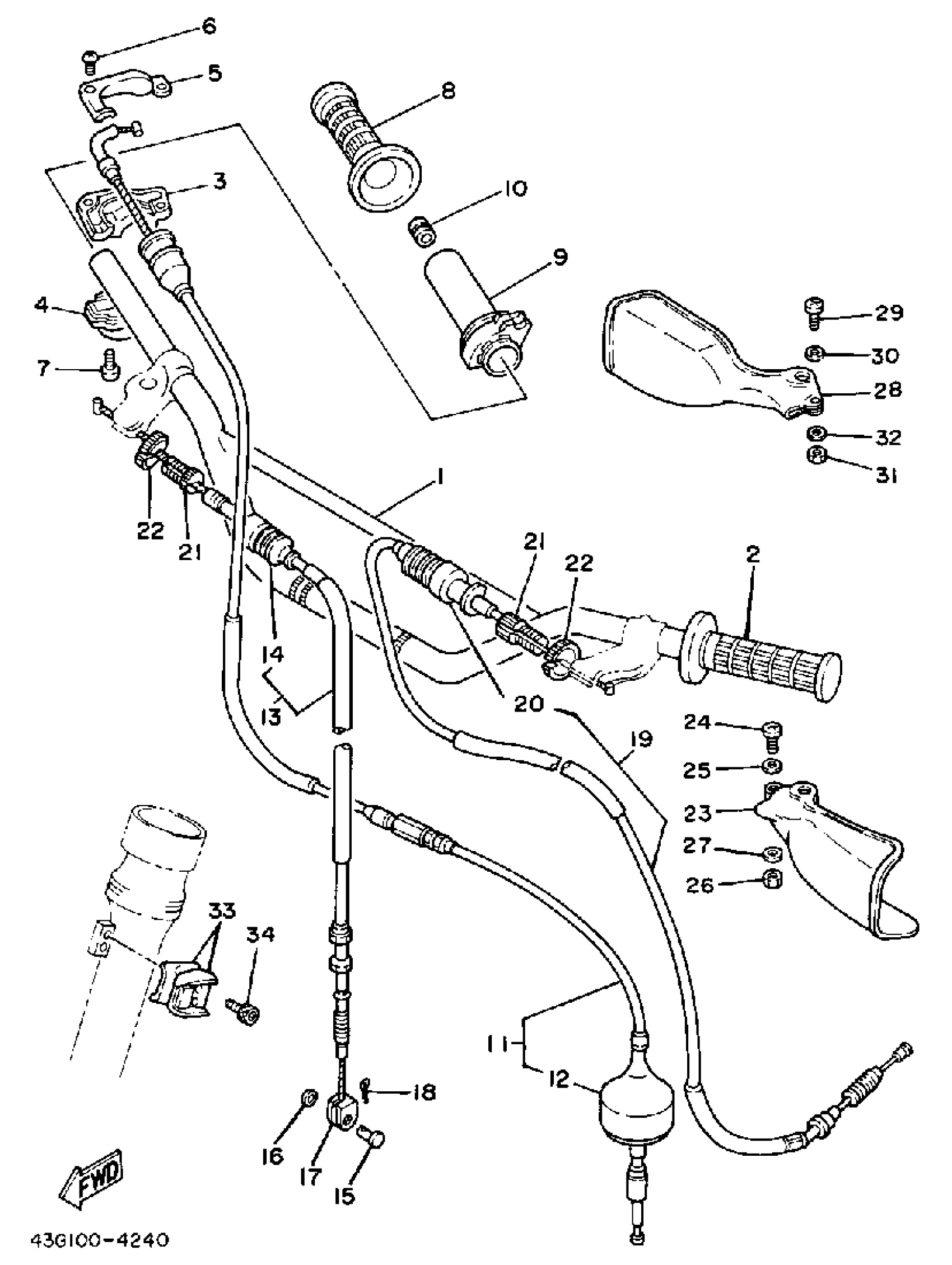

1984 Yamaha IT200 (IT200L) Steering Handle-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1LN-26111-00-00

1
Out of stock

2

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

3

CAP, GRIP UPPER

5X2-26281-00-00

1

$31.34

In stock

4

CAP, GRIP UNDER

322-26282-00-00

1

$23.60

In stock

5

CAP, WIRE

5X2-2628H-01-00

1

$21.62

In stock

6

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

7

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

8

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

9

TUBE, THROTTLE GUIDE

22W-26243-00-00

1

$26.34

In stock

10

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

11

CABLE, THROTTLE 1

43G-26311-00-00

1
Out of stock

12

. CAP, RUBBER

500-26329-01-00

1
Out of stock

13

CABLE, BRAKE

49U-26341-00-00

1
Out of stock

14

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

15

PIN W/HOLE 307181180000

90240-08013-00

1

$5.10

In stock

16

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

17

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

18

PIN, COTTER

91490-20025-00

—

$1.31

In stock

19

CABLE, CLUTCH

43G-26335-00-00

1
Out of stock

20

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

21

BOLT (23X)

90123-08090-00

—

$14.46

In stock

22

NUT

90179-08401-00

1
Out of stock

23

GUARD, BRUSH 1

3R9-26141-00-00

1
Out of stock

24

SCREW, PAN

98507-06014-00

—

$6.18

In stock

25

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

26

NUT(650)

95380-06700-00

—

$6.17

In stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

GUARD, BRUSH 2

3R9-26142-00-00

1
Out of stock

29

SCREW, PAN

98507-06014-00

—

$6.18

In stock

30

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

31

NUT(650)

95380-06700-00

—

$6.17

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

CLAMP(26A)

90465-16258-00

—
Out of stock

34

BOLT, SOCKET

91314-06016-00

—

$6.17

In stock
