1984 Yamaha IT200 (IT200L) Electrical 1 Diagram

← All diagrams

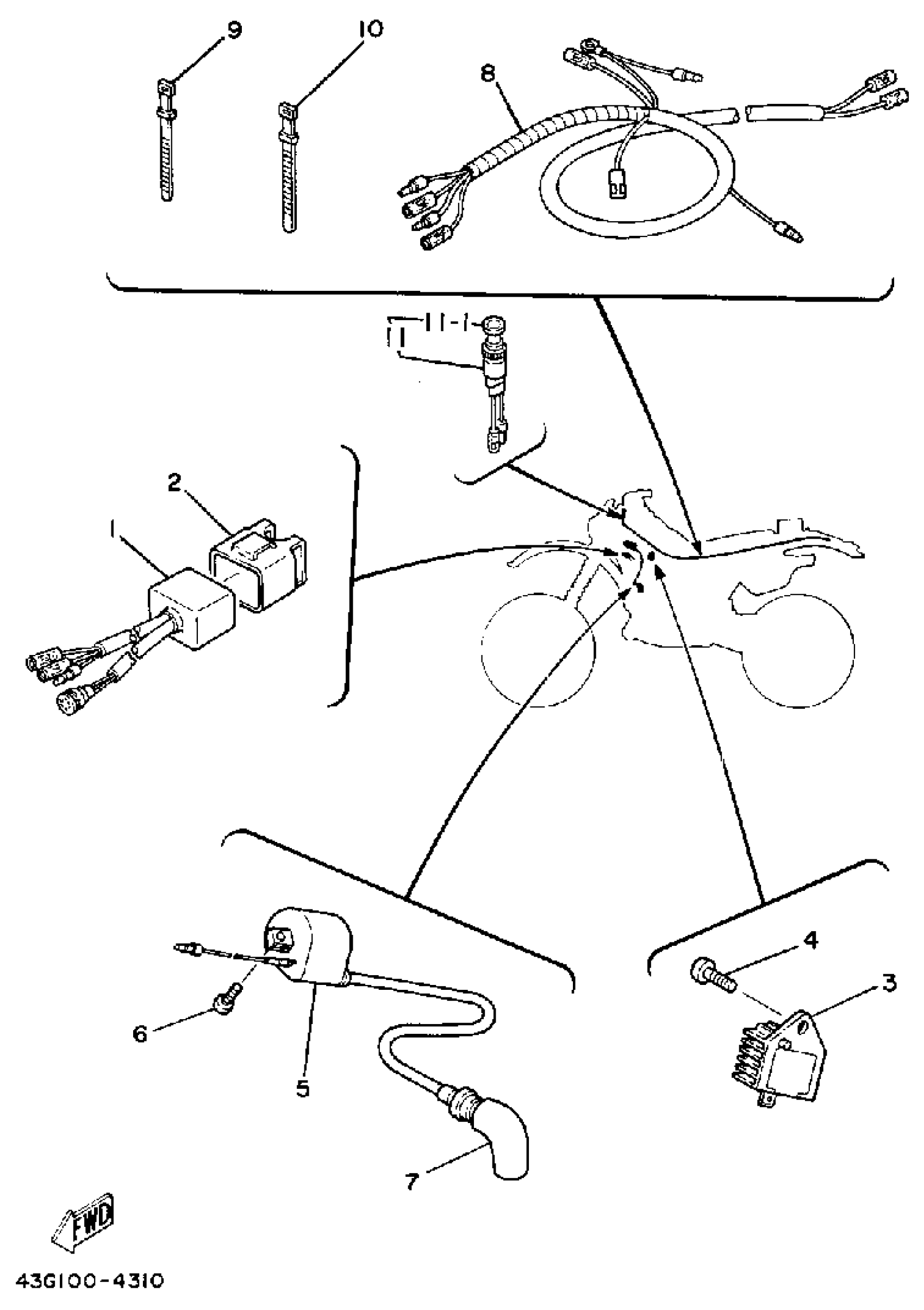

Find the part on the Electrical 1 diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha IT200 (IT200L) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

23X-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

4F4-81910-60-00

—

$159.49

In stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

IGNITION COIL ASSEMBLY

43G-82310-40-00

1
Out of stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

7

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

8

WIRE HARNESS ASSEMBLY

(43G-82590-00-00)

1
Out of stock

9

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

10

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

11

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

1
Out of stock
