1984 Yamaha IT200 (IT200L) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

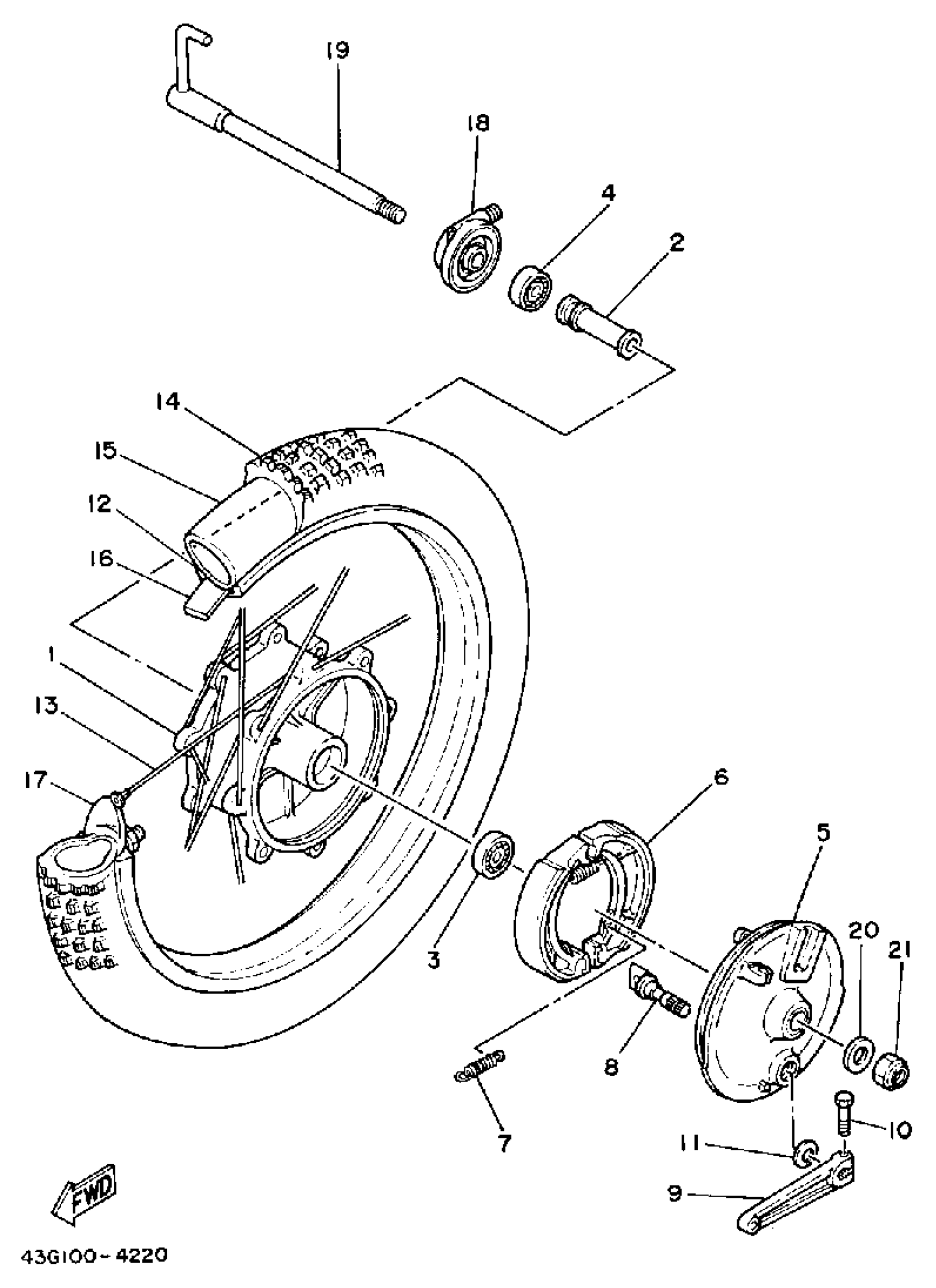

1984 Yamaha IT200 (IT200L) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

38V-25111-00-98

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

4

BEARING

93306-20205-00

1

$32.63

In stock

5

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

1
Out of stock

6

BRAKE SHOE KIT

39W-W253E-10-00

1

$32.91

In stock

7

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

8

CAMSHAFT (39W-25151-00)

49T-25151-00-00

1
Out of stock

9

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

10

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

11

OIL SEAL

93104-12003-00

1

$6.55

In stock

12

RIM 1.60X21

94416-21389-00

1
Out of stock

13

SPOKE SET, FRONT

43G-25104-00-00

1
Out of stock

14

90/90-21 M2EA-TT

94109-212F8-00

1
Out of stock

15

TUBE

94230-21126-00

1
Out of stock

16

BAND, RIM

(94330-21088-00)

1
Out of stock

17

SPACER, BEAD

4V5-25194-00-00

1
Out of stock

18

GEAR UNIT ASSEMBLY

26A-25190-00-00

1
Out of stock

19

AXLE, WHEEL

43G-25181-00-00

1
Out of stock

20

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock

21

NUT, SELF-LOCKING (1J7)

90185-14070-00

—

$10.45

In stock
