1984 Yamaha IT200 (IT200L) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

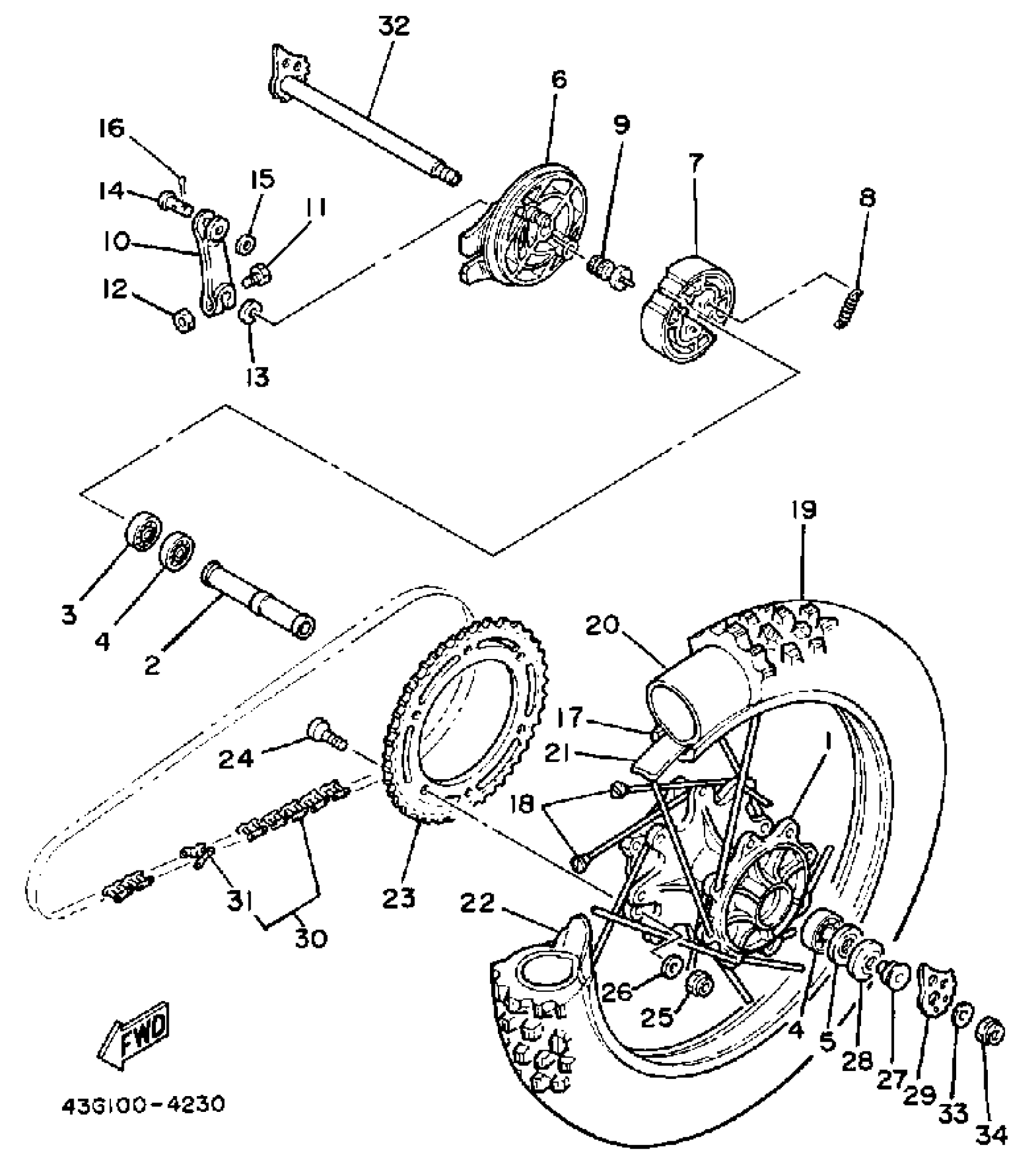

1984 Yamaha IT200 (IT200L) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

55Y-25311-00-98

1
Out of stock

2

SPACER

90560-17231-00

1
Out of stock

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

5

OIL SEAL, DD-TYPE

93106-25022-00

1
Out of stock

6

PLATE, BRAKE SHOE

43G-25321-00-98

1
Out of stock

7

BRAKE SHOE KIT

39W-W253E-10-00

1
Out of stock

8

SPRING (5T9)

90506-17328-00

—
Out of stock

9

CAMSHAFT

49T-25351-00-00

1
Out of stock

10

LEVER, CAMSHAFT

43G-25355-00-00

1
Out of stock

11

BOLT, HEXAGON (538)

90101-06278-00

1
Out of stock

12

NUT, HEXAGON

95380-06600-00

1
Out of stock

13

SEAL, CAM SHAFT

148-25359-00-00

1
Out of stock

14

PIN, CLEVIS

3R6-27237-00-00

1
Out of stock

15

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

16

PIN, COTTER(6L5)

91490-25030-00

—
Out of stock

17

UNAVAILABLE IN PRICE BOOK

94181-84170-0

1
Out of stock

17

RIM 1.85X18

94418-18388-00

1
Out of stock

18

SPOKE SET, REAR

43G-25304-00-00

1
Out of stock

18

SPOKE SET, REAR

55Y-25304-00-00

1
Out of stock

19

120/90-18 MK2-TT (110/90-18 61M)

94112-182F7-00

1
Out of stock

20

TUBE

(94211-18209-00)

1
Out of stock

21

BAND, RIM (2J4)

94340-18086-00

—
Out of stock

22

SPACER, BEAD

39W-25394-00-00

1
Out of stock

23

SPROCKET, DRIVEN (42T)

26A-25442-51-00

—
Out of stock

23

SPROCKET, DRIVEN

26A-25444-51-00

1
Out of stock

23

SPROCKET, DRIVEN

26A-25446-51-00

1
Out of stock

24

BOLT(1TJ)

90109-081G2-00

—
Out of stock

25

NUT, U

95617-08100-00

—
Out of stock

26

WASHER, PLATE(3XP)

90201-086P8-00

—
Out of stock

27

COLLAR

90387-175K4-00

1
Out of stock

28

COVER, HUB DUST

24X-25367-00-00

—
Out of stock

29

PULLER, CHAIN 1

1M1-25388-01-00

1
Out of stock

30

520 DS 106L

94585-20106-00

1
Out of stock

31

JOINT, CHAIN

94681-68001-00

—
Out of stock

32

AXLE, WHEEL

43G-25381-00-00

1
Out of stock

33

WASHER, PLATE (5X6)

90201-160F6-00

—
Out of stock

34

NUT, SELF-LOCKING

90185-16103-00

1
Out of stock
