1984 Yamaha IT200 (IT200L) Front Fork Diagram

← All diagrams

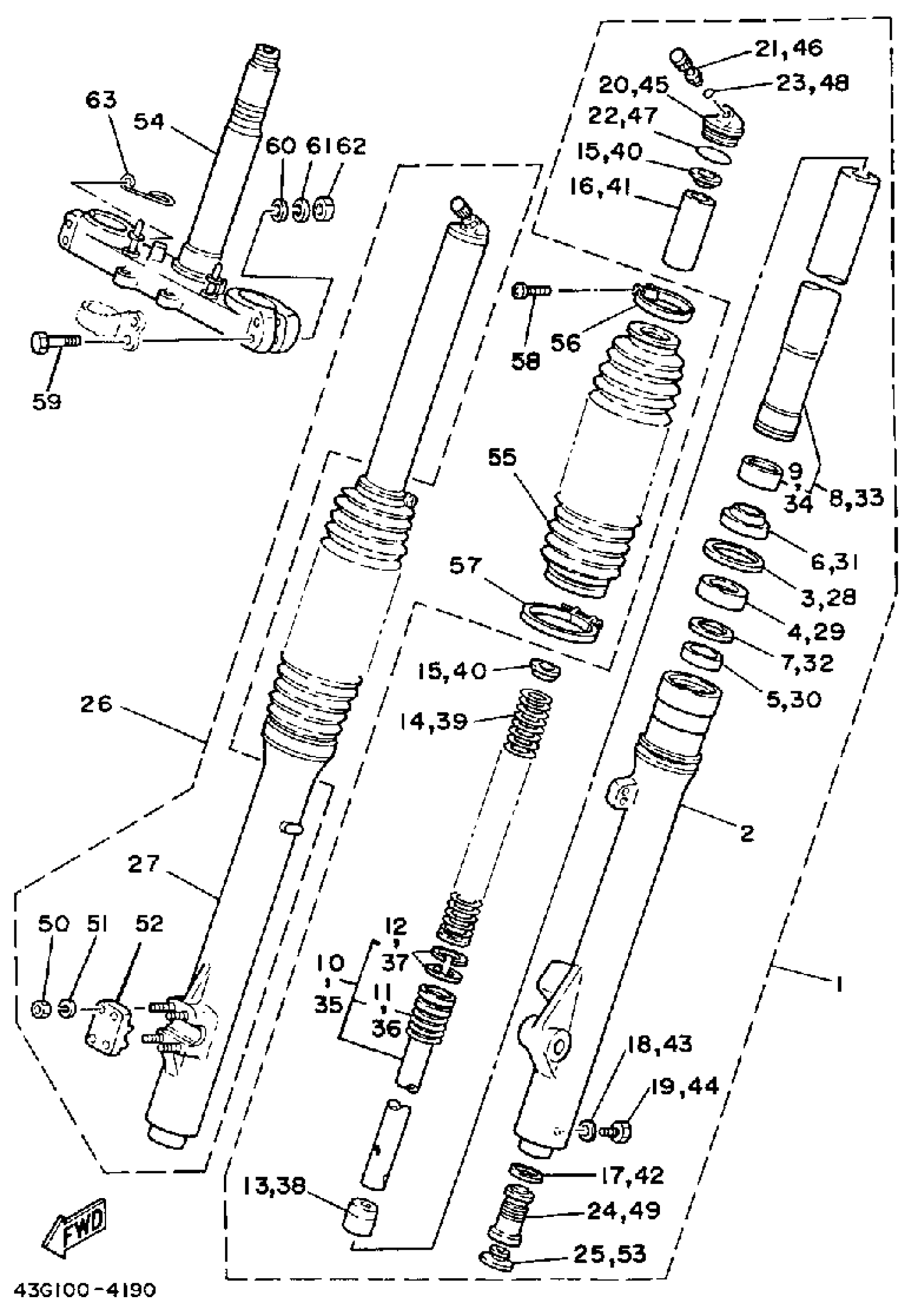

Find the part on the Front Fork diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha IT200 (IT200L) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(43G-23102-L0-00)

1
Out of stock

2

. TUBE, OUTER 1

43G-23126-L0-00

1
Out of stock

3

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

4

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

5

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

6

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

7

WASHER

4V4-23146-L0-00

1

$5.93

In stock

8

. INNER TUBE 1COMP 1

43M-23110-L0-00

1
Out of stock

9

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

10

. CYLINDER, FRTFRKCOMP, FRONT FORK

43G-23170-L0-00

1
Out of stock

11

.. SPRING, SUB

5X6-23152-L0-00

1
Out of stock

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

13

. SPINDLE, TAPER

23X-23173-L0-00

1
Out of stock

14

SPRING, FRTFRK SOFT

(43G-23141-10-00)

1
Out of stock

14

SPRING, FRTFRK HARD

(43G-23141-20-00)

1
Out of stock

14

. SPRING, FRTFRK STD (K=03)

43G-23141-L0-00

1
Out of stock

15

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

16

SPACER

(43G-23118-L0-00)

1
Out of stock

17

GASKET

23X-23158-L0-00

—

$3.83

In stock

18

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

19

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

20

BOLT,CAP

43M-23111-L0-00

1
Out of stock

21

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

22

O-RING

4V4-23188-L1-00

—

$4.77

In stock

23

O-RING

3J2-23147-00-00

—
Out of stock

24

VALVE

43G-2316A-L0-00

1
Out of stock

25

. PLUG

43M-2312G-L0-00

1
Out of stock

26

FRONT FORK ASSEMBLY R

(43G-23103-L0-00)

1
Out of stock

27

TUBE, OUTER 2

(43G-23136-L0-00)

1
Out of stock

28

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

29

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

30

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

31

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

32

WASHER

4V4-23146-L0-00

1

$5.93

In stock

33

. INNER TUBE 1COMP 1

43M-23110-L0-00

1
Out of stock

34

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

35

. CYLINDER, FRTFRKCOMP, FRONT FORK

43G-23170-L0-00

1
Out of stock

36

.. SPRING, SUB

5X6-23152-L0-00

1
Out of stock

37

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

38

. SPINDLE, TAPER

23X-23173-L0-00

1
Out of stock

39

SPRING, FRTFRK SOFT

(43G-23141-10-00)

1
Out of stock

39

SPRING, FRTFRK HARD

(43G-23141-20-00)

1
Out of stock

39

. SPRING, FRTFRK STD (K=03)

43G-23141-L0-00

1
Out of stock

40

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

41

SPACER

(43G-23118-L0-00)

1
Out of stock

42

GASKET

23X-23158-L0-00

—

$3.83

In stock

43

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

44

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

45

BOLT,CAP

43M-23111-L0-00

1
Out of stock

46

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

47

O-RING

4V4-23188-L1-00

—

$4.77

In stock

48

O-RING

3J2-23147-00-00

—
Out of stock

49

VALVE

43G-2316A-L0-00

1
Out of stock

50

NUT(6TA)

95317-06600-00

—

$2.69

In stock

51

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

52

HOLDER, AXLE

1LX-23167-L0-00

1
Out of stock

53

. PLUG

43M-2312G-L0-00

1
Out of stock

54

UNDER BRACKETCOMP.

43G-23340-L0-00

1
Out of stock

55

BOOT, FRONT FORK

39X-23191-00-00

1
Out of stock

56

BAND

43M-23192-L0-00

—
Out of stock

57

BAND

3LD-23489-00-00

—

$26.00

In stock

58

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

59

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

60

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

61

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

62

NUT(6L2)

95333-08600-00

—

$3.20

In stock

63

GUIDE, CABLE

4V5-23389-00-00

—

$34.42

In stock
