2022 Suzuki GSX1300RRQM2 Wiring Harness Diagram

← All diagrams

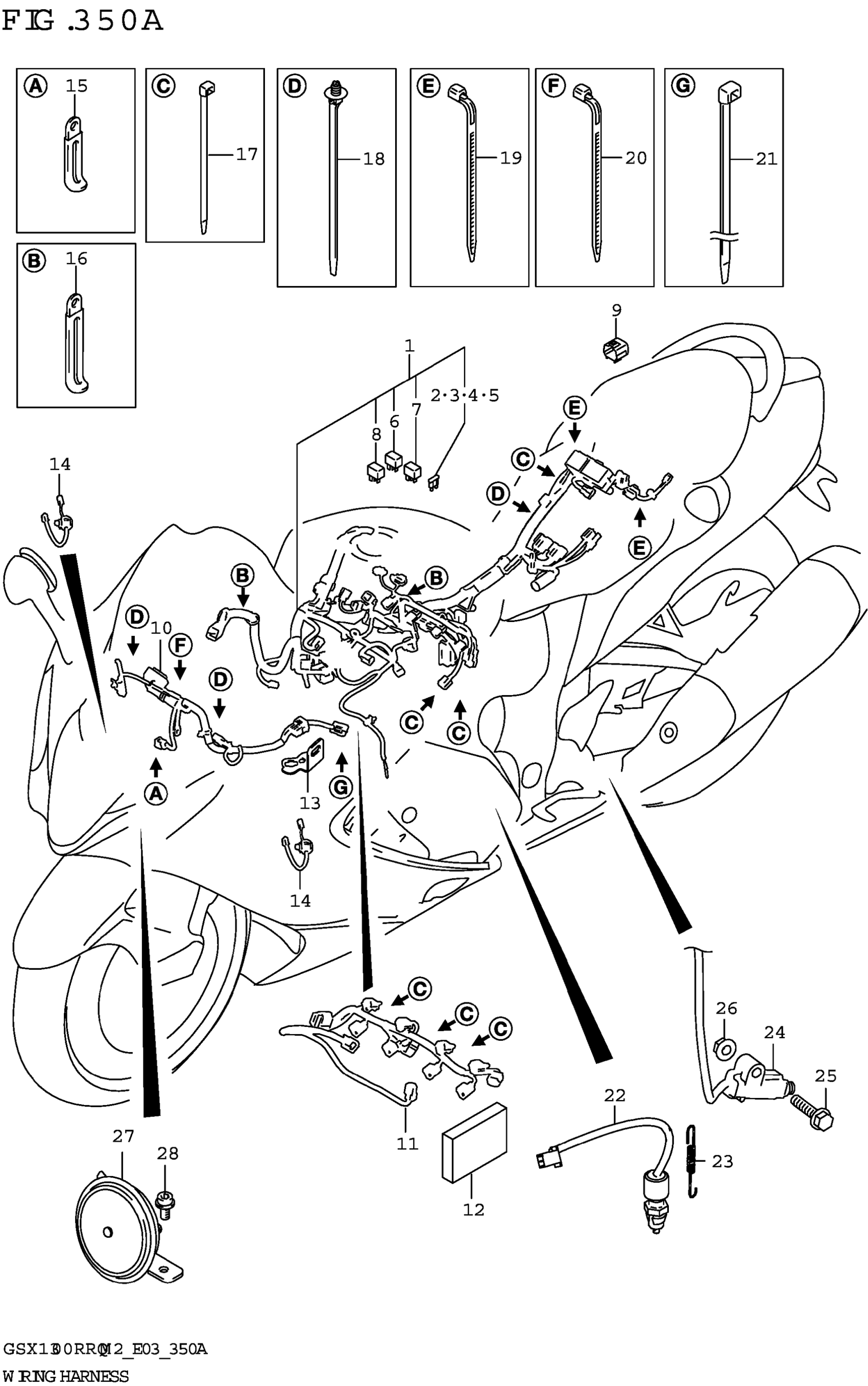

Find the part on the Wiring Harness diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX1300RRQM2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING

36610-10L10

1
Out of stock

2

.FUSE (7.5A)

09481-07504

1
Out of stock

3

.FUSE (10A)

09481-10504

1
Out of stock

4

.FUSE (15A)

09481-15504

1
Out of stock

5

.FUSE (30A)

09481-30504

1
Out of stock

6

.RELAY ASSY | FUEL PUMP

38860-76F01

1
Out of stock

7

.RELAY ASSY | FAN MOTOR

38860-76F01

1
Out of stock

8

.RELAY ASSY | SUB START

38860-76F01

1
Out of stock

9

CAP,OBD CONNECTOR

36654-28K00

1
Out of stock

10

HARNESS,WIRING NO.2

36620-10L00

1
Out of stock

11

HARNESS,WIRING NO.3

36630-10L00

1
Out of stock

12

CUSHION,HARNESS WIRING

36652-10L00

1
Out of stock

13

BRACKET,WIRING HARNESS

36672-10L00

1
Out of stock

14

WIRE, FAN MOTOR LEAD

36852-10L00

2
Out of stock

15

CLAMP (L:45)

09404-06429

1
Out of stock

16

CLAMP (L:95)

09407-11401

1
Out of stock

17

CLAMP (L:145)

09407-14407

6
Out of stock

18

CLAMP (L:170)

09407-17403

3
Out of stock

19

CLAMP (L:190)

09407-19401

2
Out of stock

20

CLAMP (L:210)

09407-21401

—
Out of stock

21

CLAMP

09407-38402

1
Out of stock

22

SWITCH ASSY,STOP LAMP

37740-10L00

1
Out of stock

23

SPRING

09443-06012

1
Out of stock

24

SWITCH ASSY,SIDE STAND This part replaces 37840-24F01.

37840-24F02

1
Out of stock

25

BOLT (8X35)

09103-08357

1
Out of stock

26

NUT

08316-1008B

1
Out of stock

27

HORN ASSY

38500-24F40

1
Out of stock

28

BOLT

07120-0612A

1
Out of stock
