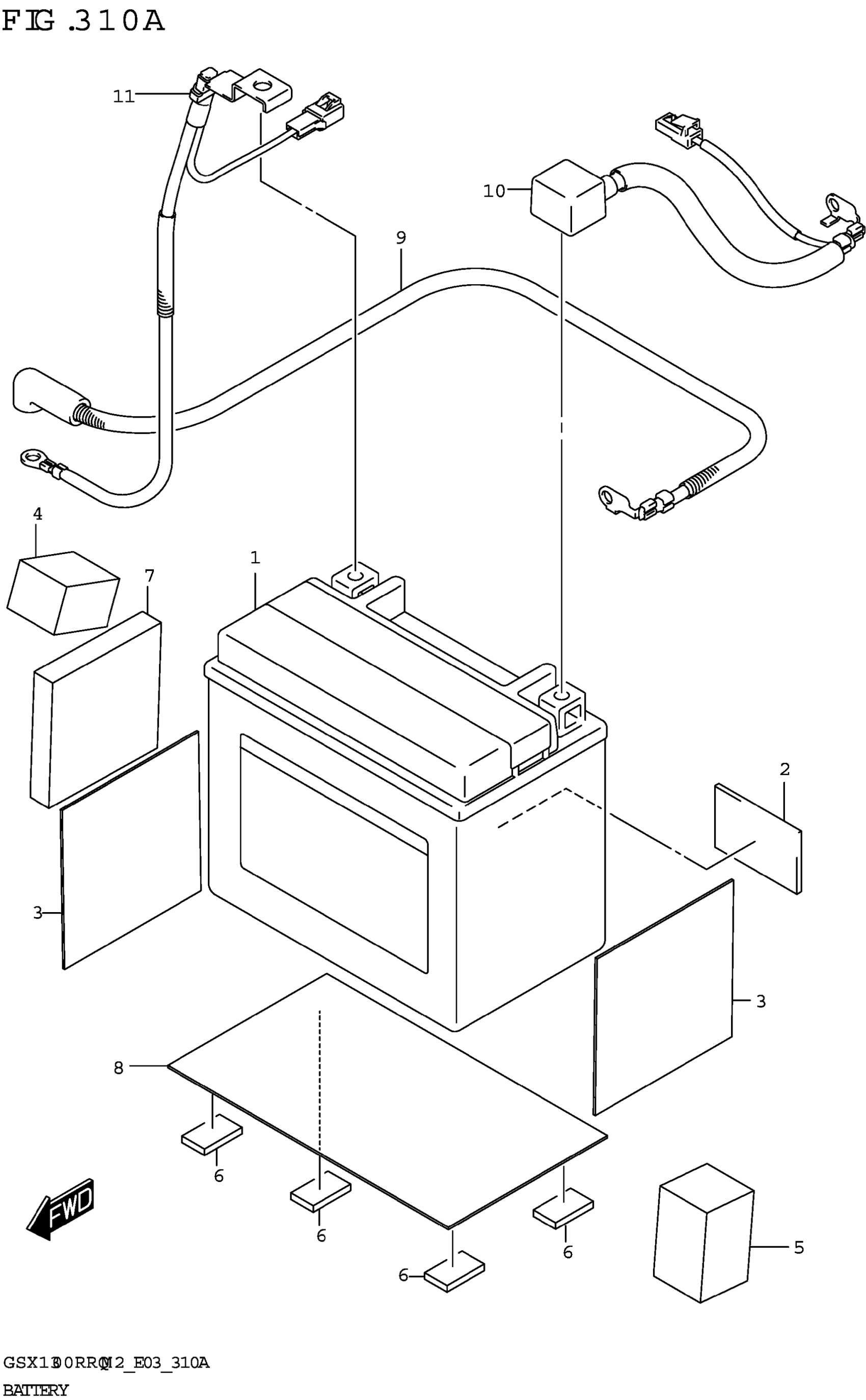

Find the part on the Battery diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX1300RRQM2 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (FTZ14S,12V/11.2 | H)

33620-31J01

1
Out of stock

2

CUSHION (30X50X3)

33652-36000

2

$2.87

In stock

3

PROTECTOR,BATTERY

33652-10L00

2
Out of stock

4

CUSHION,BATTERY

33652-10L10

1
Out of stock

5

CUSHION,BATTERY

33652-10L20

1
Out of stock

6

CUSHION This part replaces 33652-27G00.

44543-10G00

4
Out of stock

7

CUSHION,HIGH TENSION CORD (58 | 58X10)

33442-41F00

1
Out of stock

8

CUSHION,REAR FENDER FRONT

63113-15H01

1
Out of stock

9

WIRE,STARTER MOTOR LEAD

33810-10L00

1
Out of stock

10

WIRE,BATTERY PLUS LEAD

33820-10L00

1
Out of stock

11

WIRE,BATTERY MINUS LEAD

33860-10L00

1
Out of stock
