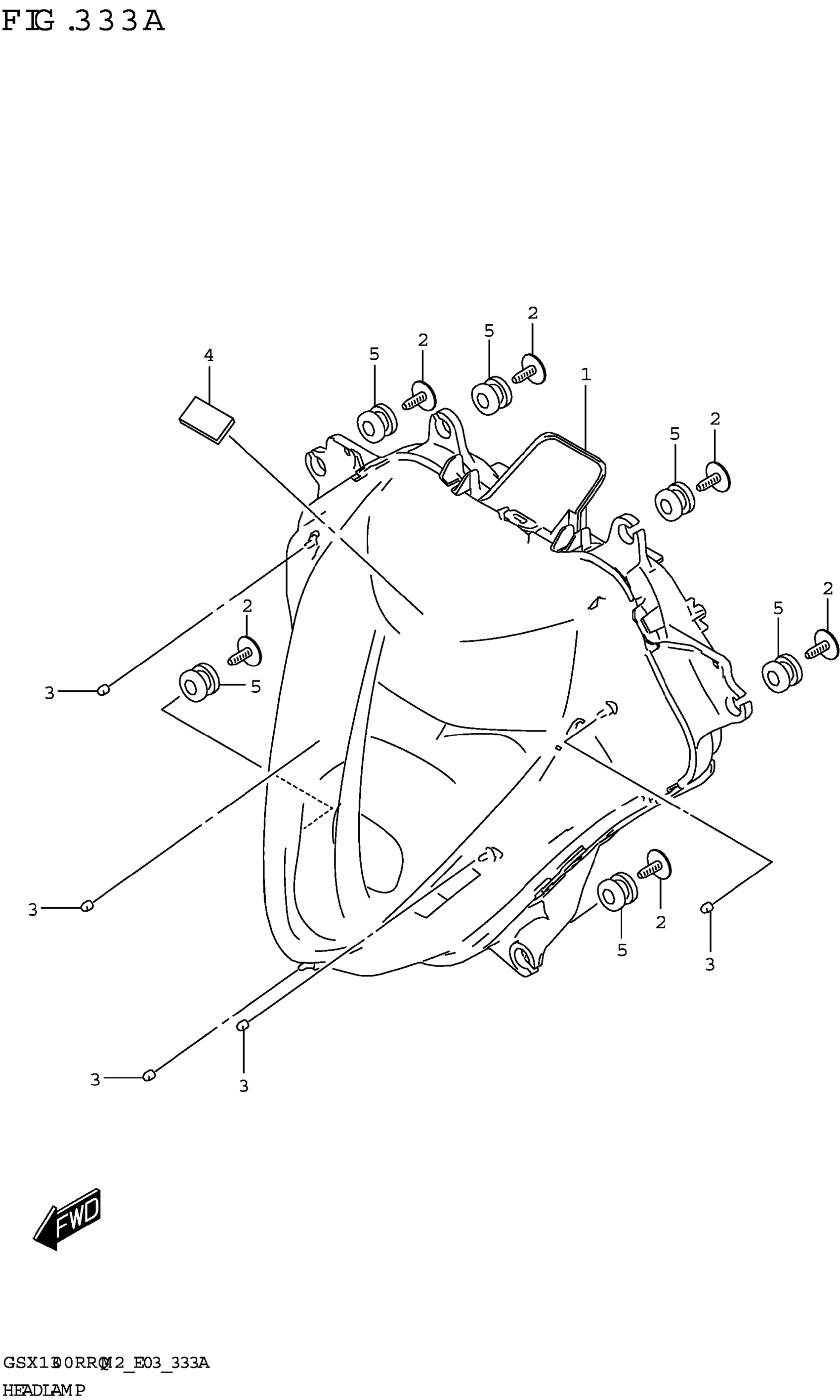

Find the part on the Headlamp diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki GSX1300RRQM2 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-10L00

1
Out of stock

2

SCREW (5X15)

09136-05062

6
Out of stock

3

CUSHION,FUEL TANK COVER

44294-43H11

5
Out of stock

4

FASTENER,COWLING (20X15X0.8)

44572-37H00

1
Out of stock

5

.CUSHION (9X18X14)

09320-09059

6
Out of stock
