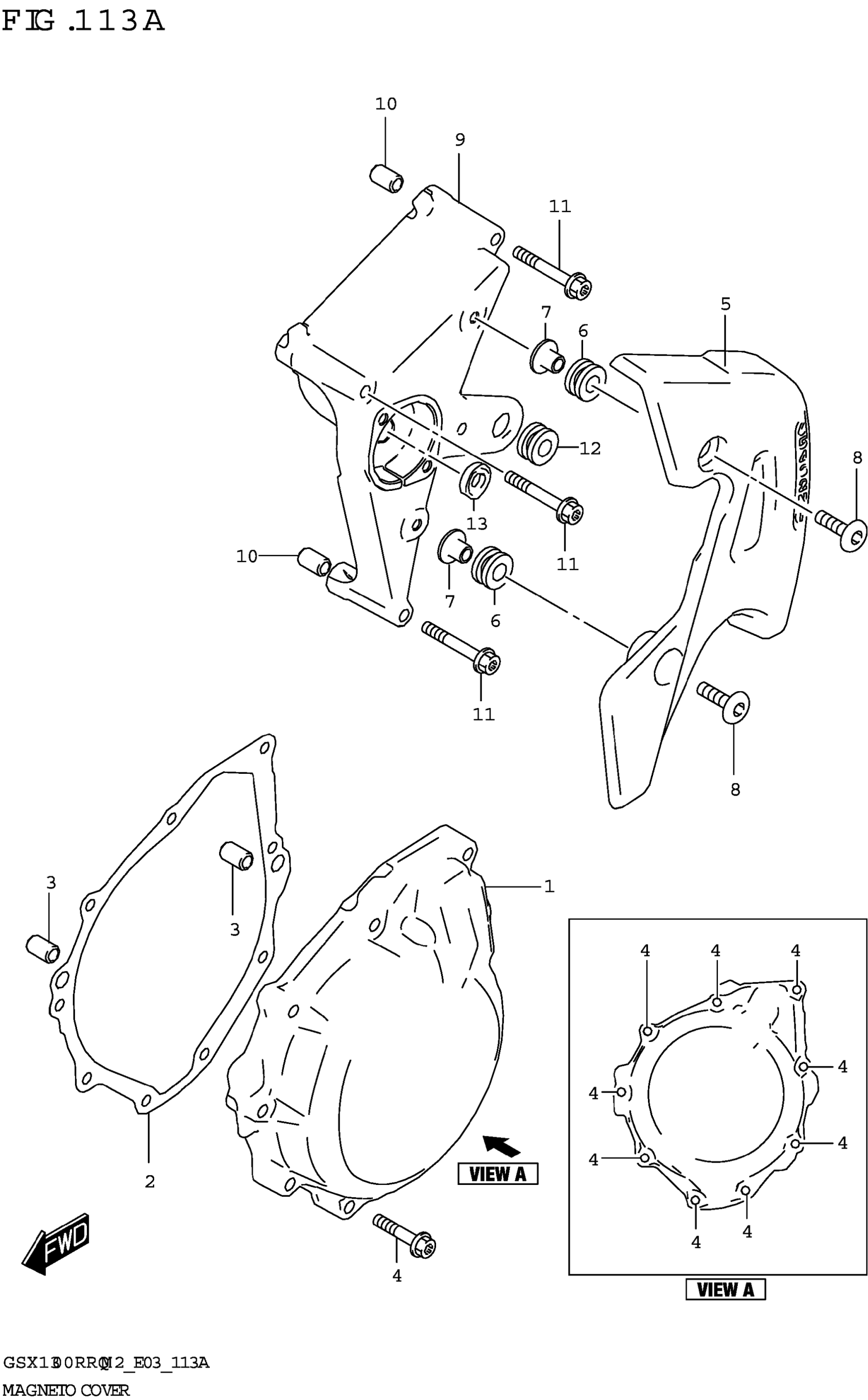

Suzuki GSX1300RRQM2 (2022) MAGNETO COVER Diagram

#

Description
Price

1

COVER,MAGNETO

11351-10L00

$98.85

2

.GASKET,MAGNETO COVER

11483-24F00

$10.76

3

PIN (8.5X18X2.3)

04211-09149

$1.70

4

BOLT (6X30)

09103-06529

$1.83

5

COVER,ENG SPROCKET

11361-10L00

$57.22

6

CUSHION (9X18X9.5)

09320-09016

$2.01

7

WASHER (6.3X17X1.6)

09169-06062

$2.57

8

SCREW (6X20)

09139-06063

$4.35

9

HOLDER,CL RELEASE

11371-10L00

$102.03

10

PIN (8.5X18X2.3)

04211-09149

$1.70

11

BOLT (L:65)

09103-06536

$3.30

12

CUSHION (8X26X7)

09320-08514

$2.68

13

SEAL,OIL (6X12X4)

09283-06003

$2.78
