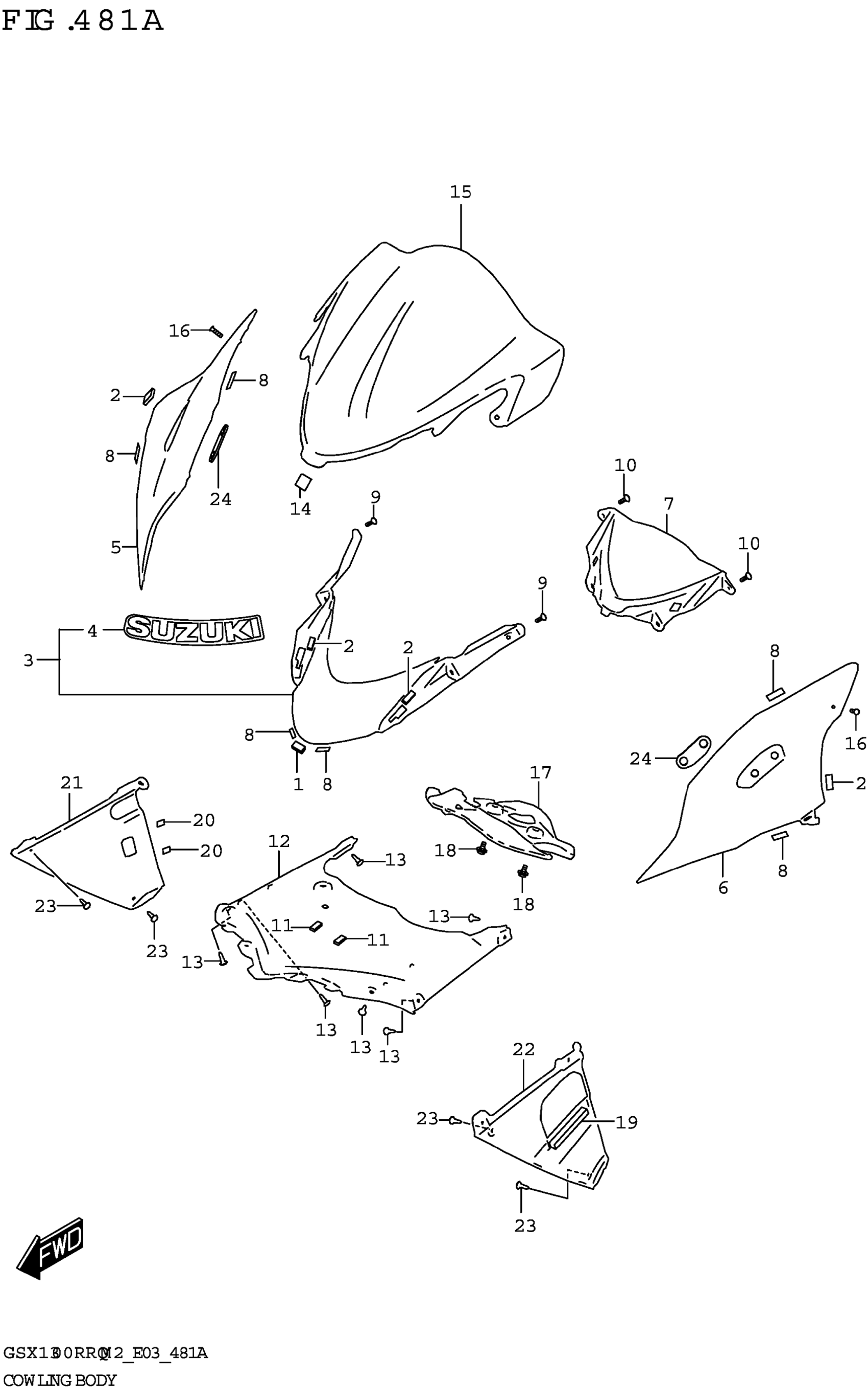

Suzuki GSX1300RRQM2 (2022) COWLING BODY (GSX1300RRQ) Diagram

#

Description
Price

1

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.41

2

PAD (8X20X2)

73415-70A00

$1.57

3

COWLING,BODY (BLACK)

94410-10L00-YVB

$171.72

4

.EMBLEM,SUZUKI (SILVER,BLACK)

68641-14F30-B7E

$9.07

5-1

COWLING,BODY,R (BLACK) | BODY COLOR:B5L

94412-10L00-YVB

$190.02

5-2

COWLING,BODY,R (WHITE) | BODY COLOR:B5N

94412-10L00-YUH

$190.02

6-1

COWLING,BODY,L (BLACK) | BODY COLOR:B5L

94413-10L00-YVB

$190.02

6-2

COWLING,BODY,L (WHITE) | BODY COLOR:B5N

94413-10L00-YUH

$190.02

7

PANEL,METER FRONT

94414-10L00

$38.18

8

TAPE (6X25X0.13)

94443-06G00

$3.11

9

SCREW

03541-0516A

$1.41

10

SCREW

03541-0516A

$1.41

11

PAD (8X20X2)

73415-70A00

$1.57

12

COVER,BODY COWL

94419-10L00

$36.30

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

14

.CUSHION (20X20X1)

47123-17K00

$4.09

15

WINDSCREEN

94611-10L00

$259.93

16

SCREW,WINDSCREEN FRONT

94631-17K00

$4.71

17

COVER,LWR BRACKET

94458-15H10

$19.68

18

BOLT (6X12)

09111-06107

$2.66

19

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$7.30

20

PAD (8X20X2)

73415-70A00

$1.57

21

COWLING,UNDER INNER,R

94461-10L00

$22.67

22

COWLING,UNDER INNER,L

94462-10L00

$22.67

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

24

CUSHION,BRACE COWLING

94576-10L00

$11.42
