Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-44G00

$96.24

2

.COVER

31861-38G00

$5.52

3

.FUSE (30A)

09481-30501

$2.42

4

SCREW (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY

32800-26J10

$216.67

6

BRACKET,RECTIFIER

94560-10L00

$24.60

7

SCREW

02162-0625B

$2.65

8

SENSOR ASSY,CAM POSITION

33220-01H01

$102.81

9

BOLT This part replaces 07130-0616A.

07130-0616B

$2.44

10

COIL ASSY,IGNITION

33410-10L00

$109.17

11

HARDWARE, FI CONTROL UNIT This part replaces 32910-10L00.

32910-48K00

$1,008.50

12

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.41

13

BAND

09462-00007

$3.82

14

BRACKET,RELAY

47423-10L00

$10.50

15

BOLT

01550-0616A

$2.01

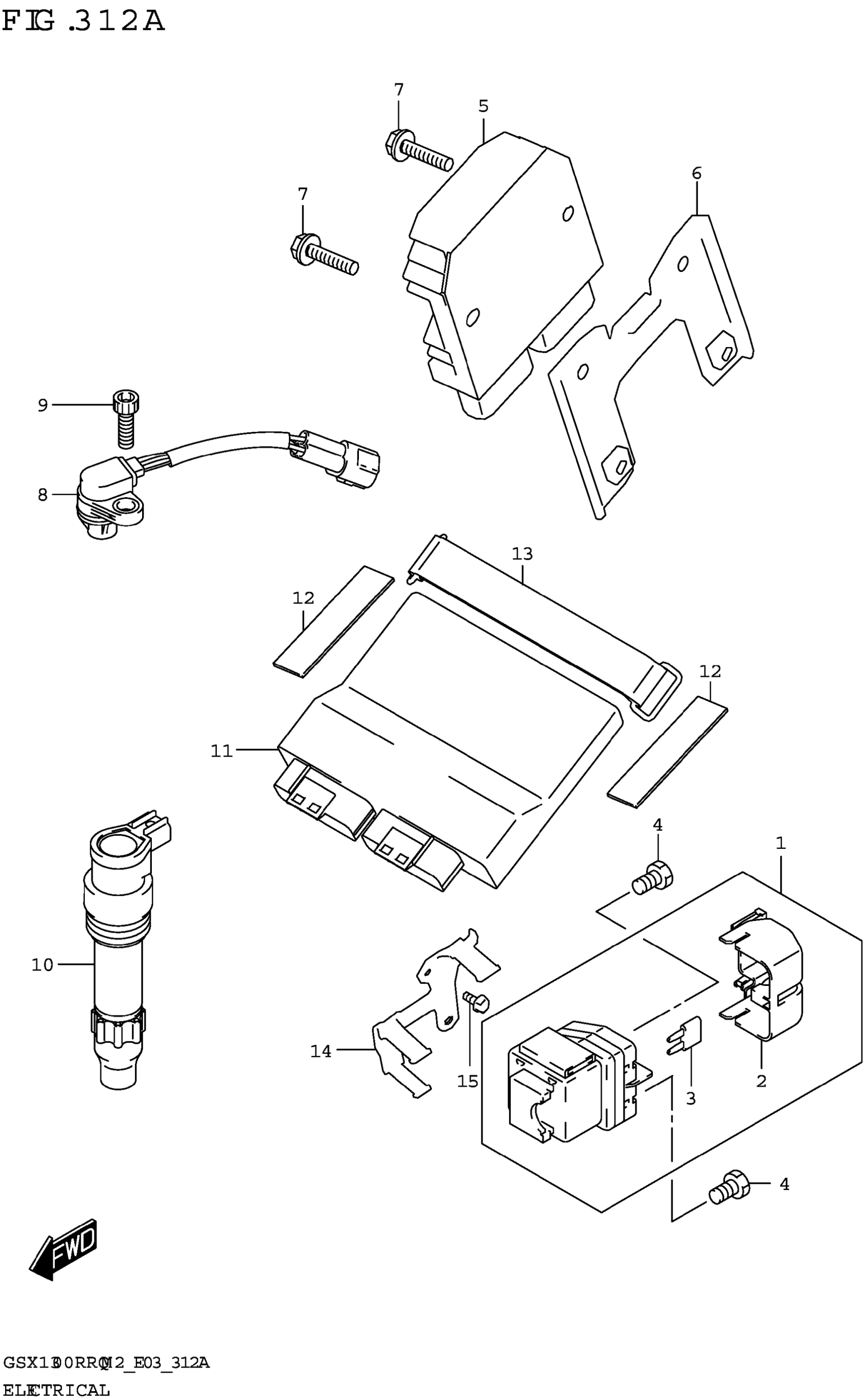

Suzuki GSX1300RRQM2 (2022) ELECTRICAL Diagram
