2022 Suzuki GSX1300RRQM2 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

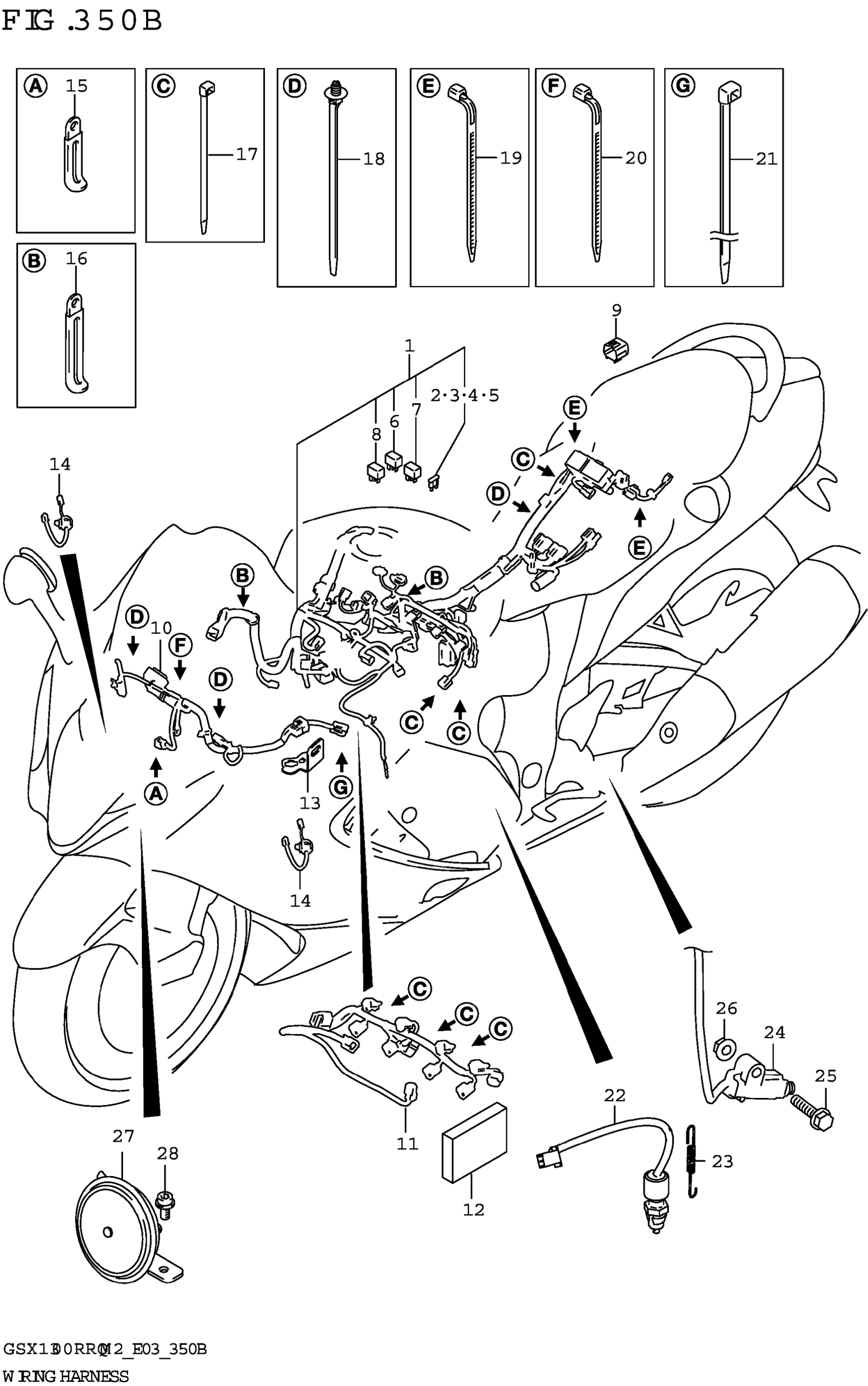

2022 Suzuki GSX1300RRQM2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING

36610-10L30

1

$1,023.87

In stock

2

.FUSE (7.5A)

09481-07504

1
Out of stock

3

.FUSE (10A)

09481-10504

1
Out of stock

4

.FUSE (15A)

09481-15504

1
Out of stock

5

.FUSE (30A)

09481-30504

1
Out of stock

6

.RELAY ASSY | FUEL PUMP

38860-76F01

1
Out of stock

7

.RELAY ASSY | FAN MOTOR

38860-76F01

1
Out of stock

8

.RELAY ASSY | SUB START

38860-76F01

1
Out of stock

9

CAP,OBD CONNECTOR

36654-28K00

1
Out of stock

10

HARNESS,WIRING NO.2

36620-10L00

1

$210.13

In stock

11

HARNESS,WIRING NO.3

36630-10L00

1

$216.67

In stock

12

1

$4.22

In stock

13

1

$8.28

In stock

14

WIRE, FAN MOTOR LEAD

36852-10L00

2

$34.67

In stock

15

CLAMP (L:45)

09404-06429

1
Out of stock

16

CLAMP (L:95)

09407-11401

1
Out of stock

17

CLAMP (L:145)

09407-14407

6
Out of stock

18

CLAMP (L:170)

09407-17403

3
Out of stock

19

CLAMP (L:190)

09407-19401

2
Out of stock

20

CLAMP (L:210)

09407-21401

—
Out of stock

21

CLAMP

09407-38402

1

$4.83

In stock

22

SWITCH ASSY,STOP LAMP

37740-10L00

1

$16.93

In stock

23

SPRING

09443-06012

1

$3.13

In stock

25

BOLT (8X35)

09103-08357

1

$4.53

In stock

26

NUT

08316-1008B

1

$2.85

In stock

27

HORN ASSY

38500-24F40

1

$43.27

In stock

28

BOLT

07120-0612A

1
Out of stock
